SDO HMI 2011-10-25 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.77 | 226.93 | 12.88 | 117.29 | 12.57 | 302.81 | 14.28 | 300.65 | 0.2796 | -99.6 | 252.3 | |
|
previous
or next observation for the same group /

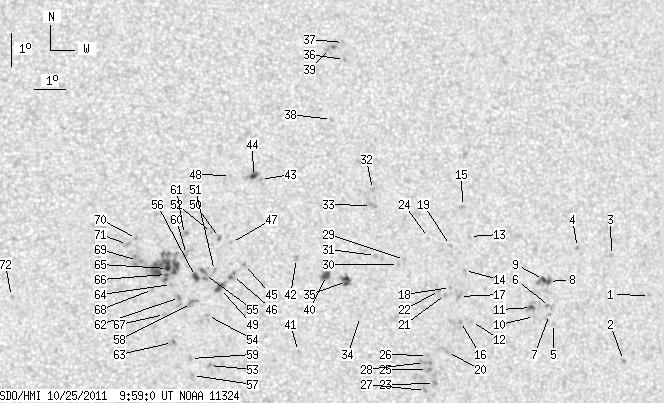

back to the solar disc SDO HMI 2011-10-25 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.67 | 11.53 | 314.40 | 25.88 | 285.87 | 0.4464 | -577.0 | -481.3 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 9.61 | 313.36 | 24.83 | 281.97 | 0.4251 | -917.0 | -757.9 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 12.77 | 313.24 | 24.72 | 289.25 | 0.4338 | -842.0 | -656.2 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 13.05 | 312.13 | 23.61 | 290.59 | 0.4185 | -812.0 | -690.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 10.80 | 311.13 | 22.61 | 285.82 | 0.3942 | -606.0 | -523.1 | |
| 0.00 | 3.13 | 0.00 | 1.69 | 11.31 | 311.04 | 22.52 | 287.14 | 0.3947 | -614.0 | -657.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | 11.07 | 311.02 | 22.50 | 286.56 | 0.3935 | -783.0 | -583.1 | |
| 2.00 | 9.82 | 1.08 | 5.29 | 12.06 | 311.08 | 22.55 | 288.96 | 0.3983 | -874.8 | -806.7 | |
| 2.17 | -8.00 | 1.17 | -8.00 | 12.13 | 310.92 | 22.39 | 289.23 | 0.3961 | -932.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.03 | 310.53 | 22.00 | 286.74 | 0.3857 | -807.0 | -621.1 | |
| 1.82 | 6.34 | 0.98 | 3.40 | 11.30 | 310.45 | 21.93 | 287.48 | 0.3856 | -1040.4 | -787.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 10.94 | 308.47 | 19.95 | 287.88 | 0.3535 | -753.0 | -633.2 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 13.50 | 308.61 | 20.08 | 294.51 | 0.3686 | -706.0 | -623.7 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 12.48 | 308.36 | 19.84 | 292.10 | 0.3592 | -879.0 | -667.8 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 14.41 | 308.46 | 19.94 | 296.94 | 0.3721 | -793.0 | -569.8 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 10.96 | 308.12 | 19.59 | 288.17 | 0.3480 | -909.0 | -748.0 | |
| 0.00 | 2.35 | 0.00 | 1.24 | 11.70 | 308.14 | 19.61 | 290.21 | 0.3518 | -862.0 | -716.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 11.98 | 307.87 | 19.34 | 291.21 | 0.3491 | -942.0 | -806.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 13.24 | 307.97 | 19.44 | 294.49 | 0.3576 | -756.0 | -658.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 10.04 | 307.64 | 19.11 | 285.91 | 0.3368 | -900.0 | -773.5 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 11.78 | 307.69 | 19.17 | 290.80 | 0.3453 | -927.0 | -764.7 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 11.90 | 307.51 | 18.98 | 291.31 | 0.3432 | -929.0 | -912.2 | |
| 0.00 | 2.35 | 0.00 | 1.23 | 9.13 | 307.17 | 18.65 | 283.50 | 0.3261 | -872.0 | -773.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 13.51 | 307.28 | 18.75 | 295.89 | 0.3490 | -809.0 | -667.8 | |
| 0.00 | 3.13 | 0.00 | 1.64 | 9.55 | 306.97 | 18.45 | 284.90 | 0.3243 | -857.0 | -818.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 9.97 | 307.00 | 18.47 | 286.15 | 0.3263 | -850.0 | -674.0 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 8.92 | 306.87 | 18.35 | 283.06 | 0.3207 | -951.0 | -736.7 | |
| 0.00 | 4.43 | 0.00 | 2.32 | 9.76 | 306.89 | 18.36 | 285.60 | 0.3238 | -917.0 | -817.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.86 | 306.45 | 17.93 | 295.05 | 0.3327 | -766.0 | -616.8 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 12.72 | 306.25 | 17.72 | 294.87 | 0.3288 | -818.0 | -552.3 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 13.01 | 305.53 | 17.01 | 296.54 | 0.3200 | -825.0 | -697.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 15.00 | 305.59 | 17.06 | 301.94 | 0.3355 | -844.0 | -699.4 | |
| 0.00 | 4.87 | 0.00 | 2.55 | 14.52 | 305.52 | 16.99 | 300.76 | 0.3307 | -613.0 | -536.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 11.19 | 304.94 | 16.41 | 291.76 | 0.2998 | 815.0 | 669.2 | |
| 4.78 | 6.87 | 2.48 | 3.56 | 12.25 | 304.56 | 16.03 | 295.52 | 0.3004 | -981.3 | -835.0 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 18.98 | 305.04 | 16.52 | 312.26 | 0.3649 | -901.0 | -774.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 19.50 | 305.07 | 16.54 | 313.33 | 0.3705 | -580.0 | -536.1 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 17.16 | 304.45 | 15.92 | 309.11 | 0.3393 | -760.0 | -563.5 | |
| 0.00 | 3.65 | 0.00 | 1.94 | 19.33 | 304.62 | 16.09 | 313.71 | 0.3635 | -565.0 | -718.1 | |
| 4.61 | 5.65 | 2.38 | 2.92 | 12.44 | 303.93 | 15.41 | 296.95 | 0.2924 | -1078.7 | -897.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 10.19 | 302.93 | 14.41 | 290.67 | 0.2629 | 808.0 | 672.8 | |
| 0.00 | 3.04 | 0.00 | 1.57 | 12.98 | 303.02 | 14.49 | 300.00 | 0.2829 | 66.0 | 229.0 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 15.38 | 302.03 | 13.50 | 308.93 | 0.2907 | 766.0 | 602.3 | |
| 2.09 | 6.78 | 1.08 | 3.50 | 15.48 | 301.81 | 13.29 | 309.63 | 0.2889 | 939.2 | 711.1 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 12.83 | 301.37 | 12.85 | 302.41 | 0.2580 | 814.0 | 547.6 | |
| 0.00 | 3.22 | 0.00 | 1.64 | 12.51 | 300.98 | 12.46 | 302.07 | 0.2496 | 719.0 | 707.0 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 13.50 | 301.00 | 12.48 | 305.37 | 0.2588 | 696.0 | 484.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 15.52 | 301.09 | 12.56 | 311.28 | 0.2801 | 785.0 | 624.3 | |
| 0.87 | 6.87 | 0.44 | 3.50 | 12.12 | 300.59 | 12.06 | 301.49 | 0.2407 | 990.1 | 863.1 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 13.66 | 300.63 | 12.11 | 306.66 | 0.2552 | 906.0 | 716.6 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 12.67 | 300.43 | 11.90 | 303.77 | 0.2432 | 720.0 | 607.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 13.81 | 300.39 | 11.86 | 307.70 | 0.2535 | 886.0 | 666.4 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 9.82 | 300.15 | 11.63 | 293.20 | 0.2171 | 1042.0 | 781.8 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 11.32 | 300.15 | 11.62 | 299.36 | 0.2277 | 892.0 | 667.8 | |
| 0.00 | 6.08 | 0.00 | 3.10 | 12.55 | 300.11 | 11.58 | 304.05 | 0.2376 | 724.0 | 829.3 | |
| 3.04 | 4.43 | 1.55 | 2.26 | 12.50 | 299.83 | 11.30 | 304.48 | 0.2332 | 1084.9 | 827.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 9.53 | 299.62 | 11.09 | 292.84 | 0.2069 | 921.0 | 786.3 | |
| 0.00 | 6.00 | 0.00 | 3.05 | 11.69 | 299.67 | 11.14 | 301.81 | 0.2237 | 771.0 | 701.8 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 10.04 | 299.57 | 11.05 | 295.19 | 0.2095 | 892.0 | 725.3 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 13.16 | 299.58 | 11.05 | 307.43 | 0.2361 | 839.0 | 787.1 | |
| 0.00 | 3.74 | 0.00 | 1.91 | 13.77 | 299.54 | 11.02 | 309.55 | 0.2418 | 850.0 | 745.2 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 11.87 | 299.30 | 10.78 | 303.36 | 0.2201 | 912.0 | 829.3 | |
| 0.00 | 2.87 | 0.00 | 1.45 | 10.53 | 299.04 | 10.51 | 298.43 | 0.2049 | 961.0 | 851.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.27 | 299.07 | 10.55 | 305.43 | 0.2205 | 1009.0 | 766.2 | |
| 2.35 | 55.36 | 1.19 | 28.12 | 12.75 | 298.97 | 10.44 | 307.49 | 0.2238 | 1274.7 | 911.0 | |
| 1.04 | -65.00 | 0.53 | -65.00 | 12.57 | 298.93 | 10.40 | 306.93 | 0.2215 | 1045.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 11.37 | 298.82 | 10.29 | 302.51 | 0.2087 | 956.0 | 633.4 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 12.13 | 298.48 | 9.95 | 306.42 | 0.2109 | 761.0 | 577.5 | |
| 0.00 | 9.04 | 0.00 | 4.58 | 13.01 | 298.04 | 9.52 | 310.93 | 0.2143 | 742.0 | 799.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 13.67 | 298.04 | 9.52 | 313.26 | 0.2216 | 912.0 | 702.0 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 13.49 | 297.75 | 9.23 | 313.51 | 0.2160 | 1072.0 | 741.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.97 | 294.13 | 5.61 | 321.68 | 0.1549 | -687.0 | -569.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
