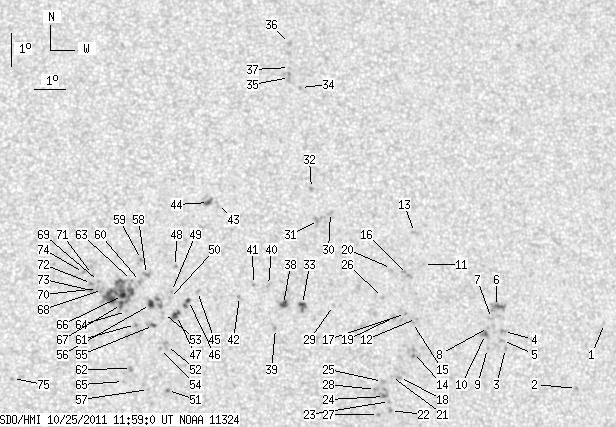

SDO HMI 2011-10-25 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.41 | 221.53 | 11.56 | 115.39 | 12.57 | 303.24 | 15.81 | 298.10 | 0.3019 | -26.5 | 81.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.68 | 11.48 | 314.49 | 27.06 | 285.26 | 0.4640 | -698.0 | -495.1 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 9.57 | 313.36 | 25.93 | 281.51 | 0.4419 | -785.0 | -577.6 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 10.85 | 311.10 | 23.67 | 285.40 | 0.4107 | -673.0 | -523.9 | |
| 0.00 | 2.43 | 0.00 | 1.32 | 11.36 | 311.08 | 23.65 | 286.63 | 0.4122 | -732.0 | -663.0 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 11.09 | 311.02 | 23.59 | 286.02 | 0.4103 | -765.0 | -628.4 | |
| 0.00 | 9.73 | 0.00 | 5.29 | 12.12 | 310.91 | 23.48 | 288.51 | 0.4126 | -1159.0 | -822.1 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 11.76 | 310.71 | 23.28 | 287.79 | 0.4082 | -623.0 | -625.6 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 11.50 | 310.59 | 23.16 | 287.23 | 0.4053 | -849.0 | -684.1 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 10.87 | 310.51 | 23.08 | 285.75 | 0.4017 | -666.0 | -575.2 | |
| 0.43 | 4.17 | 0.23 | 2.25 | 11.29 | 310.47 | 23.04 | 286.80 | 0.4027 | -1113.0 | -894.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 13.46 | 308.62 | 21.19 | 293.42 | 0.3848 | -709.0 | -632.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 11.84 | 308.26 | 20.83 | 289.64 | 0.3711 | -789.0 | -583.1 | |
| 0.00 | 2.61 | 0.00 | 1.40 | 14.43 | 308.42 | 20.99 | 295.96 | 0.3875 | -808.0 | -578.6 | |
| 0.00 | 6.43 | 0.00 | 3.42 | 10.83 | 308.08 | 20.65 | 287.09 | 0.3640 | -886.0 | -738.1 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 11.73 | 308.12 | 20.69 | 289.44 | 0.3684 | -824.0 | -713.1 | |
| 0.00 | 4.17 | 0.00 | 2.23 | 13.17 | 308.07 | 20.64 | 293.19 | 0.3751 | -686.0 | -650.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.00 | 307.91 | 20.48 | 290.33 | 0.3666 | -867.0 | -705.9 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 10.09 | 307.58 | 20.15 | 285.41 | 0.3533 | -991.0 | -863.2 | |
| 0.00 | 2.78 | 0.00 | 1.48 | 11.90 | 307.51 | 20.08 | 290.36 | 0.3600 | -1015.0 | -820.0 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 13.37 | 307.57 | 20.14 | 294.15 | 0.3687 | -610.0 | -698.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 10.13 | 307.32 | 19.89 | 285.68 | 0.3494 | -807.0 | -564.5 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 9.12 | 307.23 | 19.80 | 282.86 | 0.3445 | -983.0 | -829.3 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 9.39 | 307.21 | 19.78 | 283.64 | 0.3451 | -815.0 | -697.8 | |
| 1.22 | 6.52 | 0.64 | 3.43 | 9.54 | 307.06 | 19.63 | 284.16 | 0.3432 | -883.8 | -786.9 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 9.99 | 307.02 | 19.59 | 285.47 | 0.3442 | -848.0 | -699.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.51 | 307.20 | 19.77 | 292.25 | 0.3584 | -954.0 | -623.6 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.01 | 306.84 | 19.41 | 282.75 | 0.3380 | -1020.0 | -869.2 | |
| 0.00 | 2.95 | 0.00 | 1.55 | 9.76 | 306.78 | 19.35 | 284.96 | 0.3396 | -957.0 | -772.3 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 12.31 | 305.61 | 18.18 | 293.25 | 0.3332 | 714.0 | 490.2 | |
| 0.00 | 2.87 | 0.00 | 1.52 | 15.11 | 305.74 | 18.31 | 300.60 | 0.3538 | -691.0 | -561.9 | |
| 0.00 | 5.47 | 0.00 | 2.89 | 14.88 | 305.33 | 17.90 | 300.53 | 0.3463 | -888.0 | -763.2 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 15.86 | 305.18 | 17.75 | 303.18 | 0.3520 | -835.0 | -641.1 | |
| 1.91 | 5.13 | 1.00 | 2.68 | 12.37 | 304.62 | 17.19 | 294.49 | 0.3186 | -894.7 | -925.3 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 18.95 | 305.13 | 17.70 | 310.35 | 0.3790 | -896.0 | -633.0 | |
| 0.00 | 3.47 | 0.00 | 1.86 | 19.26 | 304.80 | 17.37 | 311.52 | 0.3781 | -806.0 | -730.0 | |
| 0.00 | 2.52 | 0.00 | 1.35 | 20.31 | 304.92 | 17.49 | 313.47 | 0.3901 | -812.0 | -626.8 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 19.57 | 304.84 | 17.41 | 312.10 | 0.3816 | -674.0 | -543.3 | |
| 4.00 | 4.60 | 2.08 | 2.40 | 12.38 | 304.01 | 16.58 | 295.25 | 0.3096 | -1023.6 | -950.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.67 | 303.71 | 16.28 | 293.43 | 0.3006 | -814.0 | -703.9 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 12.96 | 303.57 | 16.14 | 297.55 | 0.3070 | -774.0 | -631.1 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 13.01 | 303.10 | 15.67 | 298.33 | 0.3003 | 522.0 | 314.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 12.65 | 302.63 | 15.20 | 297.92 | 0.2909 | 843.0 | 655.9 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 15.44 | 302.12 | 14.69 | 306.89 | 0.3070 | 617.0 | 484.6 | |
| 2.08 | 4.26 | 1.08 | 2.21 | 15.51 | 301.84 | 14.41 | 307.58 | 0.3039 | 883.7 | 742.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 12.83 | 301.32 | 13.89 | 300.57 | 0.2730 | 690.0 | 527.5 | |
| 1.39 | 4.00 | 0.71 | 2.05 | 12.57 | 301.02 | 13.59 | 300.21 | 0.2666 | 714.5 | 744.1 | |
| 3.39 | 5.30 | 1.74 | 2.72 | 12.13 | 300.62 | 13.19 | 299.40 | 0.2572 | 1006.3 | 722.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 13.60 | 300.67 | 13.24 | 304.19 | 0.2703 | 998.0 | 700.5 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 12.85 | 300.50 | 13.07 | 302.08 | 0.2614 | 716.0 | 539.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 12.64 | 300.43 | 13.00 | 301.52 | 0.2586 | 694.0 | 519.6 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 9.89 | 300.24 | 12.81 | 291.66 | 0.2361 | 1068.0 | 876.3 | |
| 0.00 | 3.91 | 0.00 | 2.00 | 11.23 | 300.26 | 12.83 | 296.81 | 0.2452 | 562.0 | 585.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 12.19 | 300.22 | 12.79 | 300.37 | 0.2519 | 828.0 | 690.1 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.15 | 300.07 | 12.64 | 296.82 | 0.2417 | 864.0 | 665.2 | |
| 0.52 | 4.26 | 0.27 | 2.17 | 11.84 | 299.89 | 12.46 | 299.72 | 0.2442 | 870.0 | 640.4 | |
| 3.04 | 11.55 | 1.55 | 5.91 | 12.47 | 299.82 | 12.39 | 302.10 | 0.2485 | 1052.8 | 722.6 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 9.93 | 299.65 | 12.22 | 292.70 | 0.2271 | 869.0 | 719.8 | |
| 0.00 | 3.47 | 0.00 | 1.78 | 13.38 | 299.74 | 12.31 | 305.33 | 0.2555 | 899.0 | 713.4 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 13.83 | 299.61 | 12.18 | 307.08 | 0.2580 | 827.0 | 721.1 | |
| 0.00 | 2.95 | 0.00 | 1.51 | 13.17 | 299.54 | 12.12 | 305.06 | 0.2508 | 878.0 | 650.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 11.88 | 299.33 | 11.90 | 300.96 | 0.2364 | 986.0 | 838.1 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 10.56 | 299.15 | 11.72 | 296.18 | 0.2235 | 1035.0 | 870.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 13.20 | 299.27 | 11.84 | 305.78 | 0.2473 | 702.0 | 583.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 12.27 | 299.07 | 11.64 | 302.96 | 0.2360 | 875.0 | 658.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 10.18 | 298.89 | 11.46 | 295.06 | 0.2168 | 872.0 | 649.7 | |
| 2.43 | 47.52 | 1.24 | 24.23 | 12.76 | 298.96 | 11.53 | 304.92 | 0.2389 | 1283.6 | 934.6 | |
| 2.00 | -66.00 | 1.02 | -66.00 | 12.49 | 298.92 | 11.49 | 304.05 | 0.2358 | 1054.7 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 12.95 | 298.35 | 10.92 | 307.03 | 0.2323 | 894.0 | 798.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 13.19 | 298.23 | 10.80 | 308.16 | 0.2332 | 950.0 | 747.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 12.98 | 298.19 | 10.76 | 307.52 | 0.2305 | 893.0 | 746.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.40 | 298.06 | 10.63 | 309.34 | 0.2330 | 933.0 | 690.3 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 13.13 | 298.01 | 10.58 | 308.52 | 0.2297 | 1060.0 | 842.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 12.92 | 298.00 | 10.57 | 307.79 | 0.2274 | 941.0 | 819.1 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 13.47 | 297.78 | 10.35 | 310.28 | 0.2301 | 1047.0 | 807.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.32 | 295.48 | 8.05 | 304.01 | 0.1670 | -784.0 | -571.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
