SDO HMI 2011-10-25 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.83 | 257.15 | 18.73 | 131.74 | 16.14 | 278.56 | -8.87 | 280.57 | 0.2503 | -78.5 | -41.3 | |
|
previous
or next observation for the same group /

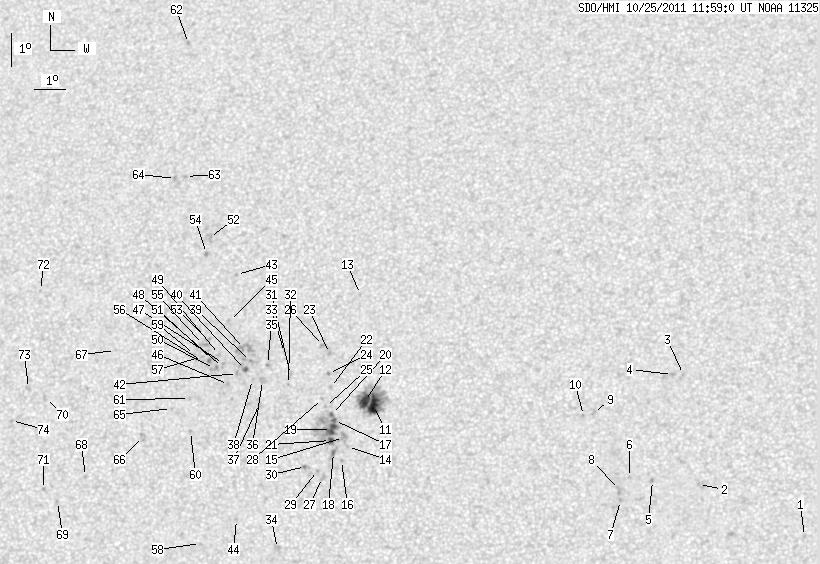

back to the solar disc SDO HMI 2011-10-25 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.02 | 293.65 | 6.23 | 319.02 | 0.1625 | -739.0 | -537.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.60 | 290.43 | 3.00 | 341.14 | 0.1583 | -873.0 | -666.4 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 16.94 | 290.01 | 2.58 | 348.19 | 0.2118 | -607.0 | -527.6 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 16.94 | 289.67 | 2.24 | 349.72 | 0.2107 | -926.0 | -659.3 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.73 | 289.02 | 1.59 | 349.87 | 0.1543 | -942.0 | -822.3 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.82 | 288.32 | 0.89 | 354.37 | 0.1542 | -860.0 | -620.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 13.13 | 288.04 | 0.61 | 355.78 | 0.1418 | -938.0 | -760.4 | |
| 0.00 | 4.34 | 0.00 | 2.18 | 13.46 | 288.01 | 0.58 | 356.15 | 0.1475 | -798.0 | -736.4 | |
| 0.00 | 2.78 | 0.00 | 1.40 | 15.79 | 287.21 | -0.22 | 1.12 | 0.1875 | -716.0 | -593.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 15.69 | 286.90 | -0.53 | 2.74 | 0.1861 | -838.0 | -714.5 | |
| 11.90 | 65.85 | 6.05 | 33.49 | 15.96 | 280.38 | -7.05 | 31.83 | 0.2249 | -1257.7 | -540.6 | |
| 9.21 | -11.00 | 4.68 | -11.00 | 16.08 | 280.09 | -7.34 | 32.55 | 0.2292 | -1029.5 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 19.35 | 279.83 | -7.60 | 26.72 | 0.2789 | -668.0 | -479.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 14.71 | 279.61 | -7.82 | 37.92 | 0.2151 | -925.0 | -732.3 | |
| 0.00 | 7.21 | 0.00 | 3.66 | 14.98 | 279.48 | -7.95 | 37.60 | 0.2201 | -836.0 | -637.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 14.29 | 279.44 | -7.99 | 39.81 | 0.2114 | -896.0 | -700.9 | |
| 0.78 | 47.17 | 0.40 | 24.00 | 15.49 | 279.18 | -8.25 | 37.18 | 0.2300 | -897.3 | -433.8 | |
| 2.00 | 5.39 | 1.01 | 2.73 | 14.52 | 279.18 | -8.25 | 39.95 | 0.2172 | -855.7 | -626.9 | |
| 6.60 | -17.00 | 3.36 | -17.00 | 15.22 | 279.09 | -8.34 | 38.21 | 0.2272 | -1014.8 | 999999 | |
| 1.48 | -17.00 | 0.75 | -17.00 | 15.67 | 279.07 | -8.36 | 37.02 | 0.2334 | -711.4 | 999999 | |
| 3.21 | -17.00 | 1.63 | -17.00 | 14.89 | 279.07 | -8.36 | 39.23 | 0.2231 | -1099.9 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 16.49 | 279.01 | -8.42 | 35.13 | 0.2451 | -925.0 | -698.5 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 17.53 | 278.93 | -8.50 | 32.98 | 0.2602 | -971.0 | -805.0 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 16.92 | 278.93 | -8.50 | 34.37 | 0.2517 | -896.0 | -671.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 15.91 | 278.88 | -8.55 | 37.02 | 0.2387 | -527.0 | -382.5 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 17.77 | 278.73 | -8.70 | 33.05 | 0.2654 | -879.0 | -683.1 | |
| 0.00 | 3.13 | 0.00 | 1.58 | 13.77 | 278.87 | -8.56 | 43.43 | 0.2113 | -701.0 | -629.7 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.16 | 278.77 | -8.66 | 36.72 | 0.2429 | -750.0 | -527.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.97 | 278.71 | -8.72 | 43.26 | 0.2158 | -890.0 | -633.8 | |
| 0.00 | 3.04 | 0.00 | 1.54 | 14.09 | 278.33 | -9.10 | 44.07 | 0.2216 | -866.0 | -735.0 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 16.87 | 277.73 | -9.70 | 38.01 | 0.2631 | -508.0 | -322.6 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 16.57 | 277.68 | -9.75 | 38.90 | 0.2596 | -572.0 | -400.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 17.54 | 277.50 | -9.93 | 37.04 | 0.2741 | 637.0 | 469.4 | |
| 0.00 | 4.00 | 0.00 | 2.02 | 11.61 | 277.55 | -9.88 | 55.41 | 0.2050 | 736.0 | 661.2 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 17.17 | 276.99 | -10.44 | 39.31 | 0.2746 | 914.0 | 631.1 | |
| 0.00 | 4.52 | 0.00 | 2.32 | 16.68 | 276.85 | -10.57 | 40.86 | 0.2699 | 570.0 | 536.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 15.98 | 276.80 | -10.63 | 42.84 | 0.2620 | 827.0 | 607.9 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.70 | 276.54 | -10.89 | 41.62 | 0.2738 | 868.0 | 734.4 | |
| 0.00 | 5.56 | 0.00 | 2.87 | 17.25 | 276.44 | -10.99 | 40.51 | 0.2815 | 1078.0 | 783.8 | |
| 1.65 | 4.43 | 0.85 | 2.29 | 17.00 | 276.30 | -11.13 | 41.47 | 0.2801 | 1001.5 | 806.7 | |
| 0.00 | 11.12 | 0.00 | 5.75 | 17.64 | 276.23 | -11.20 | 40.10 | 0.2887 | 514.0 | 864.0 | |
| 0.00 | 2.26 | 0.00 | 1.17 | 16.88 | 276.05 | -11.38 | 42.39 | 0.2813 | 861.0 | 749.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 19.91 | 275.81 | -11.62 | 36.24 | 0.3217 | 818.0 | 617.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 12.46 | 276.25 | -11.18 | 55.33 | 0.2312 | 965.0 | 765.4 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 18.49 | 275.69 | -11.74 | 39.46 | 0.3050 | 619.0 | 492.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 16.54 | 275.79 | -11.64 | 43.89 | 0.2804 | 907.0 | 655.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.17 | 275.59 | -11.84 | 42.76 | 0.2901 | 1072.0 | 893.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 17.05 | 275.56 | -11.87 | 43.12 | 0.2890 | 912.0 | 729.4 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 17.44 | 275.44 | -11.99 | 42.44 | 0.2950 | 778.0 | 609.7 | |
| 0.00 | 4.08 | 0.00 | 2.11 | 17.02 | 275.31 | -12.12 | 43.79 | 0.2915 | 871.0 | 799.5 | |
| 0.00 | 3.47 | 0.00 | 1.80 | 17.29 | 275.20 | -12.23 | 43.38 | 0.2959 | 756.0 | 822.5 | |
| 0.00 | 5.65 | 0.00 | 2.98 | 21.03 | 274.84 | -12.59 | 36.23 | 0.3457 | 817.0 | 628.8 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 17.90 | 275.03 | -12.40 | 42.31 | 0.3050 | 770.0 | 627.1 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 20.54 | 274.79 | -12.64 | 37.27 | 0.3399 | 1044.0 | 874.0 | |
| 0.00 | 3.04 | 0.00 | 1.58 | 17.74 | 274.91 | -12.52 | 42.93 | 0.3045 | 787.0 | 702.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.22 | 274.91 | -12.52 | 44.17 | 0.2984 | 740.0 | 608.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.37 | 274.90 | -12.53 | 43.82 | 0.3003 | 776.0 | 583.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 11.72 | 275.16 | -12.27 | 60.35 | 0.2405 | 726.0 | 562.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 17.43 | 274.64 | -12.79 | 44.25 | 0.3040 | 748.0 | 578.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 15.09 | 274.67 | -12.76 | 50.36 | 0.2782 | 677.0 | 576.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 16.09 | 274.57 | -12.86 | 47.80 | 0.2899 | 822.0 | 655.4 | |
| 0.00 | 1.82 | 0.00 | 1.00 | 27.14 | 273.49 | -13.94 | 29.52 | 0.4369 | 761.0 | 529.5 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 22.92 | 273.87 | -13.56 | 34.91 | 0.3789 | 759.0 | 581.3 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 22.85 | 273.55 | -13.88 | 35.64 | 0.3811 | 708.0 | 590.2 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 15.77 | 274.02 | -13.41 | 49.79 | 0.2935 | 719.0 | 464.5 | |
| 0.00 | 3.82 | 0.00 | 1.98 | 14.91 | 273.19 | -14.24 | 53.78 | 0.2960 | 932.0 | 766.8 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 17.50 | 272.09 | -15.34 | 49.06 | 0.3354 | 747.0 | 577.4 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 13.66 | 271.43 | -16.00 | 60.22 | 0.3100 | 793.0 | 626.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 12.89 | 270.59 | -16.84 | 63.58 | 0.3168 | 889.0 | 619.9 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 15.99 | 269.95 | -17.48 | 56.12 | 0.3493 | 646.0 | 529.2 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 13.24 | 270.11 | -17.32 | 63.17 | 0.3261 | 865.0 | 705.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 19.28 | 269.45 | -17.98 | 49.36 | 0.3856 | 733.0 | 576.1 | |
| 0.00 | 2.00 | 0.00 | 1.06 | 16.28 | 269.37 | -18.06 | 56.21 | 0.3596 | 879.0 | 561.4 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 15.29 | 268.91 | -18.52 | 59.23 | 0.3582 | 707.0 | 443.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
