SDO HMI 2011-10-25 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.74 | 201.32 | 13.85 | 104.78 | 12.27 | 302.75 | 15.87 | 297.24 | 0.3006 | -65.9 | 136.2 | |
|
previous
or next observation for the same group /

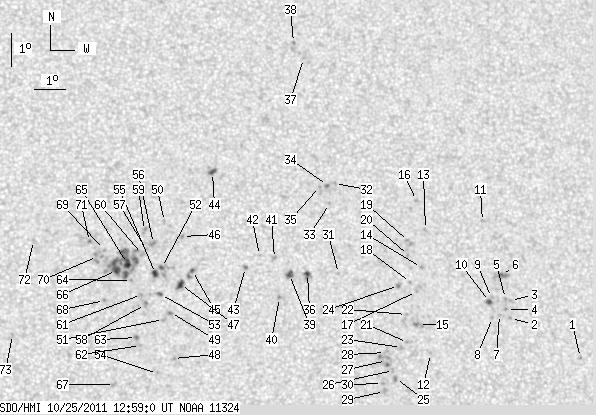

back to the solar disc SDO HMI 2011-10-25 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.72 | 9.57 | 313.39 | 26.50 | 281.34 | 0.4507 | -646.0 | -571.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 10.82 | 311.14 | 24.26 | 285.05 | 0.4197 | -683.0 | -601.5 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 11.36 | 311.19 | 24.31 | 286.28 | 0.4223 | -658.0 | -575.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 11.10 | 311.03 | 24.15 | 285.75 | 0.4190 | -699.0 | -603.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 11.43 | 311.03 | 24.15 | 286.52 | 0.4201 | -821.0 | -710.9 | |
| 0.00 | 8.25 | 0.00 | 4.50 | 12.12 | 310.96 | 24.08 | 288.17 | 0.4217 | -1033.0 | -836.0 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 10.96 | 310.79 | 23.91 | 285.54 | 0.4147 | -749.0 | -632.5 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 10.88 | 310.55 | 23.67 | 285.46 | 0.4108 | -820.0 | -576.4 | |
| 0.00 | 1.65 | 0.00 | 0.90 | 11.47 | 310.57 | 23.69 | 286.88 | 0.4132 | -524.0 | -665.7 | |
| 2.26 | 2.69 | 1.23 | 1.46 | 11.36 | 310.49 | 23.61 | 286.64 | 0.4116 | -1039.1 | -964.4 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 13.77 | 310.49 | 23.61 | 292.23 | 0.4221 | -700.0 | -587.4 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 9.87 | 308.44 | 21.56 | 284.01 | 0.3747 | -748.0 | -646.8 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 13.59 | 308.58 | 21.70 | 293.31 | 0.3930 | -764.0 | -597.1 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 12.45 | 308.34 | 21.46 | 290.71 | 0.3836 | -800.0 | -641.5 | |
| 0.00 | 4.26 | 0.00 | 2.27 | 10.75 | 308.11 | 21.23 | 286.51 | 0.3726 | -842.0 | -836.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 14.47 | 308.37 | 21.49 | 295.60 | 0.3950 | -849.0 | -632.9 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 11.74 | 308.12 | 21.24 | 289.06 | 0.3769 | -752.0 | -656.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 12.01 | 307.95 | 21.07 | 289.90 | 0.3755 | -891.0 | -735.8 | |
| 0.00 | 3.04 | 0.00 | 1.63 | 13.24 | 307.99 | 21.11 | 292.97 | 0.3824 | -641.0 | -700.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 12.82 | 307.95 | 21.07 | 291.95 | 0.3796 | -877.0 | -634.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 10.22 | 307.71 | 20.83 | 285.34 | 0.3645 | -818.0 | -691.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.06 | 307.74 | 20.86 | 287.56 | 0.3682 | -856.0 | -663.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 10.07 | 307.51 | 20.63 | 285.08 | 0.3608 | -930.0 | -789.2 | |
| 0.00 | 2.17 | 0.00 | 1.16 | 11.93 | 307.55 | 20.67 | 290.00 | 0.3691 | -1014.0 | -823.5 | |
| 0.00 | 2.26 | 0.00 | 1.20 | 9.15 | 307.26 | 20.38 | 282.68 | 0.3539 | -917.0 | -757.4 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 9.40 | 307.21 | 20.33 | 283.37 | 0.3538 | -698.0 | -612.2 | |
| 0.00 | 7.99 | 0.00 | 4.23 | 9.70 | 307.00 | 20.12 | 284.34 | 0.3515 | -558.0 | -780.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 9.94 | 306.98 | 20.10 | 285.02 | 0.3521 | -678.0 | -679.9 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 8.78 | 306.88 | 20.00 | 281.79 | 0.3468 | -747.0 | -628.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 9.02 | 306.83 | 19.95 | 282.50 | 0.3467 | -1021.0 | -843.0 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 12.35 | 305.64 | 18.76 | 292.78 | 0.3422 | 714.0 | 551.8 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 15.06 | 305.73 | 18.85 | 299.81 | 0.3612 | -551.0 | -527.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 14.46 | 305.52 | 18.64 | 298.55 | 0.3538 | -850.0 | -580.8 | |
| 0.00 | 1.91 | 0.00 | 1.01 | 15.01 | 305.50 | 18.62 | 299.95 | 0.3575 | -929.0 | -805.6 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 14.99 | 305.24 | 18.36 | 300.22 | 0.3536 | -958.0 | -831.9 | |
| 2.08 | 4.60 | 1.09 | 2.41 | 12.38 | 304.64 | 17.76 | 293.88 | 0.3273 | -921.8 | -751.6 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 18.89 | 305.11 | 18.23 | 309.48 | 0.3851 | -679.0 | -536.5 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 19.39 | 304.83 | 17.95 | 310.93 | 0.3865 | -953.0 | -873.1 | |
| 3.56 | 4.60 | 1.86 | 2.40 | 12.36 | 304.07 | 17.18 | 294.48 | 0.3185 | -1042.0 | -886.8 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 11.68 | 303.70 | 16.82 | 292.85 | 0.3089 | -939.0 | -771.1 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 12.85 | 303.62 | 16.74 | 296.45 | 0.3150 | -1023.0 | -838.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 12.96 | 303.15 | 16.27 | 297.36 | 0.3088 | 405.0 | 293.8 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 12.61 | 302.68 | 15.80 | 296.94 | 0.2994 | 842.0 | 734.0 | |
| 2.17 | 3.91 | 1.13 | 2.04 | 15.49 | 301.83 | 14.95 | 306.58 | 0.3109 | 867.9 | 805.5 | |
| 1.30 | 3.82 | 0.67 | 1.97 | 12.55 | 301.00 | 14.12 | 299.27 | 0.2742 | 729.5 | 712.7 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 13.58 | 300.75 | 13.87 | 302.98 | 0.2789 | 872.0 | 674.1 | |
| 2.35 | 4.86 | 1.20 | 2.50 | 12.14 | 300.60 | 13.72 | 298.55 | 0.2652 | 1044.7 | 811.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 9.93 | 300.28 | 13.40 | 291.02 | 0.2456 | 1010.0 | 876.3 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 11.31 | 300.25 | 13.37 | 296.22 | 0.2538 | 837.0 | 734.8 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 14.04 | 300.21 | 13.32 | 305.41 | 0.2756 | 731.0 | 543.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 11.10 | 300.02 | 13.14 | 295.83 | 0.2489 | 717.0 | 661.6 | |
| 1.30 | 7.64 | 0.67 | 3.92 | 12.66 | 300.03 | 13.15 | 301.31 | 0.2610 | 886.0 | 622.2 | |
| 1.91 | 2.17 | 0.98 | 1.11 | 11.85 | 299.96 | 13.08 | 298.64 | 0.2535 | 689.4 | 744.7 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 9.49 | 299.77 | 12.88 | 289.97 | 0.2351 | 829.0 | 678.6 | |
| 2.08 | 3.56 | 1.07 | 1.82 | 12.49 | 299.84 | 12.96 | 301.07 | 0.2567 | 1092.5 | 846.3 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 13.39 | 299.82 | 12.94 | 304.10 | 0.2643 | 881.0 | 784.3 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 13.21 | 299.59 | 12.71 | 303.98 | 0.2595 | 733.0 | 631.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 11.56 | 299.48 | 12.60 | 298.45 | 0.2442 | 790.0 | 776.7 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 13.79 | 299.56 | 12.68 | 305.89 | 0.2643 | 795.0 | 694.5 | |
| 0.00 | 2.52 | 0.00 | 1.29 | 13.06 | 299.46 | 12.58 | 303.76 | 0.2563 | 829.0 | 635.7 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 11.86 | 299.37 | 12.49 | 299.76 | 0.2449 | 882.0 | 774.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 10.34 | 299.27 | 12.39 | 294.11 | 0.2323 | 884.0 | 699.4 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 10.58 | 299.16 | 12.28 | 295.26 | 0.2322 | 1217.0 | 947.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 12.29 | 299.08 | 12.20 | 301.86 | 0.2441 | 849.0 | 620.1 | |
| 4.69 | 52.03 | 2.40 | 26.58 | 12.80 | 298.98 | 12.10 | 303.86 | 0.2472 | 1164.4 | 866.7 | |
| 3.04 | -65.00 | 1.55 | -65.00 | 12.60 | 298.62 | 11.74 | 303.90 | 0.2404 | 1212.9 | 999999 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 9.19 | 298.43 | 11.54 | 290.58 | 0.2120 | 799.0 | 604.1 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 11.70 | 298.21 | 11.33 | 301.50 | 0.2266 | 890.0 | 633.4 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 13.24 | 298.28 | 11.40 | 306.89 | 0.2416 | 769.0 | 704.2 | |
| 0.00 | 6.95 | 0.00 | 3.54 | 13.03 | 298.05 | 11.17 | 306.71 | 0.2365 | 689.0 | 822.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.48 | 297.82 | 10.94 | 308.83 | 0.2380 | 1039.0 | 896.1 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 13.54 | 296.08 | 9.20 | 313.80 | 0.2164 | 708.0 | 459.3 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 10.73 | 295.34 | 8.46 | 304.73 | 0.1767 | -708.0 | -605.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
