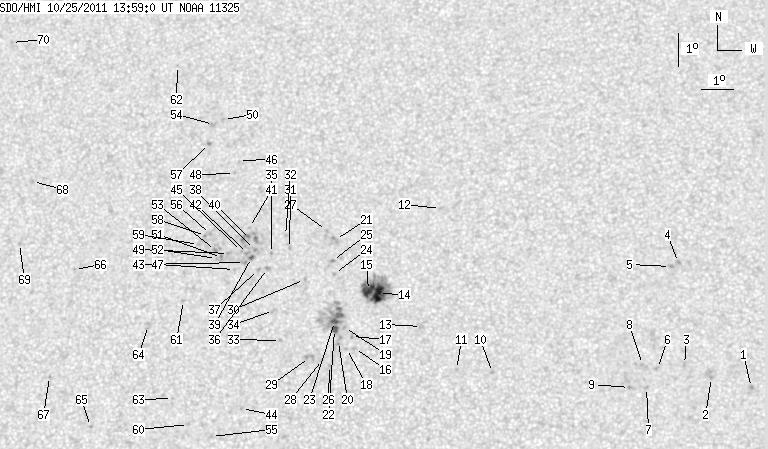

SDO HMI 2011-10-25 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.36 | 226.36 | 12.87 | 115.53 | 16.01 | 278.85 | -7.48 | 331.48 | 0.2358 | -25.3 | -139.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.16 | 291.88 | 5.55 | 326.43 | 0.1710 | -973.0 | -799.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.47 | 290.66 | 4.32 | 333.49 | 0.1650 | -896.0 | -620.9 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 13.87 | 289.83 | 3.50 | 338.92 | 0.1655 | -762.0 | -597.9 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 16.96 | 289.70 | 3.37 | 344.81 | 0.2153 | -841.0 | -724.2 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 16.84 | 289.45 | 3.11 | 345.75 | 0.2122 | -920.0 | -673.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.75 | 289.00 | 2.67 | 343.39 | 0.1590 | -818.0 | -697.9 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 13.18 | 288.66 | 2.33 | 344.43 | 0.1479 | -966.0 | -756.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 13.87 | 288.54 | 2.21 | 346.32 | 0.1590 | -786.0 | -658.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.18 | 288.14 | 1.81 | 347.79 | 0.1457 | -1099.0 | -856.6 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 13.63 | 283.94 | -2.39 | 15.17 | 0.1557 | -969.0 | -771.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 13.71 | 282.83 | -3.50 | 21.41 | 0.1631 | -739.0 | -591.9 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 18.60 | 282.24 | -4.09 | 16.06 | 0.2455 | -857.0 | -637.6 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 15.01 | 281.73 | -4.60 | 24.06 | 0.1909 | -692.0 | -656.5 | |
| 9.38 | 61.05 | 4.76 | 30.98 | 16.00 | 280.37 | -5.96 | 27.63 | 0.2162 | -1326.8 | -647.9 | |
| 7.73 | -14.00 | 3.92 | -14.00 | 16.08 | 280.06 | -6.28 | 28.65 | 0.2201 | -1071.4 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 14.32 | 279.68 | -6.66 | 34.72 | 0.1981 | -754.0 | -493.4 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 14.69 | 279.57 | -6.76 | 34.08 | 0.2042 | -978.0 | -751.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 14.32 | 279.43 | -6.90 | 35.70 | 0.2005 | -896.0 | -644.1 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 14.96 | 279.35 | -6.99 | 34.19 | 0.2101 | -930.0 | -800.8 | |
| 0.00 | 3.91 | 0.00 | 1.98 | 14.53 | 279.17 | -7.16 | 36.05 | 0.2059 | -505.0 | -721.0 | |
| 0.00 | 3.82 | 0.00 | 1.96 | 17.63 | 278.97 | -7.37 | 29.19 | 0.2517 | -856.0 | -759.6 | |
| 3.56 | 45.77 | 1.80 | 23.23 | 14.89 | 279.04 | -7.29 | 35.51 | 0.2122 | -1044.0 | -501.2 | |
| 3.04 | -22.00 | 1.54 | -22.00 | 15.13 | 279.03 | -7.30 | 34.87 | 0.2156 | -1049.5 | 999999 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 16.59 | 278.98 | -7.36 | 31.39 | 0.2366 | -886.0 | -772.4 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 16.98 | 278.90 | -7.43 | 30.77 | 0.2430 | -873.0 | -720.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 13.80 | 278.92 | -7.41 | 39.27 | 0.1989 | -926.0 | -764.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.90 | 278.67 | -7.66 | 29.59 | 0.2581 | -707.0 | -584.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.98 | 278.70 | -7.64 | 39.51 | 0.2036 | -715.0 | -569.0 | |
| 0.00 | 5.38 | 0.00 | 2.73 | 14.04 | 278.29 | -8.04 | 40.77 | 0.2088 | -495.0 | -687.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 16.40 | 278.04 | -8.29 | 34.94 | 0.2426 | -610.0 | -531.3 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.33 | 277.53 | -8.80 | 34.31 | 0.2604 | 820.0 | 588.0 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 17.73 | 277.38 | -8.95 | 33.86 | 0.2672 | 737.0 | 607.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.54 | 277.37 | -8.96 | 42.21 | 0.2255 | 927.0 | 702.5 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 15.44 | 277.11 | -9.22 | 40.34 | 0.2397 | 844.0 | 616.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.17 | 276.97 | -9.37 | 36.32 | 0.2637 | 909.0 | 725.5 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 16.72 | 276.86 | -9.47 | 37.72 | 0.2587 | 933.0 | 716.1 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 16.68 | 276.58 | -9.75 | 38.61 | 0.2612 | 1003.0 | 790.0 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 17.29 | 276.42 | -9.91 | 37.57 | 0.2707 | 1065.0 | 903.3 | |
| 1.65 | 1.91 | 0.85 | 0.98 | 17.04 | 276.34 | -9.99 | 38.38 | 0.2684 | 1017.7 | 949.3 | |
| 0.00 | 13.55 | 0.00 | 6.98 | 17.59 | 276.28 | -10.05 | 37.26 | 0.2761 | 438.0 | 868.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.96 | 276.23 | -10.11 | 36.57 | 0.2814 | 764.0 | 595.2 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.16 | 276.21 | -10.12 | 38.46 | 0.2713 | 959.0 | 829.4 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 16.89 | 276.13 | -10.20 | 39.34 | 0.2686 | 946.0 | 763.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 12.47 | 276.24 | -10.09 | 52.58 | 0.2164 | 950.0 | 716.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 17.22 | 276.01 | -10.32 | 38.83 | 0.2741 | 905.0 | 741.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 20.01 | 275.74 | -10.59 | 33.60 | 0.3134 | 509.0 | 496.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.67 | 275.82 | -10.51 | 40.69 | 0.2692 | 901.0 | 665.0 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 19.61 | 275.64 | -10.69 | 34.62 | 0.3089 | 640.0 | 471.0 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 17.15 | 275.61 | -10.73 | 40.06 | 0.2776 | 1000.0 | 762.2 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 21.27 | 275.17 | -11.17 | 32.69 | 0.3356 | 737.0 | 641.8 | |
| 0.00 | 2.61 | 0.00 | 1.34 | 17.03 | 275.39 | -10.94 | 40.91 | 0.2784 | 1003.0 | 818.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.00 | 275.23 | -11.10 | 41.39 | 0.2797 | 881.0 | 744.4 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 17.24 | 275.19 | -11.14 | 40.91 | 0.2832 | 1135.0 | 927.5 | |
| 0.00 | 3.04 | 0.00 | 1.60 | 21.11 | 274.85 | -11.48 | 33.68 | 0.3363 | 956.0 | 759.3 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 11.62 | 275.35 | -10.99 | 58.07 | 0.2210 | 843.0 | 717.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 17.72 | 275.00 | -11.33 | 40.22 | 0.2912 | 861.0 | 662.5 | |
| 0.00 | 2.00 | 0.00 | 1.05 | 20.52 | 274.77 | -11.56 | 34.94 | 0.3292 | 1019.0 | 809.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 17.69 | 274.84 | -11.49 | 40.68 | 0.2925 | 815.0 | 640.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 17.41 | 274.64 | -11.70 | 41.82 | 0.2914 | 662.0 | 492.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 11.97 | 274.62 | -11.71 | 58.32 | 0.2345 | 907.0 | 622.6 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 15.70 | 274.27 | -12.07 | 47.09 | 0.2760 | 794.0 | 597.4 | |
| 0.00 | 0.96 | 0.00 | 0.51 | 22.93 | 273.51 | -12.82 | 33.46 | 0.3723 | 710.0 | 526.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 12.74 | 274.08 | -12.25 | 56.67 | 0.2488 | 732.0 | 585.8 | |
| 0.00 | 3.56 | 0.00 | 1.84 | 14.93 | 273.21 | -13.13 | 51.58 | 0.2813 | 652.0 | 655.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 11.85 | 271.56 | -14.78 | 64.04 | 0.2789 | 807.0 | 647.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 16.57 | 270.72 | -15.61 | 51.77 | 0.3298 | 692.0 | 574.7 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 13.32 | 270.17 | -16.17 | 61.43 | 0.3099 | 804.0 | 538.7 | |
| 0.00 | 1.74 | 0.00 | 0.93 | 19.23 | 269.09 | -17.24 | 48.34 | 0.3762 | 828.0 | 616.3 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 17.32 | 268.86 | -17.47 | 52.90 | 0.3609 | 797.0 | 630.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 23.52 | 267.84 | -18.49 | 42.14 | 0.4352 | 736.0 | 561.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
