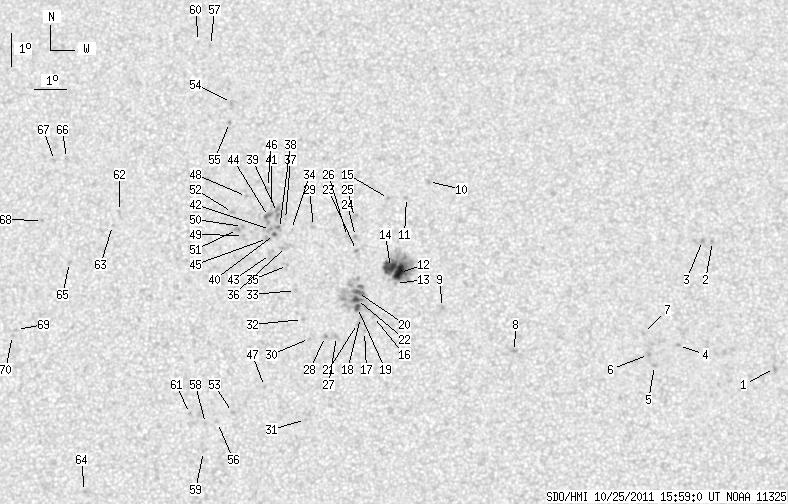

SDO HMI 2011-10-25 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.75 | 238.04 | 12.53 | 121.18 | 15.94 | 278.64 | -6.59 | 356.73 | 0.2271 | -21.3 | -118.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.18 | 13.05 | 291.88 | 6.65 | 321.16 | 0.1808 | -928.0 | -743.0 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 16.91 | 290.07 | 4.83 | 338.64 | 0.2224 | -808.0 | -665.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.94 | 289.75 | 4.52 | 339.95 | 0.2211 | -903.0 | -762.7 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.77 | 288.95 | 3.72 | 337.52 | 0.1654 | -923.0 | -737.0 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 13.17 | 288.20 | 2.97 | 340.40 | 0.1511 | -1070.0 | -778.4 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 13.50 | 288.02 | 2.79 | 342.20 | 0.1556 | -965.0 | -828.4 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 14.14 | 287.88 | 2.65 | 344.22 | 0.1653 | -854.0 | -611.3 | |
| 0.00 | 2.26 | 0.00 | 1.13 | 13.60 | 283.92 | -1.32 | 8.52 | 0.1514 | -1096.0 | -790.8 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 14.92 | 281.69 | -3.54 | 19.17 | 0.1828 | -918.0 | -784.3 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 18.75 | 281.17 | -4.06 | 15.77 | 0.2478 | -808.0 | -549.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 18.26 | 280.49 | -4.74 | 18.91 | 0.2433 | -911.0 | -680.5 | |
| 9.72 | 63.99 | 4.92 | 32.42 | 15.97 | 280.33 | -4.90 | 23.36 | 0.2080 | -1385.8 | -592.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 15.63 | 280.22 | -5.01 | 24.54 | 0.2036 | -324.0 | -227.1 | |
| 5.99 | -12.00 | 3.04 | -12.00 | 16.12 | 280.05 | -5.18 | 24.25 | 0.2123 | -1069.9 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 18.22 | 279.93 | -5.30 | 21.02 | 0.2460 | -761.0 | -649.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.63 | 279.56 | -5.67 | 29.76 | 0.1935 | -1026.0 | -772.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.18 | 279.29 | -5.94 | 32.18 | 0.1892 | -790.0 | -609.3 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 14.60 | 279.16 | -6.07 | 31.56 | 0.1965 | -962.0 | -810.5 | |
| 3.04 | 57.83 | 1.54 | 29.28 | 14.90 | 279.06 | -6.17 | 31.16 | 0.2018 | -1113.2 | -473.1 | |
| 2.26 | -19.00 | 1.14 | -19.00 | 15.35 | 279.04 | -6.19 | 30.05 | 0.2085 | -888.4 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 14.41 | 279.07 | -6.16 | 32.43 | 0.1947 | -942.0 | -731.3 | |
| 2.52 | -19.00 | 1.27 | -19.00 | 15.14 | 279.02 | -6.21 | 30.68 | 0.2056 | -1038.2 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 16.63 | 278.97 | -6.26 | 27.40 | 0.2280 | -876.0 | -680.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 17.05 | 278.93 | -6.30 | 26.69 | 0.2348 | -1004.0 | -828.0 | |
| 0.00 | 3.82 | 0.00 | 1.95 | 17.63 | 278.88 | -6.36 | 25.75 | 0.2439 | -905.0 | -742.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.05 | 278.68 | -6.55 | 27.59 | 0.2367 | -746.0 | -478.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 14.02 | 278.43 | -6.80 | 36.22 | 0.1953 | -867.0 | -757.1 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 14.01 | 278.09 | -7.14 | 37.56 | 0.1987 | -949.0 | -786.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.34 | 277.60 | -7.63 | 30.65 | 0.2499 | 750.0 | 505.5 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.95 | 277.60 | -7.63 | 39.61 | 0.2031 | -801.0 | -629.0 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 11.51 | 277.55 | -7.68 | 49.05 | 0.1742 | 1036.0 | 760.7 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 14.52 | 277.36 | -7.87 | 38.66 | 0.2131 | 867.0 | 629.1 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 15.39 | 277.11 | -8.12 | 37.00 | 0.2273 | 762.0 | 644.1 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 17.24 | 276.91 | -8.32 | 33.05 | 0.2546 | 692.0 | 531.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 16.15 | 276.83 | -8.40 | 35.92 | 0.2403 | 790.0 | 617.4 | |
| 0.00 | 7.38 | 0.00 | 3.77 | 16.72 | 276.77 | -8.46 | 34.67 | 0.2487 | 501.0 | 647.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.55 | 276.70 | -8.53 | 33.01 | 0.2607 | 798.0 | 653.0 | |
| 0.00 | 2.60 | 0.00 | 1.34 | 17.27 | 276.53 | -8.70 | 34.16 | 0.2585 | 832.0 | 891.9 | |
| 0.00 | 6.16 | 0.00 | 3.17 | 17.76 | 276.44 | -8.79 | 33.33 | 0.2661 | 779.0 | 863.9 | |
| 1.22 | 1.65 | 0.62 | 0.85 | 17.08 | 276.38 | -8.85 | 35.03 | 0.2574 | 1030.6 | 993.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.94 | 276.24 | -8.99 | 33.52 | 0.2704 | 780.0 | 655.5 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 17.23 | 276.25 | -8.99 | 35.07 | 0.2608 | 1030.0 | 902.1 | |
| 0.00 | 2.87 | 0.00 | 1.47 | 16.47 | 276.28 | -8.95 | 36.79 | 0.2502 | 563.0 | 687.9 | |
| 0.00 | 7.29 | 0.00 | 3.75 | 17.63 | 276.16 | -9.07 | 34.42 | 0.2669 | 1162.0 | 943.2 | |
| 0.00 | 3.04 | 0.00 | 1.56 | 16.96 | 276.16 | -9.07 | 35.96 | 0.2579 | 937.0 | 794.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 18.52 | 276.08 | -9.15 | 32.76 | 0.2799 | 870.0 | 659.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 12.49 | 276.26 | -8.97 | 49.34 | 0.2017 | 1057.0 | 684.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 18.23 | 275.43 | -9.80 | 35.15 | 0.2821 | 715.0 | 571.9 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.04 | 275.40 | -9.83 | 37.94 | 0.2666 | 1037.0 | 867.5 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 17.31 | 275.36 | -9.88 | 37.42 | 0.2707 | 993.0 | 792.2 | |
| 0.00 | 2.78 | 0.00 | 1.43 | 17.22 | 275.20 | -10.03 | 38.06 | 0.2710 | 968.0 | 836.9 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 17.74 | 275.01 | -10.22 | 37.36 | 0.2797 | 792.0 | 670.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 11.69 | 275.30 | -9.93 | 55.22 | 0.2066 | 871.0 | 756.8 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 21.12 | 274.76 | -10.47 | 31.32 | 0.3275 | 890.0 | 771.9 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 20.50 | 274.74 | -10.49 | 32.45 | 0.3191 | 925.0 | 766.7 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 11.38 | 274.85 | -10.39 | 57.61 | 0.2102 | 614.0 | 507.8 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 22.88 | 273.94 | -11.29 | 30.34 | 0.3586 | 778.0 | 594.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.35 | 274.48 | -10.75 | 58.62 | 0.2153 | 861.0 | 676.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 10.51 | 274.45 | -10.79 | 62.20 | 0.2090 | 709.0 | 563.0 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 23.00 | 273.53 | -11.70 | 31.03 | 0.3636 | 697.0 | 572.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 11.64 | 273.97 | -11.26 | 58.59 | 0.2251 | 854.0 | 658.7 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 17.70 | 271.40 | -13.83 | 45.75 | 0.3193 | 760.0 | 583.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 17.27 | 271.21 | -14.02 | 47.16 | 0.3169 | 630.0 | 516.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 9.24 | 270.81 | -14.42 | 72.77 | 0.2586 | 865.0 | 625.2 | |
| 0.00 | 2.00 | 0.00 | 1.04 | 16.12 | 269.92 | -15.31 | 52.41 | 0.3216 | 808.0 | 667.7 | |
| 0.00 | 1.48 | 0.00 | 0.78 | 19.29 | 269.54 | -15.69 | 45.67 | 0.3585 | 813.0 | 555.9 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 19.22 | 269.15 | -16.08 | 46.48 | 0.3622 | 853.0 | 624.3 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 17.37 | 268.94 | -16.29 | 50.96 | 0.3463 | 811.0 | 561.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 14.05 | 268.38 | -16.85 | 60.29 | 0.3253 | 774.0 | 503.6 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 13.87 | 268.26 | -16.97 | 60.95 | 0.3255 | 761.0 | 628.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
