SDO HMI 2011-10-25 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.12 | 201.31 | 15.27 | 102.43 | 16.00 | 278.80 | -5.88 | 352.50 | 0.2247 | -149.4 | -96.0 | |
|
previous
or next observation for the same group /

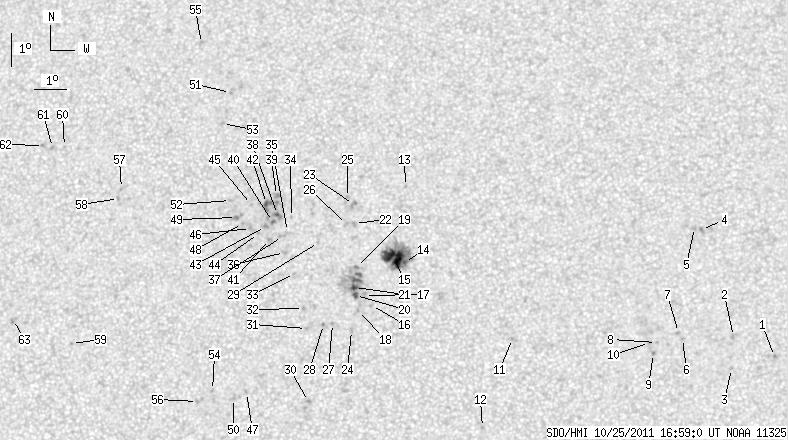

back to the solar disc SDO HMI 2011-10-25 16:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.05 | 291.92 | 7.24 | 318.80 | 0.1872 | -973.0 | -812.8 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.66 | 290.67 | 5.99 | 326.05 | 0.1824 | -918.0 | -755.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 12.70 | 290.58 | 5.90 | 323.16 | 0.1681 | -859.0 | -579.3 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 16.91 | 289.76 | 5.08 | 337.66 | 0.2240 | -992.0 | -789.1 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 16.97 | 289.55 | 4.87 | 338.62 | 0.2236 | -890.0 | -708.2 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.61 | 289.10 | 4.42 | 333.40 | 0.1680 | -803.0 | -640.4 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.80 | 288.98 | 4.30 | 334.51 | 0.1699 | -802.0 | -648.8 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.50 | 288.30 | 3.62 | 337.41 | 0.1605 | -881.0 | -705.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.17 | 288.20 | 3.52 | 337.13 | 0.1546 | -1008.0 | -830.4 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 13.50 | 288.08 | 3.40 | 338.62 | 0.1591 | -1001.0 | -756.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.63 | 283.88 | -0.80 | 5.16 | 0.1508 | -1024.0 | -869.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 10.95 | 282.98 | -1.70 | 15.73 | 0.1078 | -920.0 | -715.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 18.23 | 280.51 | -4.17 | 16.83 | 0.2399 | -851.0 | -594.3 | |
| 1.74 | 57.21 | 0.88 | 28.96 | 15.91 | 280.53 | -4.15 | 20.22 | 0.2024 | -1068.4 | -607.0 | |
| 21.10 | -14.00 | 10.68 | -14.00 | 16.06 | 280.18 | -4.50 | 21.46 | 0.2069 | -1206.3 | 999999 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 14.61 | 279.53 | -5.15 | 27.50 | 0.1888 | -995.0 | -672.9 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 14.91 | 279.31 | -5.37 | 27.75 | 0.1951 | -861.0 | -757.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.45 | 279.14 | -5.54 | 29.69 | 0.1898 | -820.0 | -636.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 15.78 | 279.04 | -5.64 | 26.83 | 0.2105 | -766.0 | -655.4 | |
| 1.30 | 30.04 | 0.66 | 15.19 | 14.90 | 279.03 | -5.65 | 28.96 | 0.1974 | -1223.5 | -580.7 | |
| 2.60 | -20.00 | 1.32 | -20.00 | 15.15 | 278.99 | -5.69 | 28.51 | 0.2013 | -1076.9 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 17.09 | 278.94 | -5.74 | 24.55 | 0.2312 | -988.0 | -858.2 | |
| 0.00 | 3.47 | 0.00 | 1.77 | 17.67 | 278.89 | -5.79 | 23.68 | 0.2405 | -823.0 | -793.7 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.85 | 278.93 | -5.74 | 32.31 | 0.1827 | -922.0 | -760.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.88 | 278.69 | -5.99 | 24.01 | 0.2451 | -815.0 | -631.9 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 17.06 | 278.69 | -5.99 | 25.54 | 0.2325 | -730.0 | -595.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.05 | 278.34 | -6.34 | 34.23 | 0.1912 | -921.0 | -740.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.02 | 278.07 | -6.61 | 35.47 | 0.1935 | -951.0 | -830.3 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 16.50 | 277.83 | -6.85 | 29.83 | 0.2310 | -525.0 | -305.9 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 11.70 | 277.67 | -7.01 | 45.67 | 0.1679 | 1000.0 | 795.5 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 13.89 | 277.54 | -7.14 | 37.93 | 0.1971 | -813.0 | -655.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 14.50 | 277.43 | -7.25 | 36.49 | 0.2064 | 840.0 | 602.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 15.55 | 277.12 | -7.56 | 34.67 | 0.2240 | 949.0 | 701.6 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.25 | 276.95 | -7.73 | 31.14 | 0.2494 | 862.0 | 709.7 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.82 | 276.85 | -7.83 | 32.45 | 0.2443 | 569.0 | 625.5 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 16.18 | 276.78 | -7.90 | 34.20 | 0.2360 | 852.0 | 672.5 | |
| 0.00 | 2.43 | 0.00 | 1.24 | 16.67 | 276.70 | -7.98 | 33.30 | 0.2435 | 662.0 | 693.7 | |
| 1.04 | 11.29 | 0.53 | 5.78 | 17.34 | 276.51 | -8.17 | 32.37 | 0.2546 | 1013.1 | 869.3 | |
| 0.00 | 4.08 | 0.00 | 2.09 | 17.92 | 276.45 | -8.23 | 31.31 | 0.2633 | 808.0 | 751.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.12 | 276.36 | -8.32 | 33.31 | 0.2529 | 1202.0 | 1044.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 16.57 | 276.29 | -8.39 | 34.82 | 0.2460 | 939.0 | 719.9 | |
| 2.34 | 5.90 | 1.20 | 3.03 | 17.67 | 276.15 | -8.53 | 32.76 | 0.2625 | 1113.9 | 1008.6 | |
| 0.00 | 2.34 | 0.00 | 1.20 | 16.97 | 276.15 | -8.53 | 34.33 | 0.2528 | 1009.0 | 830.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.75 | 275.94 | -8.74 | 35.49 | 0.2519 | 875.0 | 609.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.63 | 275.67 | -9.01 | 34.24 | 0.2664 | 882.0 | 718.9 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 16.90 | 275.68 | -9.00 | 35.91 | 0.2564 | 819.0 | 688.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 11.95 | 275.76 | -8.92 | 51.33 | 0.1953 | 813.0 | 617.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.05 | 275.42 | -9.26 | 36.32 | 0.2610 | 1014.0 | 829.2 | |
| 0.00 | 5.99 | 0.00 | 3.08 | 17.23 | 275.22 | -9.46 | 36.46 | 0.2654 | 1047.0 | 775.6 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 11.76 | 275.36 | -9.32 | 53.26 | 0.1988 | 1020.0 | 775.8 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 21.07 | 274.80 | -9.88 | 29.99 | 0.3218 | 947.0 | 800.2 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 17.74 | 275.00 | -9.68 | 35.88 | 0.2744 | 766.0 | 651.7 | |
| 0.00 | 1.65 | 0.00 | 0.86 | 20.10 | 274.60 | -10.07 | 32.15 | 0.3101 | 750.0 | 537.3 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 11.99 | 274.70 | -9.98 | 54.13 | 0.2101 | 807.0 | 665.8 | |
| 0.00 | 2.17 | 0.00 | 1.15 | 22.58 | 273.74 | -10.94 | 30.04 | 0.3515 | 364.0 | 366.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 11.65 | 274.25 | -10.43 | 56.62 | 0.2133 | 906.0 | 655.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 18.05 | 271.50 | -13.18 | 43.61 | 0.3157 | 716.0 | 588.8 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 17.75 | 271.43 | -13.25 | 44.48 | 0.3130 | 771.0 | 603.1 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 13.32 | 270.23 | -14.45 | 58.81 | 0.2851 | 892.0 | 716.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 19.30 | 269.54 | -15.14 | 44.66 | 0.3522 | 793.0 | 566.9 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 19.26 | 269.15 | -15.53 | 45.43 | 0.3562 | 907.0 | 715.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 19.32 | 268.85 | -15.83 | 45.84 | 0.3603 | 838.0 | 637.3 | |
| 0.00 | 3.13 | 0.00 | 1.63 | 14.00 | 268.34 | -16.34 | 59.71 | 0.3175 | 616.0 | 631.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
