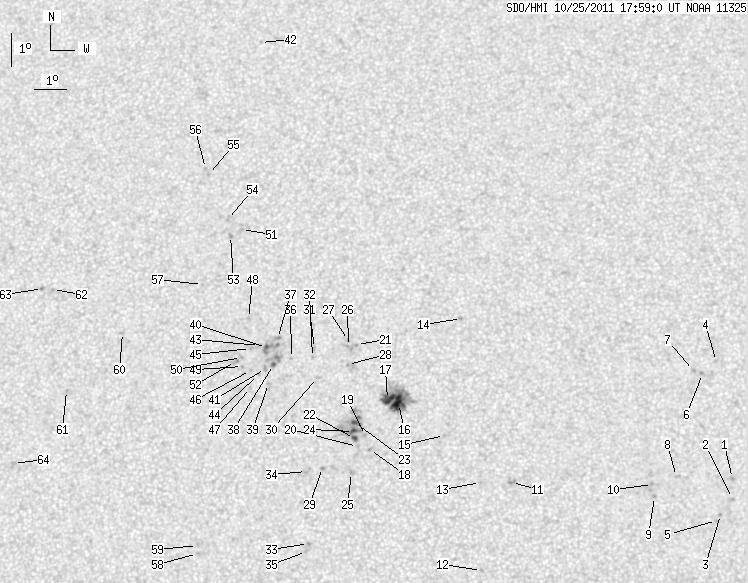

SDO HMI 2011-10-25 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.10 | 217.92 | 14.73 | 110.77 | 16.09 | 278.97 | -5.16 | 357.72 | 0.2201 | -149.6 | -118.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.34 | 0.00 | 1.18 | 13.69 | 290.64 | 6.51 | 323.91 | 0.1879 | -964.0 | -715.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.09 | 290.62 | 6.49 | 321.95 | 0.1796 | -866.0 | -716.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.61 | 290.24 | 6.11 | 321.87 | 0.1691 | -917.0 | -768.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.24 | 290.25 | 6.12 | 334.33 | 0.2362 | -615.0 | -528.6 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.43 | 290.11 | 5.99 | 321.77 | 0.1654 | -884.0 | -763.9 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 16.88 | 289.80 | 5.67 | 335.31 | 0.2275 | -922.0 | -748.4 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.97 | 289.52 | 5.39 | 336.55 | 0.2270 | -906.0 | -715.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.76 | 288.92 | 4.79 | 331.96 | 0.1732 | -874.0 | -649.7 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 13.17 | 288.23 | 4.10 | 333.85 | 0.1587 | -1053.0 | -876.8 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.53 | 288.17 | 4.04 | 335.14 | 0.1639 | -998.0 | -809.4 | |
| 0.00 | 3.04 | 0.00 | 1.52 | 13.60 | 283.85 | -0.28 | 1.81 | 0.1498 | -1222.0 | -893.2 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 10.96 | 282.94 | -1.19 | 11.12 | 0.1058 | -928.0 | -747.5 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 13.60 | 282.90 | -1.23 | 7.96 | 0.1512 | -823.0 | -617.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 18.58 | 282.27 | -1.86 | 7.47 | 0.2374 | -927.0 | -706.3 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 15.02 | 281.78 | -2.35 | 12.84 | 0.1788 | -839.0 | -644.5 | |
| 11.55 | 61.73 | 5.84 | 31.23 | 15.98 | 280.34 | -3.78 | 18.46 | 0.2014 | -1331.9 | -568.4 | |
| 8.51 | -16.00 | 4.31 | -16.00 | 16.10 | 280.00 | -4.13 | 19.79 | 0.2052 | -1036.6 | 999999 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 14.58 | 279.47 | -4.65 | 25.29 | 0.1847 | -905.0 | -610.2 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 15.00 | 279.34 | -4.79 | 24.92 | 0.1922 | -822.0 | -642.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 14.67 | 279.10 | -5.03 | 26.81 | 0.1888 | -897.0 | -722.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.77 | 278.99 | -5.14 | 21.12 | 0.2378 | -821.0 | -720.1 | |
| 1.91 | 44.02 | 0.96 | 22.25 | 14.91 | 279.00 | -5.13 | 26.66 | 0.1933 | -1150.8 | -481.1 | |
| 2.17 | -22.00 | 1.10 | -22.00 | 15.39 | 278.99 | -5.14 | 25.59 | 0.2008 | -824.6 | 999999 | |
| 2.26 | -22.00 | 1.14 | -22.00 | 15.12 | 278.97 | -5.16 | 26.32 | 0.1968 | -1047.0 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 13.88 | 278.93 | -5.19 | 29.67 | 0.1784 | -1023.0 | -766.0 | |
| 0.00 | 3.47 | 0.00 | 1.77 | 17.70 | 278.74 | -5.39 | 22.15 | 0.2384 | -864.0 | -742.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 17.89 | 278.73 | -5.39 | 21.87 | 0.2413 | -876.0 | -658.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.15 | 278.72 | -5.40 | 23.15 | 0.2299 | -785.0 | -686.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 14.03 | 278.04 | -6.09 | 33.28 | 0.1885 | -993.0 | -822.7 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.75 | 277.80 | -6.33 | 27.40 | 0.2304 | -656.0 | -473.0 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.63 | 277.67 | -6.45 | 26.09 | 0.2447 | 802.0 | 587.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 17.36 | 277.62 | -6.51 | 26.81 | 0.2409 | 908.0 | 717.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 11.74 | 277.66 | -6.46 | 43.21 | 0.1618 | 970.0 | 793.5 | |
| 0.00 | 2.78 | 0.00 | 1.40 | 13.90 | 277.55 | -6.58 | 35.72 | 0.1915 | -915.0 | -699.2 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 11.50 | 277.61 | -6.52 | 44.51 | 0.1595 | 888.0 | 722.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 17.32 | 276.96 | -7.17 | 29.15 | 0.2456 | 803.0 | 553.7 | |
| 0.00 | 3.39 | 0.00 | 1.74 | 17.93 | 276.50 | -7.63 | 29.44 | 0.2583 | 900.0 | 805.6 | |
| 1.22 | 11.98 | 0.62 | 6.13 | 17.13 | 276.40 | -7.72 | 31.40 | 0.2476 | 1138.5 | 912.5 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 16.55 | 276.27 | -7.86 | 33.16 | 0.2406 | 952.0 | 760.3 | |
| 1.48 | 9.29 | 0.76 | 4.76 | 17.65 | 276.16 | -7.97 | 31.07 | 0.2571 | 1171.1 | 981.8 | |
| 0.00 | 2.86 | 0.00 | 1.46 | 17.01 | 276.16 | -7.97 | 32.48 | 0.2481 | 961.0 | 798.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 27.18 | 275.38 | -8.74 | 19.69 | 0.4031 | 596.0 | 455.0 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 17.70 | 275.94 | -8.19 | 31.64 | 0.2599 | 834.0 | 702.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 16.82 | 275.95 | -8.18 | 33.58 | 0.2474 | 829.0 | 626.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.61 | 275.66 | -8.47 | 32.70 | 0.2611 | 947.0 | 740.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.94 | 275.69 | -8.44 | 34.11 | 0.2515 | 923.0 | 755.1 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 16.42 | 275.71 | -8.42 | 35.28 | 0.2442 | 901.0 | 676.1 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 18.53 | 275.55 | -8.58 | 31.12 | 0.2750 | 694.0 | 598.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 17.06 | 275.43 | -8.70 | 34.62 | 0.2556 | 1037.0 | 904.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.33 | 275.39 | -8.74 | 34.13 | 0.2598 | 926.0 | 725.2 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 21.27 | 275.17 | -8.96 | 27.34 | 0.3173 | 898.0 | 711.7 | |
| 0.00 | 2.78 | 0.00 | 1.42 | 17.21 | 275.20 | -8.93 | 34.96 | 0.2598 | 878.0 | 835.9 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 21.08 | 274.83 | -9.30 | 28.52 | 0.3172 | 983.0 | 855.7 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 21.57 | 274.70 | -9.43 | 28.06 | 0.3253 | 864.0 | 642.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 22.97 | 273.98 | -10.15 | 27.69 | 0.3508 | 836.0 | 677.2 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 23.15 | 273.86 | -10.26 | 27.68 | 0.3543 | 743.0 | 596.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 19.55 | 274.02 | -10.11 | 33.27 | 0.3028 | 809.0 | 585.6 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 11.39 | 274.26 | -9.86 | 56.27 | 0.2029 | 715.0 | 570.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 11.63 | 274.25 | -9.87 | 55.30 | 0.2052 | 905.0 | 706.1 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 18.04 | 271.56 | -12.57 | 42.35 | 0.3086 | 720.0 | 529.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 16.23 | 269.89 | -14.23 | 50.17 | 0.3088 | 733.0 | 598.6 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 19.31 | 269.18 | -14.94 | 44.29 | 0.3500 | 807.0 | 727.5 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 19.33 | 268.85 | -15.27 | 44.84 | 0.3541 | 842.0 | 712.7 | |
| 0.00 | 2.86 | 0.00 | 1.49 | 13.99 | 268.36 | -15.77 | 58.91 | 0.3092 | 814.0 | 711.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
