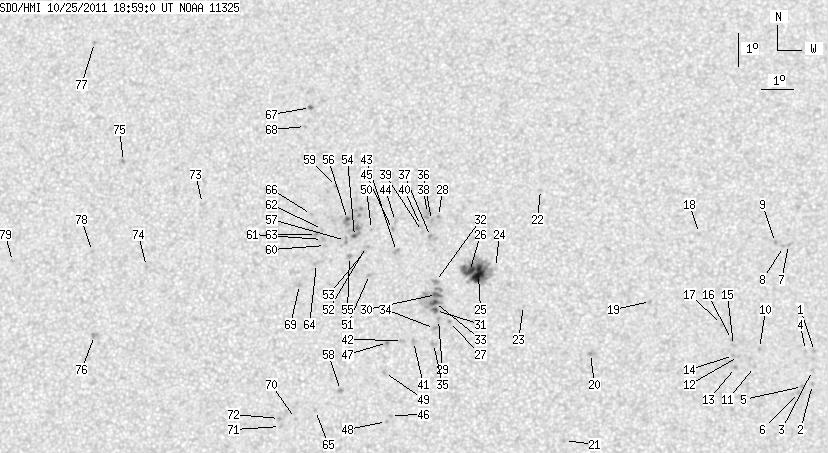

SDO HMI 2011-10-25 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.52 | 243.66 | 14.93 | 123.66 | 15.84 | 278.94 | -4.63 | 348.67 | 0.2156 | -208.9 | -110.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.65 | 290.67 | 7.10 | 321.42 | 0.1935 | -905.0 | -655.9 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.66 | 290.58 | 7.01 | 318.25 | 0.1796 | -782.0 | -693.6 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.08 | 290.60 | 7.02 | 319.76 | 0.1851 | -782.0 | -612.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 13.68 | 290.40 | 6.82 | 322.62 | 0.1910 | -740.0 | -578.8 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 12.60 | 290.28 | 6.70 | 319.30 | 0.1754 | -878.0 | -711.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 12.42 | 290.15 | 6.57 | 319.14 | 0.1717 | -994.0 | -817.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 16.90 | 289.97 | 6.40 | 332.66 | 0.2332 | -857.0 | -679.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 16.84 | 289.81 | 6.24 | 333.12 | 0.2310 | -852.0 | -721.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 16.96 | 289.57 | 5.99 | 334.28 | 0.2311 | -916.0 | -784.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.75 | 288.98 | 5.41 | 328.97 | 0.1783 | -927.0 | -713.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 13.21 | 288.82 | 5.24 | 328.09 | 0.1689 | -882.0 | -627.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 13.52 | 288.33 | 4.75 | 331.42 | 0.1692 | -928.0 | -687.0 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 13.19 | 288.23 | 4.66 | 330.94 | 0.1635 | -1019.0 | -808.6 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 13.55 | 288.18 | 4.60 | 332.29 | 0.1685 | -1018.0 | -830.6 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 13.85 | 288.18 | 4.61 | 333.09 | 0.1731 | -880.0 | -723.0 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 14.03 | 288.12 | 4.55 | 333.86 | 0.1755 | -846.0 | -613.4 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.49 | 287.83 | 4.25 | 336.45 | 0.1804 | -783.0 | -595.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 17.25 | 287.20 | 3.62 | 344.11 | 0.2213 | -806.0 | -594.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 15.19 | 285.64 | 2.07 | 348.84 | 0.1808 | -891.0 | -672.4 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 13.63 | 283.79 | 0.22 | 358.60 | 0.1502 | -1166.0 | -990.0 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 11.01 | 283.00 | -0.58 | 5.41 | 0.1052 | -794.0 | -676.6 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 18.60 | 282.22 | -1.35 | 5.44 | 0.2369 | -815.0 | -600.9 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 15.07 | 281.73 | -1.85 | 10.13 | 0.1780 | -812.0 | -651.3 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 16.22 | 280.85 | -2.73 | 13.25 | 0.2004 | -23.0 | -17.7 | |
| 11.98 | 55.91 | 6.05 | 28.27 | 16.01 | 280.32 | -3.25 | 15.98 | 0.1992 | -1326.3 | -682.1 | |
| 4.25 | -25.00 | 2.15 | -25.00 | 16.10 | 280.04 | -3.54 | 17.14 | 0.2020 | -1147.6 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 14.58 | 279.45 | -4.13 | 22.74 | 0.1810 | -985.0 | -718.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.76 | 279.04 | -4.54 | 18.85 | 0.2343 | -856.0 | -698.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 14.64 | 279.11 | -4.47 | 24.27 | 0.1842 | -988.0 | -877.0 | |
| 3.39 | 36.11 | 1.71 | 18.24 | 15.39 | 279.03 | -4.55 | 22.98 | 0.1966 | -868.1 | -522.3 | |
| 2.17 | -30.00 | 1.09 | -30.00 | 14.91 | 279.01 | -4.57 | 24.11 | 0.1892 | -1139.2 | 999999 | |
| 0.00 | 3.56 | 0.00 | 1.80 | 15.79 | 278.99 | -4.59 | 22.37 | 0.2031 | -708.0 | -652.8 | |
| 3.21 | -30.00 | 1.62 | -30.00 | 15.15 | 278.97 | -4.60 | 23.75 | 0.1932 | -1095.5 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 14.36 | 278.99 | -4.59 | 25.48 | 0.1808 | -1029.0 | -802.1 | |
| 0.00 | 2.78 | 0.00 | 1.40 | 13.91 | 278.97 | -4.61 | 26.75 | 0.1740 | -1022.0 | -772.0 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 17.64 | 278.82 | -4.76 | 19.87 | 0.2336 | -977.0 | -849.8 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 17.15 | 278.80 | -4.77 | 20.71 | 0.2259 | -820.0 | -768.4 | |
| 0.00 | 5.38 | 0.00 | 2.74 | 17.85 | 278.69 | -4.89 | 20.04 | 0.2377 | -714.0 | -653.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 17.30 | 278.55 | -5.03 | 21.46 | 0.2298 | -690.0 | -608.6 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 17.49 | 278.48 | -5.10 | 21.41 | 0.2331 | -658.0 | -488.6 | |
| 0.00 | 3.39 | 0.00 | 1.70 | 13.97 | 278.35 | -5.22 | 29.57 | 0.1799 | -948.0 | -669.8 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 13.99 | 278.01 | -5.56 | 31.05 | 0.1832 | -986.0 | -745.2 | |
| 0.00 | 3.13 | 0.00 | 1.59 | 16.69 | 277.75 | -5.82 | 25.64 | 0.2257 | -788.0 | -545.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.60 | 277.69 | -5.88 | 24.13 | 0.2401 | 799.0 | 598.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.36 | 277.60 | -5.97 | 24.89 | 0.2370 | 891.0 | 717.3 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 11.74 | 277.69 | -5.88 | 40.54 | 0.1550 | 981.0 | 751.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.93 | 277.55 | -6.03 | 33.28 | 0.1865 | -884.0 | -810.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 11.56 | 277.58 | -6.00 | 41.89 | 0.1541 | 995.0 | 773.0 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 13.03 | 277.48 | -6.09 | 36.53 | 0.1746 | 893.0 | 663.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 17.35 | 276.95 | -6.63 | 27.25 | 0.2418 | 896.0 | 630.1 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 15.98 | 276.93 | -6.64 | 30.27 | 0.2217 | 894.0 | 668.3 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 16.83 | 276.81 | -6.77 | 28.81 | 0.2352 | 817.0 | 694.7 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 16.65 | 276.72 | -6.86 | 29.51 | 0.2332 | 641.0 | 669.5 | |
| 1.65 | 30.30 | 0.84 | 15.49 | 17.13 | 276.42 | -7.16 | 29.51 | 0.2428 | 1078.6 | 862.6 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.52 | 276.29 | -7.29 | 31.32 | 0.2351 | 1022.0 | 866.3 | |
| 1.65 | -54.00 | 0.84 | -54.00 | 17.65 | 276.18 | -7.40 | 29.24 | 0.2523 | 1190.2 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.37 | 17.01 | 276.14 | -7.43 | 30.71 | 0.2433 | 827.0 | 725.5 | |
| 0.00 | 2.60 | 0.00 | 1.31 | 12.47 | 276.14 | -7.43 | 44.12 | 0.1823 | 1098.0 | 867.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 18.65 | 275.79 | -7.79 | 28.51 | 0.2702 | 818.0 | 694.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.85 | 275.52 | -8.06 | 33.11 | 0.2466 | 896.0 | 649.0 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 17.03 | 275.42 | -8.16 | 33.02 | 0.2501 | 1087.0 | 777.5 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.33 | 275.40 | -8.17 | 32.38 | 0.2545 | 911.0 | 713.5 | |
| 0.00 | 3.04 | 0.00 | 1.56 | 17.18 | 275.22 | -8.35 | 33.29 | 0.2540 | 998.0 | 847.1 | |
| 0.00 | 2.08 | 0.00 | 1.06 | 16.30 | 275.26 | -8.31 | 35.26 | 0.2415 | 700.0 | 718.7 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 11.86 | 275.39 | -8.18 | 49.29 | 0.1846 | 942.0 | 624.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.79 | 275.04 | -8.54 | 32.52 | 0.2642 | 794.0 | 634.6 | |
| 1.22 | 1.65 | 0.63 | 0.86 | 21.08 | 274.83 | -8.75 | 27.09 | 0.3130 | 869.6 | 782.4 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 20.49 | 274.70 | -8.88 | 28.38 | 0.3055 | 908.0 | 746.0 | |
| 0.00 | 2.78 | 0.00 | 1.42 | 15.65 | 274.76 | -8.82 | 38.53 | 0.2381 | 906.0 | 705.6 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.61 | 274.78 | -8.79 | 52.30 | 0.1901 | 789.0 | 601.3 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.37 | 274.33 | -9.24 | 54.69 | 0.1939 | 849.0 | 642.5 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 11.61 | 274.29 | -9.28 | 53.78 | 0.1968 | 924.0 | 748.9 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 18.07 | 271.55 | -12.03 | 41.04 | 0.3030 | 625.0 | 507.4 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 16.12 | 269.90 | -13.68 | 49.40 | 0.3006 | 862.0 | 631.4 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 19.31 | 268.90 | -14.68 | 43.80 | 0.3470 | 980.0 | 660.8 | |
| 0.00 | 2.69 | 0.00 | 1.40 | 14.00 | 268.39 | -15.19 | 58.00 | 0.3011 | 760.0 | 748.8 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 22.97 | 267.54 | -16.03 | 39.24 | 0.4037 | 908.0 | 737.8 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 16.54 | 268.13 | -15.44 | 51.57 | 0.3273 | 723.0 | 448.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 16.17 | 265.57 | -18.01 | 56.38 | 0.3581 | 804.0 | 598.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
