group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11324	16.57	219.66	8.70	117.47	12.39	303.64	20.61	292.10	0.3721	-55.6	-13.7

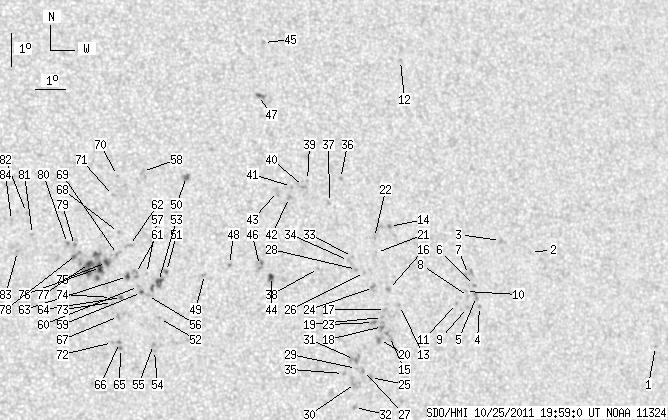

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-25 19:59:00 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.13	0.00	0.68	9.73	317.41	34.39	279.90	0.5673	-674.0	-530.1
2	0.00	0.95	0.00	0.55	12.75	313.29	30.26	286.54	0.5148	-686.0	-534.0
3	0.00	1.74	0.00	0.99	13.15	312.28	29.26	287.74	0.5017	-659.0	-567.3
4	0.00	1.22	0.00	0.69	11.21	311.32	28.30	284.23	0.4817	-731.0	-527.9
5	0.00	3.04	0.00	1.72	11.51	311.25	28.22	284.88	0.4815	-702.0	-627.9
6	0.00	1.39	0.00	0.78	11.84	311.22	28.19	285.57	0.4820	-780.0	-564.8
7	0.00	5.04	0.00	2.84	12.18	311.05	28.02	286.33	0.4805	-565.0	-678.7
8	0.00	1.13	0.00	0.64	11.52	310.97	27.95	285.01	0.4774	-727.0	-648.2
9	0.00	1.13	0.00	0.63	11.19	310.90	27.88	284.35	0.4755	-782.0	-619.8
10	0.00	1.39	0.00	0.78	11.67	310.89	27.86	285.36	0.4766	-736.0	-666.1
11	0.00	0.95	0.00	0.54	11.33	310.54	27.52	284.77	0.4704	-830.0	-639.4
12	0.00	1.22	0.00	0.69	18.74	309.62	26.59	300.11	0.4920	-789.0	-639.8
13	0.00	1.22	0.00	0.67	11.34	308.60	25.58	285.63	0.4414	-762.0	-678.9
14	0.00	1.48	0.00	0.82	13.72	308.52	25.49	290.88	0.4494	-854.0	-744.0
15	0.00	5.56	0.00	3.05	10.43	308.18	25.16	283.75	0.4323	-773.0	-572.4
16	0.00	2.26	0.00	1.24	11.83	308.28	25.26	286.88	0.4383	-921.0	-737.1
17	0.00	1.65	0.00	0.91	11.24	308.12	25.10	285.62	0.4338	-773.0	-731.2
18	0.00	3.82	0.00	2.09	10.73	307.98	24.95	284.54	0.4300	-1077.0	-848.8
19	0.00	1.22	0.00	0.67	11.00	308.00	24.98	285.14	0.4312	-800.0	-657.4
20	0.00	4.60	0.00	2.52	10.35	307.84	24.82	283.71	0.4268	-974.0	-728.3
21	0.00	0.87	0.00	0.48	12.96	307.99	24.97	289.54	0.4383	-684.0	-498.8
22	0.00	1.39	0.00	0.77	13.41	307.97	24.95	290.54	0.4400	-867.0	-710.1
23	0.00	2.34	0.00	1.28	10.86	307.69	24.66	284.97	0.4260	-1024.0	-832.9
24	0.00	3.56	0.00	1.95	11.91	307.78	24.76	287.32	0.4311	-861.0	-710.4
25	0.00	2.86	0.00	1.56	9.23	307.45	24.43	281.22	0.4180	-801.0	-584.8
26	0.00	1.13	0.00	0.62	12.37	307.53	24.50	288.50	0.4290	-922.0	-707.9
27	0.00	1.56	0.00	0.85	9.44	307.24	24.21	281.81	0.4151	-888.0	-712.3
28	0.00	1.13	0.00	0.62	12.47	307.27	24.25	288.88	0.4256	-900.0	-778.1
29	0.00	0.69	0.00	0.38	9.51	307.01	23.99	282.06	0.4117	-748.0	-555.2
30	0.00	7.90	0.00	4.29	9.06	306.94	23.92	281.00	0.4097	-648.0	-698.1
31	0.00	6.86	0.00	3.72	9.78	306.96	23.94	282.73	0.4117	-1021.0	-794.1
32	0.00	2.08	0.00	1.13	8.35	306.86	23.84	279.28	0.4069	-890.0	-682.5
33	0.00	0.78	0.00	0.43	12.87	307.17	24.15	289.84	0.4258	-791.0	-642.0
34	0.00	1.56	0.00	0.85	12.75	307.03	24.01	289.67	0.4232	-718.0	-513.2
35	0.00	1.48	0.00	0.80	9.38	306.57	23.55	281.90	0.4046	-921.0	-733.4
36	0.00	1.04	0.00	0.57	15.23	307.04	24.01	295.16	0.4356	-730.0	-596.7
37	0.00	1.48	0.00	0.81	14.52	306.58	23.56	293.96	0.4252	-641.0	-539.9
38	0.00	1.48	0.00	0.80	12.55	306.01	22.99	289.85	0.4070	525.0	215.5
39	0.00	0.69	0.00	0.38	15.21	305.92	22.90	296.03	0.4197	-725.0	-566.1
40	0.00	2.52	0.00	1.37	15.03	305.77	22.74	295.77	0.4164	-837.0	-654.3
41	0.00	1.13	0.00	0.61	15.04	305.37	22.34	296.15	0.4108	-834.0	-718.8
42	0.00	2.95	0.00	1.60	14.71	305.26	22.24	295.49	0.4073	-1005.0	-774.9
43	0.00	3.65	0.00	1.97	14.91	304.89	21.86	296.28	0.4031	-757.0	-611.9
44	2.43	4.60	1.30	2.46	12.36	304.44	21.42	290.51	0.3825	-956.6	-784.8
45	0.00	1.56	0.00	0.86	19.46	304.98	21.96	305.89	0.4371	-873.0	-769.9
46	0.00	6.16	0.00	3.30	12.70	304.08	21.05	291.66	0.3787	-476.0	-766.6
47	1.56	3.99	0.85	2.18	17.84	304.59	21.57	303.04	0.4193	-916.7	-901.7
48	0.00	1.39	0.00	0.74	12.76	303.10	20.08	292.65	0.3644	675.0	562.6
49	0.00	1.39	0.00	0.73	12.48	302.27	19.25	292.68	0.3504	-756.0	-617.9
50	0.00	3.30	0.00	1.75	15.45	301.94	18.92	300.69	0.3650	901.0	762.1
51	0.00	1.48	0.00	0.77	12.60	301.06	18.03	294.25	0.3328	783.0	644.6
52	0.00	1.13	0.00	0.59	11.20	300.74	17.71	290.51	0.3201	731.0	601.6
53	2.43	9.29	1.27	4.86	12.31	300.78	17.75	293.71	0.3268	838.1	728.5
54	0.00	1.65	0.00	0.86	10.25	300.52	17.50	287.80	0.3121	845.0	696.9
55	0.00	1.48	0.00	0.77	10.43	300.50	17.47	288.38	0.3126	957.0	812.6
56	0.00	1.82	0.00	0.95	11.90	300.40	17.37	292.93	0.3187	747.0	593.6
57	0.00	0.52	0.00	0.27	12.56	300.41	17.39	294.84	0.3229	717.0	567.3
58	0.00	2.08	0.00	1.10	15.64	300.53	17.50	303.00	0.3468	692.0	628.3
59	0.43	1.04	0.23	0.54	11.99	300.21	17.19	293.41	0.3164	934.6	812.9
60	0.00	1.04	0.00	0.54	12.18	300.13	17.11	294.04	0.3162	854.0	643.5
61	0.00	4.25	0.00	2.22	12.57	300.06	17.04	295.27	0.3177	648.0	701.9
62	0.00	3.13	0.00	1.63	13.42	299.93	16.90	297.87	0.3214	806.0	645.3
63	1.39	4.08	0.72	2.13	12.49	299.80	16.78	295.34	0.3132	1001.8	775.5
64	0.00	1.13	0.00	0.59	11.86	299.57	16.54	293.74	0.3058	951.0	857.3
65	0.00	1.82	0.00	0.94	10.33	299.45	16.42	289.05	0.2956	1005.0	803.9
66	0.00	1.48	0.00	0.77	10.51	299.43	16.40	289.65	0.2961	1151.0	910.6
67	0.00	1.91	0.00	0.99	11.29	299.44	16.42	292.12	0.3005	882.0	696.1
68	0.00	1.22	0.00	0.64	13.82	299.61	16.58	299.43	0.3196	687.0	544.8
69	0.00	2.95	0.00	1.54	13.15	299.53	16.50	297.65	0.3137	899.0	727.0
70	0.00	1.04	0.00	0.55	15.54	299.71	16.68	303.91	0.3348	733.0	540.4
71	0.00	1.13	0.00	0.59	14.94	299.53	16.51	302.60	0.3273	833.0	685.5
72	0.00	1.22	0.00	0.63	10.52	299.20	16.18	289.89	0.2927	816.0	604.1
73	0.00	0.95	0.00	0.50	11.72	299.27	16.25	293.64	0.3004	648.0	578.5
74	0.00	0.78	0.00	0.41	11.87	299.25	16.23	294.14	0.3010	767.0	666.3
75	1.82	43.84	0.95	22.76	12.92	299.16	16.14	297.45	0.3066	932.0	854.2
76	4.25	-75.00	2.21	-75.00	12.78	298.96	15.94	297.29	0.3026	1103.1	999999
77	2.26	-75.00	1.17	-75.00	12.91	298.62	15.59	298.15	0.2985	1113.3	999999
78	0.00	4.17	0.00	2.16	13.19	298.22	15.20	299.58	0.2949	1012.0	879.4
79	0.00	1.65	0.00	0.86	13.46	298.18	15.15	300.47	0.2963	1102.0	844.4
80	0.00	1.30	0.00	0.67	13.52	297.96	14.94	301.01	0.2937	960.0	838.8
81	0.00	1.13	0.00	0.58	13.82	296.87	13.85	303.75	0.2808	934.0	707.3
82	0.00	1.04	0.00	0.54	14.48	296.72	13.70	306.02	0.2848	697.0	563.7
83	0.00	1.30	0.00	0.67	13.31	296.37	13.34	303.11	0.2693	835.0	629.6
84	0.00	0.95	0.00	0.49	14.25	296.23	13.21	306.28	0.2760	817.0	700.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
