SDO HMI 2011-10-25 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.51 | 0.00 | 2.91 | 14.88 | 242.57 | -39.35 | 72.73 | 0.6438 | -80.0 | -23.4 | |
|
previous
or next observation for the same group /

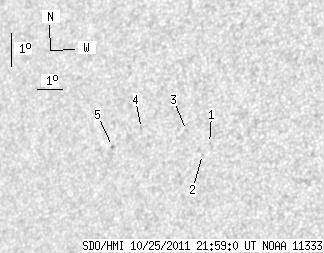

back to the solar disc SDO HMI 2011-10-25 21:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.44 | 14.84 | 244.18 | -37.74 | 72.35 | 0.6231 | -567.0 | -430.1 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 14.50 | 243.98 | -37.94 | 72.95 | 0.6249 | -593.0 | -457.8 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 15.18 | 243.20 | -38.72 | 72.10 | 0.6366 | -608.0 | -421.4 | |
| 0.00 | 1.04 | 0.00 | 0.68 | 15.15 | 241.40 | -40.52 | 72.64 | 0.6594 | 518.0 | 409.1 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 14.54 | 240.35 | -41.57 | 73.79 | 0.6711 | 850.0 | 762.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
