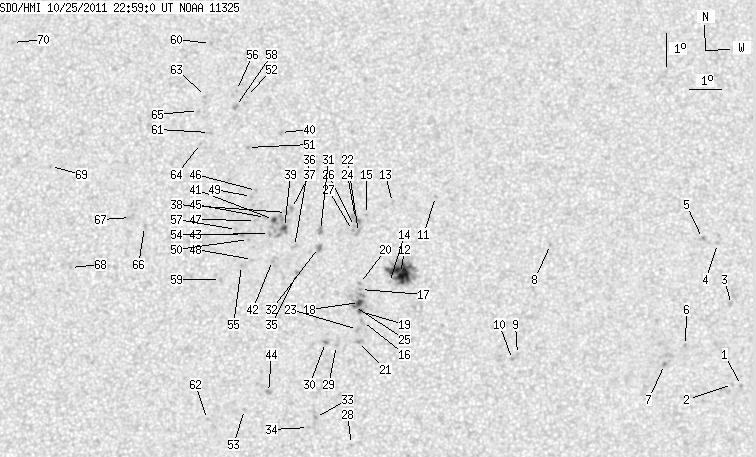

SDO HMI 2011-10-25 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.22 | 205.61 | 17.29 | 104.32 | 16.56 | 278.47 | -2.89 | 8.93 | 0.2151 | -57.7 | 2.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-25 22:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.62 | 290.69 | 9.32 | 310.18 | 0.2078 | -830.0 | -695.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 12.66 | 290.41 | 9.04 | 311.14 | 0.2046 | -915.0 | -615.3 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 15.07 | 290.47 | 9.11 | 318.96 | 0.2339 | -801.0 | -642.7 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 16.93 | 290.12 | 8.75 | 324.92 | 0.2545 | -710.0 | -614.5 | |
| 0.00 | 2.08 | 0.00 | 1.07 | 17.08 | 289.65 | 8.29 | 326.72 | 0.2522 | -927.0 | -777.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 13.85 | 289.00 | 7.63 | 320.11 | 0.2020 | -806.0 | -670.9 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 13.28 | 288.33 | 6.96 | 320.74 | 0.1873 | -1056.0 | -854.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 16.94 | 284.89 | 3.52 | 344.14 | 0.2160 | -779.0 | -588.3 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 13.62 | 283.82 | 2.45 | 344.46 | 0.1560 | -665.0 | -534.2 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 13.47 | 283.66 | 2.30 | 345.14 | 0.1528 | -963.0 | -751.5 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 18.42 | 281.30 | -0.06 | 0.26 | 0.2328 | -804.0 | -547.5 | |
| 24.84 | 50.45 | 12.54 | 25.47 | 16.07 | 280.22 | -1.15 | 5.73 | 0.1936 | -1157.8 | -608.0 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 18.23 | 279.95 | -1.41 | 5.84 | 0.2309 | -837.0 | -611.9 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 15.80 | 279.88 | -1.49 | 7.60 | 0.1895 | -587.0 | -453.9 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 17.86 | 279.14 | -2.22 | 9.43 | 0.2265 | -802.0 | -666.1 | |
| 0.00 | 2.61 | 0.00 | 1.31 | 14.61 | 279.06 | -2.31 | 13.16 | 0.1720 | -836.0 | -741.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.58 | 278.98 | -2.38 | 12.32 | 0.1886 | -837.0 | -697.3 | |
| 3.21 | 18.24 | 1.62 | 9.19 | 15.19 | 278.96 | -2.41 | 12.93 | 0.1821 | -1084.7 | -708.8 | |
| 1.48 | -18.00 | 0.74 | -18.00 | 14.91 | 278.96 | -2.41 | 13.27 | 0.1775 | -1222.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 15.76 | 278.95 | -2.42 | 12.27 | 0.1917 | -856.0 | -683.3 | |
| 0.00 | 3.30 | 0.00 | 1.66 | 14.01 | 278.94 | -2.43 | 14.72 | 0.1624 | -1020.0 | -813.3 | |
| 0.00 | 3.13 | 0.00 | 1.59 | 17.31 | 278.90 | -2.47 | 10.92 | 0.2179 | -1120.0 | -842.0 | |
| 0.00 | 2.43 | 0.00 | 1.22 | 14.37 | 278.91 | -2.46 | 14.35 | 0.1686 | -1049.0 | -825.5 | |
| 0.00 | 6.95 | 0.00 | 3.53 | 17.74 | 278.80 | -2.57 | 10.95 | 0.2254 | -823.0 | -774.5 | |
| 0.26 | -18.00 | 0.13 | -18.00 | 15.07 | 278.81 | -2.56 | 13.89 | 0.1806 | -1020.0 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.50 | 278.77 | -2.59 | 11.29 | 0.2214 | -780.0 | -712.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 17.37 | 278.71 | -2.65 | 11.67 | 0.2196 | -882.0 | -809.9 | |
| 0.00 | 0.87 | 0.00 | 0.43 | 10.91 | 278.76 | -2.61 | 23.51 | 0.1126 | 777.0 | 583.2 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.89 | 278.27 | -3.10 | 18.80 | 0.1637 | -850.0 | -629.1 | |
| 0.00 | 2.00 | 0.00 | 1.00 | 13.97 | 277.93 | -3.44 | 20.49 | 0.1671 | -1128.0 | -890.5 | |
| 0.00 | 3.91 | 0.00 | 1.99 | 17.37 | 277.71 | -3.65 | 15.87 | 0.2236 | 1044.0 | 784.7 | |
| 0.00 | 4.17 | 0.00 | 2.11 | 16.85 | 277.66 | -3.71 | 16.78 | 0.2153 | -338.0 | -327.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 11.72 | 277.65 | -3.71 | 28.50 | 0.1336 | 1150.0 | 858.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 11.42 | 277.44 | -3.92 | 31.00 | 0.1308 | 876.0 | 555.6 | |
| 0.00 | 2.69 | 0.00 | 1.36 | 16.09 | 277.02 | -4.34 | 20.74 | 0.2065 | 915.0 | 724.8 | |
| 0.00 | 2.78 | 0.00 | 1.41 | 16.88 | 276.91 | -4.46 | 19.87 | 0.2198 | 881.0 | 604.3 | |
| 0.00 | 2.87 | 0.00 | 1.46 | 18.04 | 276.79 | -4.58 | 18.61 | 0.2390 | 903.0 | 746.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 17.91 | 276.63 | -4.73 | 19.36 | 0.2379 | 862.0 | 737.5 | |
| 2.43 | 21.54 | 1.24 | 10.97 | 17.45 | 276.58 | -4.78 | 20.25 | 0.2309 | 1114.7 | 893.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 20.37 | 276.37 | -5.00 | 17.12 | 0.2786 | 809.0 | 648.2 | |
| 2.00 | -39.00 | 1.02 | -39.00 | 17.70 | 276.23 | -5.14 | 21.21 | 0.2368 | 1164.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.45 | 276.23 | -5.13 | 23.38 | 0.2172 | 785.0 | 768.1 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 17.27 | 276.12 | -5.25 | 22.35 | 0.2308 | 1042.0 | 884.0 | |
| 0.00 | 2.52 | 0.00 | 1.26 | 12.46 | 276.20 | -5.16 | 34.09 | 0.1575 | 970.0 | 847.8 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 17.75 | 275.98 | -5.39 | 22.05 | 0.2393 | 702.0 | 704.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 18.58 | 275.67 | -5.70 | 21.84 | 0.2542 | 752.0 | 646.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.66 | 275.67 | -5.70 | 23.34 | 0.2399 | 807.0 | 638.9 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.47 | 275.61 | -5.76 | 25.80 | 0.2220 | 932.0 | 689.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 18.39 | 275.52 | -5.85 | 22.65 | 0.2523 | 833.0 | 692.5 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.08 | 275.47 | -5.90 | 25.14 | 0.2324 | 1044.0 | 879.9 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 19.90 | 275.34 | -6.03 | 21.01 | 0.2768 | 875.0 | 745.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 21.48 | 275.24 | -6.13 | 19.29 | 0.3020 | 647.0 | 527.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 11.94 | 275.48 | -5.89 | 39.67 | 0.1579 | 984.0 | 717.7 | |
| 0.00 | 2.69 | 0.00 | 1.37 | 17.23 | 275.27 | -6.09 | 25.56 | 0.2361 | 1051.0 | 837.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 16.29 | 275.27 | -6.09 | 27.49 | 0.2218 | 1042.0 | 799.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 21.66 | 274.91 | -6.46 | 20.02 | 0.3067 | 729.0 | 597.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.38 | 275.08 | -6.29 | 25.97 | 0.2398 | 853.0 | 651.6 | |
| 0.00 | 2.78 | 0.00 | 1.44 | 21.16 | 274.90 | -6.47 | 20.66 | 0.2990 | 982.0 | 788.0 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 15.85 | 274.63 | -6.74 | 30.89 | 0.2208 | 900.0 | 708.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 23.12 | 273.99 | -7.37 | 20.76 | 0.3344 | 842.0 | 697.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 20.35 | 274.10 | -7.26 | 24.10 | 0.2917 | 814.0 | 647.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 11.63 | 274.35 | -7.01 | 45.92 | 0.1672 | 863.0 | 721.2 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 21.46 | 273.92 | -7.45 | 23.03 | 0.3097 | 834.0 | 656.8 | |
| 0.00 | 0.52 | 0.00 | 0.27 | 20.01 | 273.83 | -7.54 | 25.42 | 0.2884 | 664.0 | 459.3 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 21.03 | 273.72 | -7.65 | 24.20 | 0.3045 | 746.0 | 556.7 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.44 | 272.18 | -9.19 | 35.18 | 0.2656 | 708.0 | 659.6 | |
| 0.00 | 4.17 | 0.00 | 2.15 | 17.71 | 271.72 | -9.65 | 35.86 | 0.2737 | 802.0 | 644.8 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.16 | 269.91 | -11.46 | 44.41 | 0.2740 | 933.0 | 755.1 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 19.23 | 269.06 | -12.31 | 39.13 | 0.3203 | 770.0 | 569.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 23.05 | 267.47 | -13.90 | 35.32 | 0.3839 | 895.0 | 688.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
