group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11324	24.49	178.31	13.15	96.75	12.44	302.99	22.72	290.53	0.4036	67.3	73.6

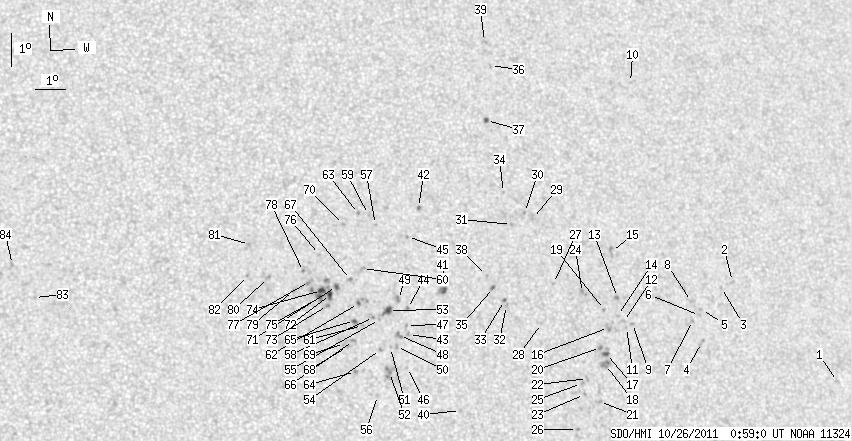

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-26 00:59:00 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.78	0.00	0.48	9.50	316.00	35.74	279.32	0.5860	-739.0	-517.6
2	0.00	1.91	0.00	1.13	12.67	312.57	32.30	285.70	0.5437	-652.0	-575.5
3	0.00	1.04	0.00	0.61	12.51	312.15	31.88	285.55	0.5373	-656.0	-497.8
4	0.00	2.52	0.00	1.46	10.90	311.23	30.96	282.81	0.5201	-585.0	-540.6
5	0.00	0.87	0.00	0.50	11.89	311.35	31.08	284.64	0.5242	-621.0	-533.1
6	0.00	1.30	0.00	0.76	11.71	311.25	30.99	284.34	0.5224	-631.0	-610.5
7	0.00	0.96	0.00	0.55	11.57	310.99	30.72	284.16	0.5182	-755.0	-675.1
8	0.00	1.13	0.00	0.65	12.14	311.02	30.76	285.23	0.5203	-740.0	-630.8
9	0.00	1.74	0.00	0.98	11.57	308.88	28.62	284.88	0.4875	-650.0	-485.4
10	0.00	1.13	0.00	0.66	18.85	309.92	29.66	298.11	0.5330	-526.0	-436.8
11	0.00	0.87	0.00	0.49	11.46	308.66	28.40	284.74	0.4840	-699.0	-556.3
12	0.00	2.00	0.00	1.13	11.64	308.58	28.31	285.15	0.4832	-573.0	-452.7
13	0.00	1.74	0.00	0.98	12.37	308.45	28.19	286.68	0.4837	-721.0	-653.6
14	0.00	1.39	0.00	0.78	11.83	308.39	28.13	285.60	0.4811	-900.0	-607.5
15	0.00	3.65	0.00	2.07	13.76	308.42	28.15	289.48	0.4881	-740.0	-651.3
16	0.00	3.73	0.00	2.10	11.48	308.04	27.78	285.03	0.4749	-884.0	-756.0
17	2.17	4.52	1.22	2.53	10.71	307.90	27.63	283.46	0.4705	-967.0	-767.5
18	0.00	7.56	0.00	4.23	10.38	307.83	27.56	282.79	0.4687	-856.0	-738.0
19	0.00	1.13	0.00	0.63	12.03	307.97	27.70	286.19	0.4754	-923.0	-797.5
20	0.00	1.74	0.00	0.97	10.90	307.71	27.44	283.92	0.4682	-916.0	-845.4
21	0.00	2.08	0.00	1.16	9.28	307.53	27.26	280.54	0.4617	-772.0	-523.8
22	0.00	1.82	0.00	1.02	9.99	307.18	26.91	282.16	0.4579	-782.0	-670.0
23	0.00	1.13	0.00	0.63	9.51	307.04	26.77	281.17	0.4547	-847.0	-732.9
24	0.00	3.47	0.00	1.94	12.57	307.27	27.01	287.63	0.4670	-905.0	-670.7
25	0.00	1.30	0.00	0.72	9.84	306.96	26.70	281.92	0.4543	-684.0	-666.1
26	0.00	1.04	0.00	0.58	8.48	306.72	26.45	278.97	0.4479	-767.0	-710.3
27	0.00	1.13	0.00	0.63	12.87	306.31	26.05	288.77	0.4540	-893.0	-653.2
28	0.00	1.13	0.00	0.62	11.69	305.78	25.52	286.47	0.4417	595.0	437.5
29	0.00	1.04	0.00	0.58	14.86	305.83	25.57	293.26	0.4560	-822.0	-702.8
30	0.00	1.13	0.00	0.63	15.05	305.59	25.32	293.83	0.4534	-832.0	-711.5
31	0.00	1.04	0.00	0.58	14.70	305.10	24.83	293.45	0.4447	-905.0	-738.2
32	0.00	2.35	0.00	1.28	12.27	304.66	24.40	288.37	0.4271	-844.0	-546.9
33	1.13	1.39	0.62	0.76	12.42	304.61	24.35	288.75	0.4270	-846.7	-616.0
34	0.00	1.04	0.00	0.58	15.68	304.95	24.68	295.62	0.4478	-724.0	-523.0
35	0.78	2.17	0.43	1.19	12.83	304.28	24.02	289.87	0.4238	-854.8	-823.0
36	0.00	1.48	0.00	0.83	19.56	305.07	24.81	303.22	0.4745	-669.0	-556.9
37	1.82	2.35	1.02	1.31	17.89	304.67	24.41	300.35	0.4576	-863.1	-848.0
38	0.00	1.22	0.00	0.66	13.20	304.09	23.82	290.84	0.4225	-721.0	-638.0
39	0.00	1.82	0.00	1.03	20.31	304.99	24.72	304.68	0.4789	-620.0	-543.6
40	0.00	1.22	0.00	0.65	9.18	302.88	22.62	281.81	0.3896	655.0	443.7
41	2.26	5.39	1.22	2.91	12.79	302.65	22.38	290.90	0.3992	-878.1	-485.6
42	0.00	1.39	0.00	0.75	15.32	302.04	21.78	297.34	0.4046	859.0	740.6
43	0.00	1.65	0.00	0.88	11.51	301.36	21.09	288.64	0.3738	469.0	295.5
44	0.00	0.78	0.00	0.42	12.29	301.39	21.12	290.62	0.3778	795.0	711.4
45	0.00	1.30	0.00	0.70	14.46	301.59	21.32	295.76	0.3927	807.0	654.4
46	0.00	1.04	0.00	0.55	10.52	301.25	20.98	286.12	0.3681	512.0	416.4
47	0.00	1.22	0.00	0.65	11.78	301.31	21.05	289.37	0.3743	686.0	563.0
48	0.00	3.56	0.00	1.90	11.49	301.06	20.80	288.80	0.3691	804.0	711.0
49	0.00	2.35	0.00	1.25	12.57	301.12	20.85	291.54	0.3751	822.0	663.9
50	0.00	1.91	0.00	1.02	11.16	300.94	20.67	288.02	0.3658	616.0	540.7
51	0.00	1.13	0.00	0.60	11.14	300.74	20.48	288.10	0.3627	665.0	534.0
52	0.00	7.56	0.00	4.01	10.39	300.66	20.39	286.14	0.3583	973.0	786.5
53	3.82	6.34	2.03	3.37	12.25	300.76	20.50	291.01	0.3682	806.5	861.6
54	0.00	1.22	0.00	0.64	11.09	300.41	20.15	288.20	0.3574	872.0	725.8
55	0.00	0.52	0.00	0.28	11.99	300.45	20.18	290.58	0.3621	724.0	620.3
56	0.00	0.87	0.00	0.46	9.71	300.23	19.96	284.53	0.3491	579.0	477.5
57	0.00	1.13	0.00	0.60	14.85	300.57	20.31	297.71	0.3805	634.0	529.7
58	0.00	0.78	0.00	0.41	12.05	300.26	19.99	290.91	0.3596	1000.0	767.0
59	0.00	1.30	0.00	0.70	15.16	300.37	20.11	298.66	0.3798	731.0	585.3
60	0.00	2.43	0.00	1.29	13.54	300.02	19.76	295.00	0.3642	815.0	685.0
61	0.00	1.04	0.00	0.55	11.82	299.89	19.62	290.61	0.3527	677.0	509.9
62	0.87	5.12	0.46	2.72	12.49	299.81	19.54	292.47	0.3550	927.2	742.7
63	0.00	1.13	0.00	0.60	15.20	300.05	19.78	299.11	0.3755	895.0	687.5
64	0.00	1.56	0.00	0.82	10.45	299.56	19.30	287.05	0.3415	1096.0	875.6
65	1.30	2.08	0.69	1.10	11.98	299.64	19.37	291.25	0.3497	865.2	806.2
66	0.00	2.17	0.00	1.15	11.38	299.56	19.30	289.67	0.3456	876.0	662.6
67	0.00	2.17	0.00	1.15	13.22	299.61	19.34	294.59	0.3561	934.0	728.4
68	0.00	0.87	0.00	0.46	11.21	299.36	19.09	289.35	0.3416	876.0	711.9
69	0.00	2.08	0.00	1.10	11.30	299.27	19.00	289.69	0.3406	723.0	694.9
70	0.00	1.30	0.00	0.69	14.88	299.53	19.26	298.92	0.3658	912.0	755.7
71	2.17	2.69	1.15	1.42	13.02	299.14	18.87	294.54	0.3480	868.7	586.3
72	3.13	23.63	1.65	12.44	12.78	298.93	18.66	294.13	0.3434	1028.6	861.1
73	0.00	1.56	0.00	0.82	12.45	298.80	18.54	293.35	0.3397	1012.0	781.4
74	3.13	-72.00	1.65	-72.00	12.91	298.64	18.38	294.77	0.3400	1095.6	999999
75	1.91	-72.00	1.01	-72.00	12.70	298.56	18.30	294.28	0.3375	1139.2	999999
76	0.00	1.39	0.00	0.73	14.00	298.67	18.40	297.66	0.3474	698.0	522.1
77	0.00	2.78	0.00	1.46	13.19	298.28	18.01	295.95	0.3363	905.0	849.9
78	0.00	1.04	0.00	0.55	13.50	298.11	17.85	296.98	0.3359	882.0	686.9
79	0.00	1.39	0.00	0.73	12.93	297.75	17.48	295.85	0.3268	975.0	746.4
80	0.00	2.00	0.00	1.04	13.35	296.98	16.71	297.97	0.3182	805.0	657.0
81	0.00	1.48	0.00	0.77	14.35	296.44	16.18	301.55	0.3181	770.0	650.9
82	0.00	1.04	0.00	0.54	13.42	296.31	16.05	299.10	0.3090	909.0	719.8
83	0.00	1.30	0.00	0.66	12.88	289.60	9.33	311.16	0.2109	-742.0	-532.5
84	0.00	1.56	0.00	0.79	13.89	288.95	8.69	316.65	0.2146	-765.0	-651.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
