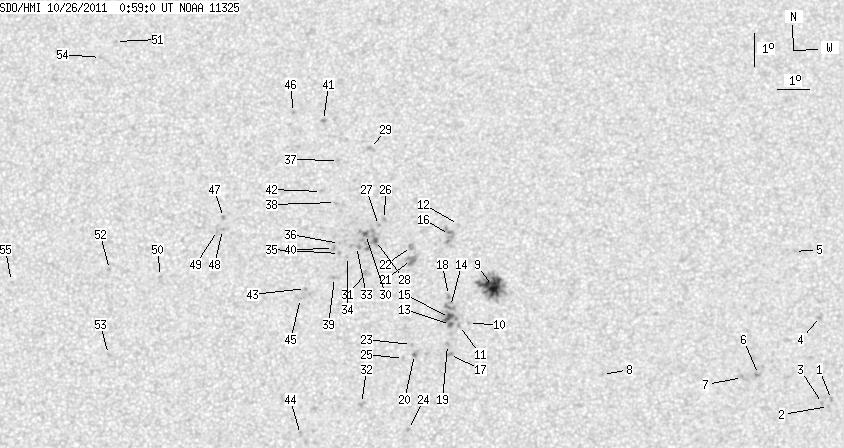

SDO HMI 2011-10-26 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.74 | 207.02 | 17.54 | 104.93 | 16.37 | 278.37 | -1.90 | 356.59 | 0.2112 | -96.3 | 4.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.79 | 12.60 | 290.67 | 10.41 | 307.14 | 0.2221 | -823.0 | -590.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 12.39 | 290.57 | 10.30 | 306.62 | 0.2187 | -730.0 | -521.2 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 12.48 | 290.39 | 10.12 | 307.45 | 0.2171 | -896.0 | -698.0 | |
| 0.00 | 2.61 | 0.00 | 1.33 | 15.11 | 290.44 | 10.17 | 316.01 | 0.2467 | -878.0 | -660.2 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.09 | 289.72 | 9.46 | 323.27 | 0.2638 | -913.0 | -728.6 | |
| 0.00 | 2.26 | 0.00 | 1.14 | 13.38 | 288.44 | 8.17 | 316.65 | 0.2024 | -871.0 | -835.3 | |
| 0.00 | 3.91 | 0.00 | 1.97 | 13.30 | 287.94 | 7.68 | 318.11 | 0.1956 | -880.0 | -714.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.42 | 283.63 | 3.37 | 338.68 | 0.1580 | -1018.0 | -756.2 | |
| 23.80 | 53.59 | 12.01 | 27.05 | 16.09 | 280.26 | 0.00 | 360.00 | 0.1931 | -1191.3 | -567.0 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 14.97 | 279.52 | -0.74 | 4.13 | 0.1742 | -853.0 | -611.3 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 14.91 | 279.25 | -1.02 | 5.70 | 0.1736 | -907.0 | -756.7 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 17.98 | 279.20 | -1.07 | 4.51 | 0.2262 | -784.0 | -651.6 | |
| 1.82 | 15.29 | 0.92 | 7.69 | 14.94 | 278.97 | -1.30 | 7.22 | 0.1747 | -1197.9 | -695.7 | |
| 0.00 | 6.17 | 0.00 | 3.11 | 15.48 | 278.97 | -1.30 | 6.85 | 0.1840 | -807.0 | -738.8 | |
| 4.95 | -13.00 | 2.49 | -13.00 | 15.15 | 278.94 | -1.33 | 7.24 | 0.1783 | -1070.9 | 999999 | |
| 0.00 | 9.64 | 0.00 | 4.90 | 17.67 | 278.92 | -1.35 | 5.83 | 0.2214 | -646.0 | -862.3 | |
| 0.00 | 2.78 | 0.00 | 1.39 | 14.03 | 278.94 | -1.32 | 8.12 | 0.1592 | -1147.0 | -870.1 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 15.82 | 278.90 | -1.36 | 6.96 | 0.1898 | -769.0 | -657.3 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 14.33 | 278.88 | -1.38 | 8.22 | 0.1645 | -1165.0 | -852.9 | |
| 0.35 | 2.78 | 0.17 | 1.40 | 14.03 | 277.87 | -2.40 | 14.50 | 0.1628 | -1027.8 | -799.7 | |
| 0.00 | 8.43 | 0.00 | 4.27 | 16.91 | 277.74 | -2.52 | 11.55 | 0.2115 | 7.0 | -100.7 | |
| 0.00 | 3.91 | 0.00 | 1.98 | 17.30 | 277.74 | -2.53 | 11.19 | 0.2182 | 851.0 | 688.0 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 14.33 | 277.77 | -2.49 | 14.57 | 0.1682 | -742.0 | -581.7 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.77 | 277.71 | -2.56 | 20.34 | 0.1263 | 1035.0 | 840.0 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.91 | 277.53 | -2.73 | 16.65 | 0.1623 | -618.0 | -486.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 18.13 | 276.88 | -3.39 | 13.90 | 0.2350 | 892.0 | 729.5 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 17.94 | 276.69 | -3.57 | 14.83 | 0.2327 | 943.0 | 794.2 | |
| 2.00 | 24.15 | 1.02 | 12.28 | 17.48 | 276.61 | -3.66 | 15.72 | 0.2256 | 1084.8 | 884.0 | |
| 0.00 | 3.56 | 0.00 | 1.83 | 20.31 | 276.38 | -3.88 | 13.52 | 0.2728 | 860.0 | 685.8 | |
| 1.82 | -28.00 | 0.93 | -28.00 | 17.66 | 276.29 | -3.98 | 16.76 | 0.2301 | 1188.2 | 999999 | |
| 0.00 | 4.86 | 0.00 | 2.46 | 16.48 | 276.31 | -3.95 | 18.36 | 0.2106 | 999.0 | 715.2 | |
| 0.00 | 2.61 | 0.00 | 1.31 | 12.55 | 276.26 | -4.00 | 27.41 | 0.1487 | 933.0 | 779.8 | |
| 0.00 | 4.60 | 0.00 | 2.34 | 17.30 | 276.02 | -4.25 | 18.37 | 0.2255 | 932.0 | 809.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.99 | 275.74 | -4.52 | 19.94 | 0.2221 | 799.0 | 687.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.08 | 275.49 | -4.78 | 20.81 | 0.2250 | 1083.0 | 843.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.38 | 275.48 | -4.78 | 20.35 | 0.2299 | 734.0 | 520.9 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 19.93 | 275.38 | -4.89 | 17.26 | 0.2712 | 797.0 | 690.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 18.64 | 275.32 | -4.94 | 19.09 | 0.2508 | 775.0 | 655.8 | |
| 0.00 | 3.39 | 0.00 | 1.72 | 16.35 | 275.35 | -4.91 | 22.65 | 0.2144 | 907.0 | 664.5 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 17.23 | 275.30 | -4.97 | 21.31 | 0.2286 | 1006.0 | 795.8 | |
| 0.00 | 2.35 | 0.00 | 1.21 | 21.16 | 274.86 | -5.41 | 17.51 | 0.2934 | 1027.0 | 816.9 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 18.97 | 274.87 | -5.40 | 20.21 | 0.2587 | 612.0 | 589.4 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 16.01 | 274.46 | -5.81 | 26.96 | 0.2155 | 853.0 | 677.9 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 11.60 | 274.41 | -5.85 | 40.90 | 0.1532 | 757.0 | 649.3 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 15.70 | 274.31 | -5.95 | 28.23 | 0.2121 | 882.0 | 692.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 21.40 | 273.88 | -6.38 | 20.11 | 0.3024 | 954.0 | 762.0 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 18.14 | 271.80 | -8.47 | 31.52 | 0.2688 | 880.0 | 732.3 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.78 | 271.78 | -8.48 | 32.33 | 0.2638 | 989.0 | 838.8 | |
| 0.00 | 3.73 | 0.00 | 1.92 | 17.74 | 271.63 | -8.64 | 32.87 | 0.2647 | 810.0 | 527.2 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.32 | 269.90 | -10.36 | 41.17 | 0.2635 | 798.0 | 618.2 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 23.54 | 267.91 | -12.35 | 31.52 | 0.3767 | 704.0 | 508.4 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 16.50 | 268.27 | -11.99 | 44.73 | 0.2843 | 798.0 | 640.6 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 13.93 | 268.39 | -11.87 | 51.85 | 0.2551 | 867.0 | 681.8 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 23.03 | 267.46 | -12.80 | 33.22 | 0.3738 | 815.0 | 604.4 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 16.08 | 265.17 | -15.09 | 52.08 | 0.3185 | 711.0 | 544.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
