group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11324	13.11	176.69	7.10	96.20	12.68	302.77	23.05	290.91	0.4097	-29.2	64.0

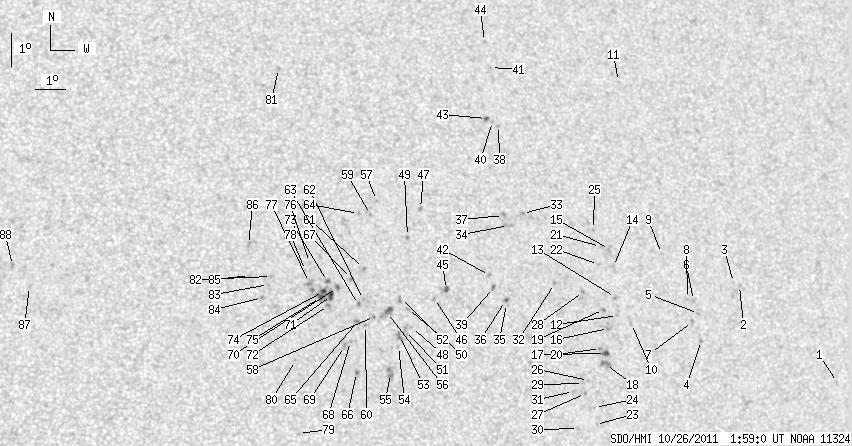

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-26 01:59:00 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.39	0.00	0.85	9.47	316.05	36.33	279.19	0.5943	-648.0	-564.9
2	0.00	1.22	0.00	0.72	12.54	312.83	33.12	285.22	0.5549	-499.0	-467.5
3	0.00	0.69	0.00	0.41	12.64	312.63	32.92	285.46	0.5523	-624.0	-518.6
4	0.00	1.65	0.00	0.96	10.96	311.25	31.54	282.77	0.5287	-640.0	-536.4
5	0.00	1.22	0.00	0.71	11.77	311.25	31.53	284.30	0.5304	-874.0	-666.1
6	0.00	1.74	0.00	1.01	12.17	311.12	31.40	285.08	0.5296	-841.0	-650.7
7	0.00	1.91	0.00	1.11	11.54	311.00	31.29	283.94	0.5264	-733.0	-647.7
8	0.00	1.13	0.00	0.66	12.24	310.91	31.20	285.28	0.5269	-706.0	-570.4
9	0.00	0.96	0.00	0.55	13.63	310.18	30.46	288.17	0.5206	-534.0	-408.0
10	0.00	0.78	0.00	0.45	11.57	308.86	29.14	284.71	0.4953	-652.0	-444.7
11	0.00	0.35	0.00	0.20	18.91	309.53	29.81	298.10	0.5353	-598.0	-652.0
12	0.00	1.22	0.00	0.69	11.83	308.40	28.68	285.40	0.4893	-772.0	-624.9
13	0.00	1.39	0.00	0.79	12.38	308.39	28.68	286.49	0.4909	-788.0	-707.7
14	0.00	1.74	0.00	0.99	13.31	308.44	28.73	288.33	0.4947	-612.0	-502.0
15	0.00	3.30	0.00	1.88	13.83	308.37	28.65	289.38	0.4956	-854.0	-659.1
16	0.00	2.43	0.00	1.37	11.46	308.04	28.33	284.77	0.4830	-867.0	-758.0
17	2.61	3.65	1.47	2.06	10.71	307.86	28.15	283.31	0.4783	-966.1	-865.8
18	0.00	6.95	0.00	3.91	10.39	307.83	28.11	282.64	0.4770	-792.0	-733.9
19	0.00	1.39	0.00	0.79	12.03	307.94	28.22	285.99	0.4831	-870.0	-776.5
20	0.00	1.39	0.00	0.78	10.87	307.71	27.99	283.69	0.4763	-990.0	-834.5
21	0.00	1.04	0.00	0.59	13.93	308.07	28.35	289.73	0.4917	-800.0	-598.9
22	0.00	1.39	0.00	0.79	13.39	307.93	28.21	288.73	0.4876	-802.0	-626.1
23	0.00	0.35	0.00	0.19	8.61	307.33	27.61	279.01	0.4660	-339.0	-467.5
24	0.00	1.30	0.00	0.73	9.12	307.34	27.62	280.10	0.4669	-640.0	-431.3
25	0.00	1.04	0.00	0.59	14.45	307.89	28.18	290.85	0.4913	-658.0	-510.4
26	0.00	0.96	0.00	0.53	9.93	307.20	27.49	281.87	0.4665	-848.0	-689.3
27	0.00	1.04	0.00	0.58	9.55	307.07	27.35	281.09	0.4636	-840.0	-739.3
28	0.00	1.56	0.00	0.88	12.60	307.31	27.60	287.43	0.4758	-912.0	-766.1
29	0.00	1.56	0.00	0.87	9.85	307.03	27.31	281.75	0.4637	-746.0	-740.9
30	0.00	0.69	0.00	0.39	8.51	306.74	27.03	278.93	0.4569	-846.0	-626.6
31	0.00	0.52	0.00	0.29	9.62	306.67	26.95	281.37	0.4577	-847.0	-719.8
32	0.00	1.48	0.00	0.82	12.88	306.35	26.63	288.48	0.4627	-929.0	-714.2
33	0.00	1.91	0.00	1.07	15.03	305.51	25.80	293.47	0.4601	-871.0	-675.2
34	0.00	3.91	0.00	2.17	14.68	304.99	25.28	293.11	0.4509	-669.0	-654.5
35	0.00	0.69	0.00	0.38	12.34	304.66	24.94	288.22	0.4356	-398.0	-476.5
36	0.69	1.74	0.38	0.96	12.43	304.63	24.92	288.44	0.4356	-760.1	-771.2
37	0.00	2.17	0.00	1.20	14.99	304.86	25.14	293.85	0.4506	-699.0	-691.2
38	0.00	1.56	0.00	0.88	17.73	305.07	25.35	299.23	0.4693	-846.0	-701.6
39	0.00	2.17	0.00	1.19	12.84	304.27	24.56	289.56	0.4318	-1001.0	-780.1
40	0.00	0.96	0.00	0.53	17.86	304.88	25.16	299.65	0.4676	-707.0	-619.5
41	0.00	0.78	0.00	0.44	19.51	305.07	25.36	302.63	0.4813	-634.0	-531.7
42	0.00	1.74	0.00	0.95	13.20	304.18	24.46	290.44	0.4320	-870.0	-688.0
43	1.30	1.82	0.73	1.02	17.96	304.69	24.97	300.00	0.4657	-842.2	-918.2
44	0.00	1.39	0.00	0.79	20.32	305.00	25.29	304.17	0.4862	-755.0	-654.3
45	1.04	4.86	0.57	2.64	12.83	302.70	22.98	290.58	0.4084	-975.4	-625.1
46	0.00	2.17	0.00	1.17	12.57	302.28	22.56	290.26	0.4009	-810.0	-581.0
47	0.00	1.91	0.00	1.04	15.30	302.09	22.38	296.75	0.4130	894.0	728.6
48	0.00	1.04	0.00	0.56	11.73	301.45	21.73	288.76	0.3845	-222.0	-189.3
49	0.00	1.04	0.00	0.56	14.47	301.57	21.85	295.31	0.4004	784.0	700.1
50	0.00	1.56	0.00	0.84	12.30	301.36	21.65	290.26	0.3859	816.0	549.7
51	0.00	4.69	0.00	2.51	11.64	301.24	21.53	288.69	0.3811	634.0	476.6
52	0.00	2.35	0.00	1.26	12.61	301.16	21.44	291.18	0.3843	733.0	637.8
53	0.00	3.13	0.00	1.67	11.50	301.03	21.32	288.47	0.3772	810.0	746.8
54	0.00	1.04	0.00	0.56	11.17	300.98	21.26	287.66	0.3750	658.0	540.5
55	0.00	6.78	0.00	3.61	10.37	300.66	20.94	285.76	0.3669	1047.0	818.7
56	0.00	8.25	0.00	4.41	12.20	300.70	20.98	290.51	0.3753	880.0	733.6
57	0.00	0.43	0.00	0.23	15.59	300.66	20.94	298.79	0.3946	712.0	657.4
58	0.00	1.48	0.00	0.79	12.09	300.27	20.55	290.58	0.3683	904.0	784.9
59	0.00	1.04	0.00	0.56	15.17	300.42	20.70	298.07	0.3883	924.0	703.5
60	0.00	0.61	0.00	0.32	11.83	299.95	20.24	290.14	0.3622	754.0	638.4
61	0.00	1.04	0.00	0.56	13.55	300.03	20.32	294.50	0.3726	750.0	749.2
62	0.00	0.96	0.00	0.51	12.61	299.95	20.24	292.19	0.3661	791.0	704.5
63	0.00	1.82	0.00	0.97	12.47	299.78	20.06	291.97	0.3627	1038.0	876.0
64	0.00	1.65	0.00	0.88	15.21	300.03	20.31	298.58	0.3831	709.0	557.7
65	0.00	3.13	0.00	1.66	11.96	299.70	19.99	290.69	0.3590	1025.0	812.8
66	0.00	1.39	0.00	0.73	10.43	299.56	19.85	286.63	0.3500	862.0	804.1
67	0.00	1.48	0.00	0.79	13.26	299.61	19.90	294.16	0.3647	845.0	767.6
68	0.00	1.22	0.00	0.64	11.37	299.43	19.72	289.30	0.3520	842.0	711.0
69	0.00	2.43	0.00	1.28	11.22	299.23	19.51	289.07	0.3482	935.0	681.3
70	0.00	2.35	0.00	1.24	13.00	299.14	19.42	293.95	0.3561	982.0	823.3
71	2.78	20.07	1.47	10.60	12.76	298.92	19.21	293.54	0.3515	992.7	881.0
72	0.00	1.74	0.00	0.92	12.47	298.80	19.09	292.85	0.3481	1037.0	835.7
73	0.00	2.87	0.00	1.52	13.19	298.83	19.11	294.76	0.3526	945.0	742.3
74	2.00	-71.00	1.06	-71.00	12.89	298.68	18.96	294.13	0.3486	1170.8	999999
75	2.69	-71.00	1.42	-71.00	12.71	298.56	18.85	293.76	0.3459	1078.2	999999
76	0.00	1.04	0.00	0.55	13.78	298.29	18.58	296.89	0.3485	654.0	504.3
77	0.00	4.69	0.00	2.47	13.17	298.25	18.53	295.34	0.3439	938.0	772.6
78	0.00	1.13	0.00	0.60	13.54	298.14	18.43	296.43	0.3448	763.0	593.9
79	0.00	1.04	0.00	0.54	8.66	297.61	17.89	282.62	0.3126	766.0	602.6
80	0.00	0.96	0.00	0.50	10.85	297.63	17.92	289.33	0.3216	701.0	537.9
81	0.00	1.39	0.00	0.75	19.70	297.87	18.15	311.32	0.3923	578.0	468.5
82	0.00	1.30	0.00	0.68	13.39	297.04	17.32	297.32	0.3275	882.0	673.1
83	0.00	1.22	0.00	0.64	13.15	296.92	17.21	296.80	0.3242	888.0	613.1
84	0.00	1.74	0.00	0.91	12.76	296.70	16.99	295.96	0.3184	952.0	717.5
85	0.00	1.39	0.00	0.73	13.43	296.34	16.62	298.36	0.3176	795.0	573.2
86	0.00	2.26	0.00	1.18	14.37	296.37	16.66	300.92	0.3251	726.0	667.9
87	0.00	1.04	0.00	0.53	13.24	289.40	9.69	311.41	0.2194	-853.0	-739.1
88	0.00	2.69	0.00	1.37	13.88	288.90	9.18	315.08	0.2204	-712.0	-657.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
