SDO HMI 2011-10-26 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.65 | 16.77 | 2.33 | 10.70 | 15.08 | 241.34 | -38.37 | 72.13 | 0.6320 | 77.7 | -32.2 | |
|
previous
or next observation for the same group /

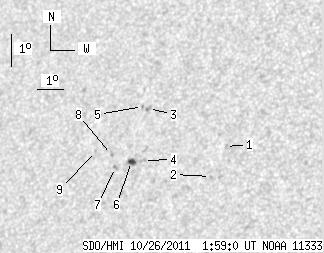

back to the solar disc SDO HMI 2011-10-26 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.80 | 15.32 | 244.56 | -35.16 | 70.70 | 0.5906 | -691.0 | -511.6 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 14.39 | 244.17 | -35.55 | 72.38 | 0.5931 | -655.0 | -481.9 | |
| 0.00 | 2.26 | 0.00 | 1.45 | 16.32 | 241.36 | -38.35 | 70.21 | 0.6352 | -871.0 | -731.6 | |
| 0.00 | 2.26 | 0.00 | 1.44 | 14.74 | 241.51 | -38.20 | 72.61 | 0.6290 | -70.0 | 57.7 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 16.37 | 241.11 | -38.60 | 70.21 | 0.6385 | -590.0 | -456.4 | |
| 3.65 | 4.34 | 2.33 | 2.78 | 14.69 | 241.05 | -38.66 | 72.83 | 0.6348 | 761.2 | 371.6 | |
| 0.00 | 1.91 | 0.00 | 1.23 | 14.47 | 240.46 | -39.25 | 73.32 | 0.6419 | 825.0 | 610.0 | |
| 0.00 | 1.65 | 0.00 | 1.07 | 14.86 | 240.22 | -39.50 | 72.79 | 0.6459 | 656.0 | 510.5 | |
| 0.00 | 0.96 | 0.00 | 0.62 | 14.91 | 239.56 | -40.15 | 72.88 | 0.6543 | 425.0 | 424.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
