groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11324 9.90 177.79 5.38 97.83 12.72 303.01 24.40 290.16 0.4299 -38.1 47.5


previous   or   next   observation for the same group / back to the solar disc

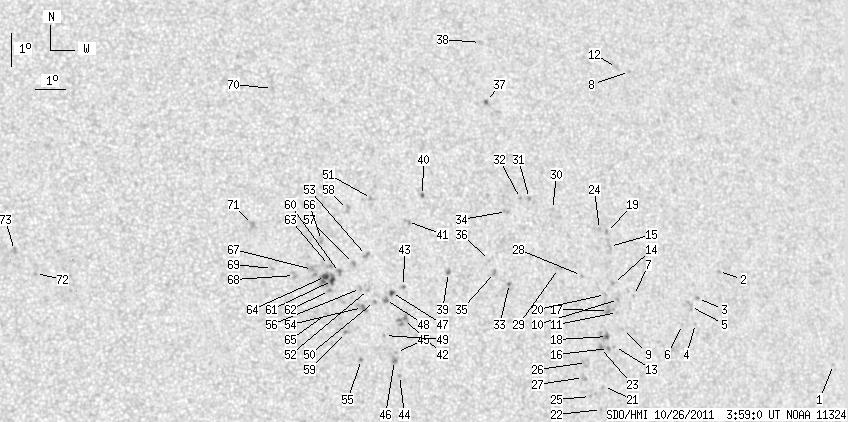

SDO HMI 2011-10-26 03:59:00 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.96 0.00 0.60 9.55 316.03 37.41 279.21 0.6092 -715.0 -588.5
2 0.00 1.13 0.00 0.67 12.54 312.14 33.52 285.11 0.5606 -638.0 -526.9
3 0.00 1.48 0.00 0.87 11.77 311.27 32.65 283.98 0.5464 -812.0 -688.8
4 0.00 1.04 0.00 0.61 11.02 311.10 32.48 282.67 0.5424 -652.0 -543.4
5 0.00 3.48 0.00 2.05 11.54 310.99 32.37 283.65 0.5419 -556.0 -582.3
6 0.00 0.78 0.00 0.46 11.01 310.63 32.01 282.77 0.5357 -663.0 -607.8
7 0.00 1.22 0.00 0.70 11.96 309.00 30.38 285.05 0.5145 -564.0 -423.5
8 0.00 1.13 0.00 0.67 18.73 309.97 31.36 296.87 0.5546 -728.0 -593.4
9 0.00 0.96 0.00 0.55 10.96 308.50 29.88 283.27 0.5045 -573.0 -500.6
10 0.00 1.04 0.00 0.60 11.86 308.46 29.84 285.05 0.5063 -915.0 -669.0
11 0.00 1.04 0.00 0.60 11.47 308.38 29.76 284.32 0.5041 -713.0 -542.3
12 0.00 2.35 0.00 1.39 18.88 309.53 30.91 297.38 0.5495 -581.0 -452.7
13 0.00 0.78 0.00 0.45 10.46 308.16 29.55 282.39 0.4985 -565.0 -500.7
14 0.00 1.39 0.00 0.80 12.35 308.35 29.73 286.04 0.5061 -823.0 -711.8
15 0.00 5.65 0.00 3.25 13.47 308.35 29.73 288.20 0.5098 -751.0 -584.3
16 0.00 1.74 0.00 0.99 10.41 307.95 29.33 282.35 0.4952 -789.0 -684.5
17 0.00 5.99 0.00 3.42 11.55 308.07 29.46 284.57 0.4998 -957.0 -718.1
18 1.04 6.34 0.59 3.61 10.77 307.95 29.33 283.07 0.4961 -961.0 -846.2
19 0.00 1.65 0.00 0.95 13.89 308.30 29.69 289.03 0.5106 -892.0 -740.2
20 0.00 1.30 0.00 0.74 12.03 308.03 29.41 285.54 0.5005 -965.0 -799.0
21 0.00 0.96 0.00 0.54 9.28 307.67 29.05 280.14 0.4888 -709.0 -607.0
22 0.00 1.30 0.00 0.74 8.60 307.54 28.92 278.77 0.4858 -775.0 -653.7
23 0.00 2.78 0.00 1.58 10.45 307.67 29.06 282.51 0.4912 -887.0 -773.9
24 0.00 1.30 0.00 0.75 13.99 308.07 29.45 289.33 0.5077 -829.0 -639.0
25 0.00 0.96 0.00 0.54 9.00 307.19 28.57 279.67 0.4812 -681.0 -582.0
26 0.00 4.87 0.00 2.75 10.02 307.15 28.53 281.79 0.4824 -399.0 -666.2
27 0.00 3.48 0.00 1.96 9.58 307.00 28.38 280.91 0.4794 -934.0 -749.0
28 0.00 1.22 0.00 0.69 12.64 307.26 28.64 287.05 0.4912 -748.0 -705.6
29 0.00 2.43 0.00 1.37 12.88 306.49 27.87 287.89 0.4809 -689.0 -671.2
30 0.00 0.87 0.00 0.49 14.66 306.51 27.90 291.44 0.4883 -674.0 -539.8
31 0.00 1.56 0.00 0.88 15.02 305.76 27.15 292.61 0.4793 -786.0 -677.8
32 0.00 0.96 0.00 0.54 15.04 305.45 26.84 292.83 0.4750 -886.0 -747.2
33 0.00 1.48 0.00 0.82 12.49 304.76 26.15 287.94 0.4541 -1032.0 -777.5
34 0.00 2.69 0.00 1.51 14.66 304.92 26.30 292.41 0.4656 -761.0 -689.8
35 0.00 2.43 0.00 1.35 12.84 304.29 25.67 288.94 0.4485 -989.0 -716.9
36 0.00 0.52 0.00 0.29 13.21 304.16 25.55 289.81 0.4481 -814.0 -628.8
37 1.48 2.61 0.83 1.47 18.02 304.71 26.10 299.22 0.4813 -831.6 -687.2
38 0.00 2.87 0.00 1.63 19.84 304.81 26.19 302.52 0.4944 -637.0 -491.6
39 0.43 2.69 0.24 1.47 12.90 302.75 24.13 289.99 0.4258 -927.0 -774.4
40 0.43 1.13 0.24 0.62 15.25 302.13 23.51 295.67 0.4289 785.0 725.5
41 0.00 2.69 0.00 1.47 14.48 301.54 22.92 294.46 0.4161 497.0 653.7
42 0.00 8.43 0.00 4.54 11.54 301.12 22.51 287.82 0.3956 633.0 644.4
43 0.00 1.30 0.00 0.70 12.53 301.21 22.59 290.16 0.4012 787.0 716.1
44 0.00 1.04 0.00 0.56 9.87 300.86 22.24 283.77 0.3856 774.0 675.2
45 0.00 1.13 0.00 0.61 10.56 300.81 22.20 285.55 0.3872 727.0 575.1
46 0.00 3.48 0.00 1.86 10.32 300.73 22.11 284.99 0.3851 1018.0 850.8
47 1.56 2.35 0.84 1.26 12.36 300.80 22.18 290.05 0.3943 747.3 738.0
48 0.00 3.30 0.00 1.77 12.16 300.58 21.97 289.70 0.3901 1079.0 807.0
49 0.00 0.87 0.00 0.47 11.08 300.46 21.84 287.08 0.3836 843.0 690.0
50 0.00 1.39 0.00 0.75 12.11 300.22 21.60 289.84 0.3843 932.0 804.6
51 0.00 2.43 0.00 1.32 15.21 300.42 21.80 297.11 0.4044 909.0 675.6
52 0.00 1.39 0.00 0.75 12.47 300.05 21.43 290.88 0.3836 836.0 663.2
53 0.00 2.87 0.00 1.54 13.50 300.08 21.46 293.38 0.3893 998.0 737.0
54 0.00 5.82 0.00 3.11 11.94 299.81 21.19 289.72 0.3774 906.0 772.9
55 0.00 1.48 0.00 0.79 10.38 299.66 21.04 285.77 0.3686 1004.0 802.4
56 0.00 1.82 0.00 0.98 12.51 299.79 21.18 291.18 0.3798 976.0 760.2
57 0.00 2.26 0.00 1.21 13.27 299.63 21.01 293.21 0.3814 915.0 723.3
58 0.00 3.13 0.00 1.68 14.90 299.59 20.97 297.20 0.3906 824.0 717.3
59 0.00 1.91 0.00 1.02 11.21 299.23 20.61 288.23 0.3652 891.0 810.5
60 0.00 2.35 0.00 1.25 13.01 299.15 20.53 292.99 0.3728 932.0 764.7
61 2.35 16.51 1.25 8.78 12.78 298.90 20.28 292.61 0.3678 1003.3 925.9
62 0.00 1.91 0.00 1.02 12.48 298.78 20.16 291.95 0.3644 1014.0 830.5
63 0.00 1.91 0.00 1.02 13.23 298.84 20.22 293.83 0.3695 785.0 746.3
64 2.61 -61.00 1.39 -61.00 12.91 298.68 20.07 293.13 0.3653 1113.1 999999
65 0.00 1.22 0.00 0.64 11.76 298.59 19.98 290.21 0.3579 717.0 610.5
66 0.00 2.52 0.00 1.34 13.99 298.65 20.03 295.93 0.3712 804.0 639.6
67 0.00 8.51 0.00 4.52 13.13 298.28 19.66 294.09 0.3605 1042.0 786.7
68 0.00 3.30 0.00 1.75 12.96 297.68 19.06 294.25 0.3507 761.0 626.7
69 0.00 1.04 0.00 0.55 13.19 296.99 18.37 295.60 0.3418 932.0 745.9
70 0.00 0.96 0.00 0.51 18.65 297.52 18.90 308.11 0.3917 750.0 616.5
71 0.00 3.48 0.00 1.83 14.54 296.45 17.83 299.82 0.3432 766.0 655.5
72 0.00 1.39 0.00 0.71 13.20 289.49 10.87 308.19 0.2346 -962.0 -730.7
73 0.00 3.04 0.00 1.55 13.91 288.86 10.24 312.17 0.2340 -797.0 -706.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
