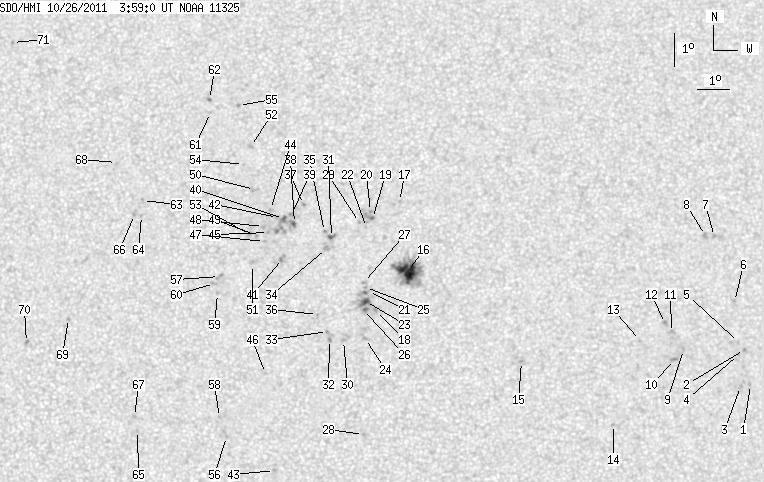

SDO HMI 2011-10-26 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.72 | 209.47 | 16.02 | 106.14 | 16.06 | 279.13 | 0.52 | 347.72 | 0.2074 | -96.7 | -79.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.58 | 12.58 | 290.77 | 12.15 | 303.12 | 0.2464 | -691.0 | -617.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.64 | 290.63 | 12.01 | 306.96 | 0.2543 | -833.0 | -716.8 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 12.53 | 290.45 | 11.83 | 303.59 | 0.2414 | -916.0 | -814.4 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 13.49 | 290.44 | 11.82 | 306.92 | 0.2502 | -933.0 | -789.0 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 13.85 | 290.46 | 11.84 | 308.05 | 0.2541 | -680.0 | -594.2 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 15.09 | 290.40 | 11.78 | 311.96 | 0.2662 | -857.0 | -641.3 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 17.08 | 289.88 | 11.26 | 318.50 | 0.2830 | -936.0 | -796.8 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 17.11 | 289.60 | 10.98 | 319.29 | 0.2803 | -849.0 | -756.4 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 13.67 | 288.73 | 10.11 | 311.75 | 0.2296 | -902.0 | -749.6 | |
| 0.00 | 3.39 | 0.00 | 1.72 | 13.37 | 288.43 | 9.82 | 311.55 | 0.2227 | -1057.0 | -789.2 | |
| 0.00 | 2.78 | 0.00 | 1.42 | 14.19 | 288.38 | 9.76 | 314.43 | 0.2311 | -877.0 | -682.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.46 | 288.20 | 9.58 | 315.80 | 0.2323 | -913.0 | -717.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 13.96 | 287.40 | 8.78 | 316.63 | 0.2168 | -764.0 | -589.9 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 11.44 | 286.48 | 7.87 | 310.16 | 0.1763 | -828.0 | -602.1 | |
| 0.00 | 1.65 | 0.00 | 0.83 | 13.36 | 283.71 | 5.09 | 329.41 | 0.1704 | -1084.0 | -849.6 | |
| 21.29 | 60.56 | 10.75 | 30.58 | 16.10 | 280.23 | 1.61 | 352.02 | 0.1956 | -1215.1 | -550.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 18.24 | 280.00 | 1.38 | 354.30 | 0.2314 | -841.0 | -602.2 | |
| 0.00 | 2.17 | 0.00 | 1.09 | 14.92 | 279.23 | 0.62 | 356.56 | 0.1736 | -1052.0 | -827.4 | |
| 1.30 | 4.78 | 0.66 | 2.43 | 17.72 | 279.15 | 0.53 | 357.71 | 0.2215 | -1010.5 | -802.0 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.93 | 279.09 | 0.47 | 358.01 | 0.2251 | -988.0 | -777.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 15.50 | 279.02 | 0.40 | 357.88 | 0.1833 | -876.0 | -646.2 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 17.44 | 278.96 | 0.34 | 358.49 | 0.2167 | -807.0 | -746.7 | |
| 4.00 | 21.89 | 2.01 | 11.02 | 15.19 | 278.93 | 0.31 | 358.33 | 0.1781 | -1020.0 | -566.2 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 14.08 | 278.92 | 0.31 | 358.12 | 0.1587 | -1069.0 | -818.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 15.62 | 278.93 | 0.31 | 358.39 | 0.1854 | -772.0 | -604.5 | |
| 0.52 | -23.00 | 0.26 | -23.00 | 14.95 | 278.86 | 0.25 | 358.63 | 0.1739 | -1107.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.77 | 278.86 | 0.25 | 358.73 | 0.1880 | -784.0 | -584.8 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 11.19 | 278.86 | 0.24 | 357.81 | 0.1086 | 887.0 | 609.6 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.60 | 278.74 | 0.12 | 359.46 | 0.2193 | -794.0 | -623.4 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 14.01 | 278.25 | -0.37 | 2.29 | 0.1577 | -956.0 | -803.4 | |
| 1.48 | 3.30 | 0.75 | 1.67 | 17.14 | 277.87 | -0.75 | 3.40 | 0.2118 | 785.9 | 224.2 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 14.04 | 277.82 | -0.80 | 4.92 | 0.1587 | -1110.0 | -945.4 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 14.29 | 277.76 | -0.86 | 5.16 | 0.1630 | -775.0 | -564.9 | |
| 0.00 | 3.30 | 0.00 | 1.67 | 16.80 | 277.71 | -0.90 | 4.22 | 0.2062 | -264.0 | -199.4 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 17.32 | 277.65 | -0.97 | 4.32 | 0.2152 | 939.0 | 760.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 14.80 | 277.45 | -1.17 | 6.62 | 0.1724 | 807.0 | 608.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 18.14 | 276.99 | -1.63 | 6.78 | 0.2303 | 898.0 | 766.6 | |
| 1.39 | 18.59 | 0.71 | 9.44 | 17.56 | 276.71 | -1.91 | 8.30 | 0.2211 | 962.1 | 864.9 | |
| 0.00 | 2.26 | 0.00 | 1.15 | 17.84 | 276.61 | -2.01 | 8.52 | 0.2259 | 947.0 | 828.1 | |
| 1.74 | -38.00 | 0.88 | -38.00 | 17.71 | 276.36 | -2.25 | 9.65 | 0.2245 | 1143.2 | 999999 | |
| 0.00 | 3.21 | 0.00 | 1.63 | 16.49 | 276.35 | -2.27 | 10.78 | 0.2041 | 1045.0 | 920.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.74 | 276.18 | -2.44 | 10.41 | 0.2256 | 928.0 | 828.6 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 10.11 | 276.16 | -2.45 | 25.27 | 0.0992 | 956.0 | 633.4 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.99 | 275.95 | -2.67 | 11.12 | 0.2304 | 848.0 | 700.9 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.28 | 275.90 | -2.72 | 12.00 | 0.2188 | 987.0 | 822.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 13.01 | 275.86 | -2.75 | 18.53 | 0.1480 | 889.0 | 627.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 17.01 | 275.78 | -2.84 | 12.80 | 0.2147 | 913.0 | 773.5 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 17.47 | 275.74 | -2.88 | 12.49 | 0.2224 | 801.0 | 686.2 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.19 | 275.53 | -3.09 | 13.69 | 0.2187 | 959.0 | 784.4 | |
| 0.00 | 3.48 | 0.00 | 1.77 | 18.60 | 275.44 | -3.18 | 12.58 | 0.2423 | 741.0 | 619.6 | |
| 0.00 | 0.43 | 0.00 | 0.22 | 16.31 | 275.42 | -3.20 | 15.26 | 0.2045 | 233.0 | 365.2 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 19.92 | 275.29 | -3.33 | 11.97 | 0.2647 | 954.0 | 711.3 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 17.22 | 275.31 | -3.31 | 14.58 | 0.2201 | 866.0 | 758.7 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 19.36 | 275.08 | -3.54 | 13.20 | 0.2563 | 828.0 | 619.0 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 21.19 | 274.87 | -3.74 | 12.30 | 0.2870 | 1049.0 | 879.9 | |
| 0.00 | 1.13 | 0.00 | 0.56 | 11.12 | 274.70 | -3.92 | 32.10 | 0.1269 | 944.0 | 728.7 | |
| 0.00 | 2.87 | 0.00 | 1.45 | 15.94 | 274.40 | -4.22 | 20.41 | 0.2038 | 844.0 | 724.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 11.69 | 274.48 | -4.14 | 31.19 | 0.1372 | 901.0 | 742.6 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 15.42 | 274.35 | -4.27 | 21.60 | 0.1959 | 796.0 | 621.5 | |
| 0.00 | 2.35 | 0.00 | 1.19 | 15.73 | 274.25 | -4.37 | 21.47 | 0.2014 | 731.0 | 661.6 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 20.96 | 273.98 | -4.63 | 15.31 | 0.2869 | 829.0 | 633.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 21.37 | 273.94 | -4.68 | 15.06 | 0.2936 | 1006.0 | 846.3 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 18.24 | 271.92 | -6.70 | 25.75 | 0.2562 | 844.0 | 683.0 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 17.78 | 271.90 | -6.71 | 26.64 | 0.2494 | 1005.0 | 678.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.28 | 271.98 | -6.64 | 45.85 | 0.1588 | 804.0 | 643.8 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 17.80 | 271.68 | -6.94 | 27.33 | 0.2515 | 820.0 | 731.1 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 11.69 | 271.88 | -6.74 | 44.40 | 0.1650 | 826.0 | 635.0 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 19.39 | 271.04 | -7.57 | 26.49 | 0.2800 | 617.0 | 588.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 14.62 | 269.74 | -8.87 | 41.57 | 0.2260 | 902.0 | 674.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 13.88 | 268.47 | -10.15 | 47.67 | 0.2325 | 1040.0 | 761.4 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 23.07 | 267.43 | -11.18 | 29.77 | 0.3609 | 887.0 | 680.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
