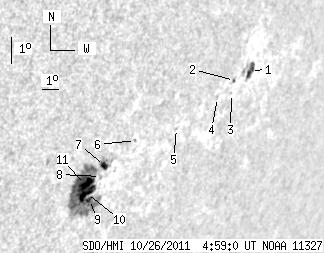

SDO HMI 2011-10-26 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.28 | 126.85 | 32.34 | 120.47 | -21.62 | 331.33 | 53.26 | 240.81 | 0.8549 | -375.8 | -307.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.12 | 12.34 | 7.89 | 13.61 | -18.80 | 337.79 | 59.72 | 246.09 | 0.8961 | 448.4 | 458.3 | |
| 0.96 | 1.30 | 1.03 | 1.41 | -19.06 | 336.94 | 58.87 | 245.56 | 0.8906 | 584.5 | 552.8 | |
| 0.00 | 0.61 | 0.00 | 0.66 | -19.48 | 337.01 | 58.94 | 245.12 | 0.8921 | 496.0 | 436.7 | |
| 0.00 | 0.96 | 0.00 | 1.01 | -19.55 | 336.19 | 58.12 | 244.80 | 0.8863 | 359.0 | 325.3 | |
| 0.00 | 0.52 | 0.00 | 0.53 | -20.41 | 334.26 | 56.19 | 243.24 | 0.8741 | -500.0 | -418.7 | |
| 0.00 | 0.96 | 0.00 | 0.92 | -20.64 | 332.09 | 54.02 | 242.22 | 0.8580 | -505.0 | -426.0 | |
| 3.91 | 7.47 | 3.65 | 6.97 | -21.36 | 330.80 | 52.73 | 240.94 | 0.8499 | -659.4 | -558.2 | |
| 0.00 | 1.30 | 0.00 | 1.22 | -21.72 | 330.77 | 52.70 | 240.53 | 0.8509 | -371.0 | -328.9 | |
| 2.35 | 101.39 | 2.20 | 94.14 | -22.47 | 330.59 | 52.52 | 239.64 | 0.8519 | -396.7 | -372.1 | |
| 9.38 | -9.00 | 8.74 | -9.00 | -22.25 | 330.31 | 52.24 | 239.76 | 0.8490 | -673.0 | 999999 | |
| 9.56 | -9.00 | 8.83 | -9.00 | -21.94 | 330.09 | 52.02 | 240.02 | 0.8462 | -961.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
