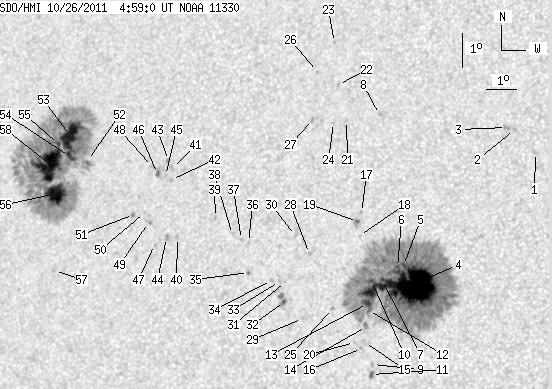

SDO HMI 2011-10-26 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 238.06 | 1372.49 | 134.33 | 776.24 | 7.88 | 249.88 | -28.19 | 82.94 | 0.4714 | -205.6 | -71.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 04:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 0.91 | 10.54 | 259.47 | -18.60 | 72.11 | 0.3310 | -726.0 | -513.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.21 | 258.75 | -19.32 | 70.77 | 0.3453 | -989.0 | -816.2 | |
| 0.00 | 2.78 | 0.00 | 1.47 | 11.26 | 258.49 | -19.58 | 70.83 | 0.3496 | -732.0 | -659.6 | |
| 125.46 | 727.55 | 67.23 | 390.38 | 6.41 | 255.57 | -22.50 | 85.25 | 0.3832 | -1426.2 | -428.3 | |
| 1.39 | -4.00 | 0.75 | -4.00 | 7.04 | 255.41 | -22.66 | 83.66 | 0.3864 | -954.8 | 999999 | |
| 1.30 | -4.00 | 0.70 | -4.00 | 6.97 | 255.22 | -22.85 | 83.86 | 0.3894 | -928.1 | 999999 | |
| 0.70 | -4.00 | 0.37 | -4.00 | 6.57 | 254.75 | -23.32 | 84.96 | 0.3965 | -908.9 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 11.52 | 254.31 | -23.76 | 72.96 | 0.4147 | -919.0 | -786.8 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 4.05 | 254.53 | -23.55 | 91.29 | 0.4003 | 674.0 | 532.3 | |
| 1.56 | -4.00 | 0.85 | -4.00 | 6.55 | 254.39 | -23.68 | 85.03 | 0.4022 | -502.0 | 999999 | |
| 0.96 | 2.43 | 0.52 | 1.31 | 3.75 | 254.50 | -23.57 | 92.04 | 0.4010 | 908.1 | 772.6 | |
| 0.61 | -4.00 | 0.33 | -4.00 | 5.66 | 254.33 | -23.74 | 87.27 | 0.4027 | -704.0 | 999999 | |
| 3.74 | -4.00 | 2.02 | -4.00 | 5.86 | 254.29 | -23.78 | 86.76 | 0.4034 | -916.6 | 999999 | |
| 0.00 | 2.87 | 0.00 | 1.55 | 5.18 | 254.29 | -23.78 | 88.47 | 0.4035 | -824.0 | -664.7 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 4.70 | 254.24 | -23.83 | 89.65 | 0.4044 | -610.0 | -588.4 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 4.52 | 254.15 | -23.92 | 90.10 | 0.4059 | -598.0 | -512.0 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 8.57 | 253.94 | -24.13 | 80.17 | 0.4120 | 853.0 | 701.5 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 7.88 | 253.92 | -24.15 | 81.84 | 0.4111 | 393.0 | 353.1 | |
| 1.04 | 4.69 | 0.57 | 2.55 | 8.30 | 253.83 | -24.24 | 80.86 | 0.4133 | 832.8 | 159.7 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 4.69 | 253.91 | -24.16 | 89.66 | 0.4096 | -723.0 | -572.9 | |
| 0.00 | 0.96 | 0.00 | 0.52 | 11.30 | 253.23 | -24.85 | 74.03 | 0.4304 | -803.0 | -707.7 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 12.37 | 252.85 | -25.22 | 71.82 | 0.4399 | -755.0 | -633.6 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 13.63 | 252.58 | -25.49 | 69.25 | 0.4492 | -671.0 | -623.7 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 11.22 | 252.80 | -25.27 | 74.40 | 0.4366 | -782.0 | -502.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 5.67 | 253.15 | -24.92 | 87.25 | 0.4216 | -659.0 | -466.2 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 12.73 | 252.10 | -25.97 | 71.44 | 0.4525 | -785.0 | -572.1 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 11.29 | 252.08 | -25.99 | 74.59 | 0.4476 | -722.0 | -593.3 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 7.28 | 252.30 | -25.77 | 83.55 | 0.4359 | 804.0 | 588.4 | |
| 0.00 | 1.48 | 0.00 | 0.81 | 5.34 | 252.17 | -25.90 | 88.03 | 0.4370 | -853.0 | -603.9 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 7.80 | 251.80 | -26.27 | 82.45 | 0.4443 | -792.0 | -467.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 6.42 | 251.55 | -26.52 | 85.60 | 0.4470 | -611.0 | -545.4 | |
| 1.39 | 7.47 | 0.77 | 4.14 | 5.82 | 251.54 | -26.53 | 86.94 | 0.4468 | -896.6 | -705.9 | |
| 0.00 | 1.13 | 0.00 | 0.63 | 6.41 | 251.34 | -26.73 | 85.63 | 0.4501 | -664.0 | -538.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 6.43 | 251.07 | -27.00 | 85.60 | 0.4543 | -730.0 | -541.8 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 6.64 | 250.28 | -27.79 | 85.20 | 0.4666 | 993.0 | 826.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 7.53 | 250.23 | -27.84 | 83.29 | 0.4682 | -741.0 | -519.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 7.61 | 249.98 | -28.09 | 83.15 | 0.4720 | -866.0 | -667.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 7.75 | 249.66 | -28.41 | 82.91 | 0.4770 | -634.0 | -542.8 | |
| 0.00 | 1.48 | 0.00 | 0.84 | 8.23 | 249.04 | -29.03 | 82.00 | 0.4870 | -673.0 | -524.8 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 7.58 | 247.78 | -30.29 | 83.49 | 0.5053 | 748.0 | 654.6 | |
| 0.00 | 2.61 | 0.00 | 1.50 | 9.63 | 247.42 | -30.65 | 79.52 | 0.5132 | 594.0 | 580.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 9.30 | 247.42 | -30.66 | 80.16 | 0.5127 | 884.0 | 729.9 | |
| 0.00 | 2.09 | 0.00 | 1.20 | 9.86 | 247.25 | -30.82 | 79.11 | 0.5161 | 834.0 | 716.5 | |
| 0.00 | 2.26 | 0.00 | 1.30 | 7.56 | 247.39 | -30.68 | 83.56 | 0.5110 | 988.0 | 831.2 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 9.41 | 247.19 | -30.88 | 79.99 | 0.5162 | 840.0 | 742.2 | |
| 2.00 | 2.95 | 1.16 | 1.71 | 9.46 | 246.91 | -31.16 | 79.96 | 0.5205 | 862.0 | 843.4 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 7.33 | 246.99 | -31.08 | 84.04 | 0.5169 | 810.0 | 739.1 | |
| 0.00 | 1.30 | 0.00 | 0.76 | 9.66 | 246.71 | -31.36 | 79.62 | 0.5237 | 751.0 | 648.9 | |
| 0.00 | 1.91 | 0.00 | 1.11 | 7.98 | 246.73 | -31.35 | 82.82 | 0.5213 | 931.0 | 776.2 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 8.27 | 246.56 | -31.51 | 82.28 | 0.5241 | 708.0 | 548.6 | |
| 0.00 | 2.17 | 0.00 | 1.27 | 8.20 | 246.18 | -31.90 | 82.48 | 0.5296 | 860.0 | 704.8 | |
| 0.43 | 567.86 | 0.26 | 343.01 | 9.73 | 244.36 | -33.71 | 79.93 | 0.5577 | 841.0 | 328.8 | |
| 24.85 | -52.00 | 14.94 | -52.00 | 10.45 | 243.66 | -34.42 | 78.79 | 0.5688 | 1156.1 | 999999 | |
| 4.43 | -52.00 | 2.66 | -52.00 | 9.82 | 243.70 | -34.37 | 79.89 | 0.5673 | 1178.4 | 999999 | |
| 1.04 | -52.00 | 0.63 | -52.00 | 10.16 | 243.25 | -34.82 | 79.37 | 0.5741 | 705.8 | 999999 | |
| 26.24 | -52.00 | 15.80 | -52.00 | 8.69 | 243.34 | -34.73 | 81.92 | 0.5710 | 1177.9 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 6.39 | 243.48 | -34.59 | 85.95 | 0.5677 | 634.0 | 503.6 | |
| 40.92 | -52.00 | 24.77 | -52.00 | 9.54 | 242.99 | -35.08 | 80.48 | 0.5769 | 1123.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
