SDO HMI 2011-10-26 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.06 | 123.54 | 29.69 | 120.73 | -21.56 | 331.41 | 54.44 | 241.31 | 0.8638 | -410.4 | -259.4 | |
|
previous
or next observation for the same group /

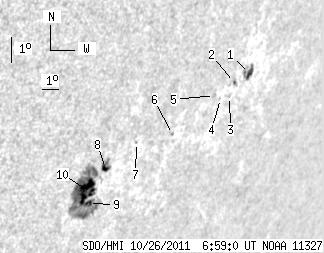

back to the solar disc SDO HMI 2011-10-26 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.17 | 10.77 | 4.80 | 12.34 | -18.83 | 337.87 | 60.89 | 246.39 | 0.9043 | 425.3 | 466.9 | |
| 1.13 | 2.26 | 1.27 | 2.54 | -19.06 | 337.04 | 60.06 | 245.91 | 0.8990 | 620.2 | 533.9 | |
| 0.00 | 0.78 | 0.00 | 0.88 | -19.51 | 337.00 | 60.02 | 245.42 | 0.8997 | 311.0 | 301.7 | |
| 0.00 | 0.43 | 0.00 | 0.48 | -19.53 | 336.44 | 59.46 | 245.24 | 0.8958 | 485.0 | 430.4 | |
| 0.00 | 1.91 | 0.00 | 2.08 | -19.40 | 335.99 | 59.01 | 245.24 | 0.8923 | 469.0 | 387.6 | |
| 0.00 | 1.39 | 0.00 | 1.45 | -20.52 | 334.11 | 57.13 | 243.44 | 0.8814 | -515.0 | -435.9 | |
| 0.00 | 0.87 | 0.00 | 0.86 | -20.63 | 332.10 | 55.12 | 242.64 | 0.8665 | -480.0 | -427.3 | |
| 3.30 | 7.91 | 3.17 | 7.58 | -21.38 | 330.79 | 53.82 | 241.34 | 0.8586 | -630.1 | -500.5 | |
| 2.52 | 97.22 | 2.43 | 92.52 | -22.52 | 330.49 | 53.51 | 239.98 | 0.8598 | -393.0 | -359.2 | |
| 18.94 | -9.00 | 18.02 | -9.00 | -22.06 | 330.18 | 53.21 | 240.36 | 0.8560 | -798.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
