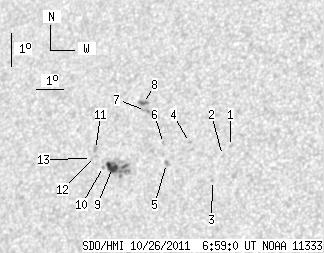

SDO HMI 2011-10-26 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.81 | 43.79 | 6.08 | 26.98 | 14.81 | 241.17 | -35.81 | 71.72 | 0.5979 | 105.6 | 206.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.72 | 15.29 | 244.92 | -32.06 | 69.46 | 0.5490 | -652.0 | -514.1 | |
| 0.00 | 0.78 | 0.00 | 0.46 | 15.00 | 244.67 | -32.30 | 70.07 | 0.5513 | -647.0 | -505.1 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 14.23 | 244.43 | -32.54 | 71.53 | 0.5519 | -612.0 | -493.4 | |
| 0.00 | 1.39 | 0.00 | 0.84 | 15.34 | 243.40 | -33.58 | 70.02 | 0.5698 | -569.0 | -423.5 | |
| 0.00 | 2.35 | 0.00 | 1.42 | 14.67 | 242.66 | -34.32 | 71.45 | 0.5775 | -714.0 | -561.4 | |
| 0.00 | 0.87 | 0.00 | 0.53 | 15.26 | 242.44 | -34.54 | 70.52 | 0.5824 | -522.0 | -444.0 | |
| 0.00 | 2.26 | 0.00 | 1.39 | 16.23 | 241.56 | -35.41 | 69.26 | 0.5971 | -844.0 | -698.7 | |
| 1.04 | 3.21 | 0.64 | 1.99 | 16.44 | 241.44 | -35.53 | 68.97 | 0.5994 | -851.8 | -694.8 | |
| 8.77 | 26.24 | 5.44 | 16.23 | 14.45 | 240.66 | -36.32 | 72.49 | 0.6037 | 823.5 | 638.0 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 14.46 | 240.31 | -36.67 | 72.57 | 0.6083 | 502.0 | 455.7 | |
| 0.00 | 2.26 | 0.00 | 1.42 | 14.96 | 239.90 | -37.07 | 71.90 | 0.6150 | 721.0 | 639.1 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 14.74 | 239.95 | -37.03 | 72.23 | 0.6139 | 713.0 | 623.8 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 14.68 | 239.80 | -37.17 | 72.38 | 0.6156 | 493.0 | 382.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
