SDO HMI 2011-10-26 07:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.40 | 200.30 | 14.37 | 101.67 | 16.03 | 279.18 | 2.75 | 347.02 | 0.2130 | -146.4 | -113.1 | |
|
previous
or next observation for the same group /

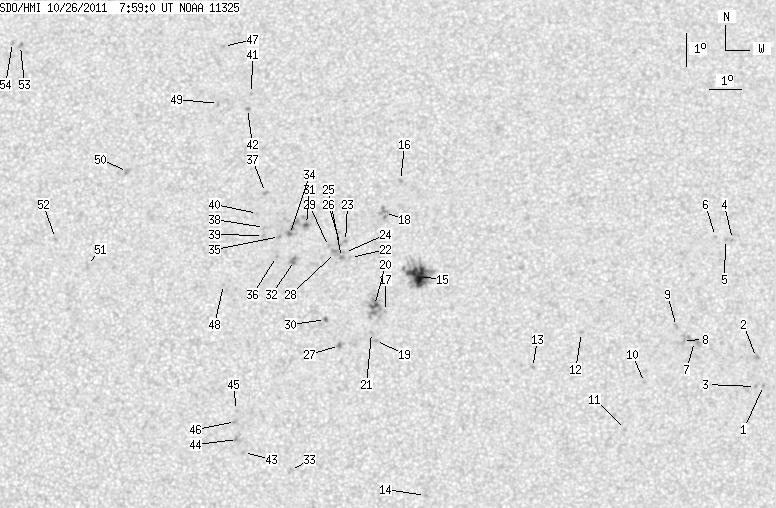

back to the solar disc SDO HMI 2011-10-26 07:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.22 | 0.00 | 0.63 | 12.63 | 290.87 | 14.44 | 299.21 | 0.2801 | -763.0 | -547.8 | |
| 0.00 | 2.52 | 0.00 | 1.30 | 13.47 | 290.70 | 14.27 | 302.14 | 0.2844 | -813.0 | -729.9 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 12.60 | 290.62 | 14.19 | 299.53 | 0.2762 | -924.0 | -749.7 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 17.06 | 290.18 | 13.75 | 313.01 | 0.3122 | -757.0 | -634.2 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 17.07 | 289.96 | 13.53 | 313.47 | 0.3095 | -952.0 | -729.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 17.16 | 289.65 | 13.22 | 314.35 | 0.3069 | -766.0 | -634.8 | |
| 0.00 | 5.99 | 0.00 | 3.08 | 13.99 | 288.78 | 12.35 | 307.45 | 0.2626 | -695.0 | -662.0 | |
| 0.00 | 5.73 | 0.00 | 2.94 | 14.03 | 288.40 | 11.97 | 308.39 | 0.2579 | -758.0 | -717.1 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 14.46 | 288.24 | 11.81 | 310.08 | 0.2601 | -730.0 | -671.9 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 12.79 | 287.16 | 10.73 | 307.17 | 0.2288 | -947.0 | -782.5 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 11.38 | 286.51 | 10.08 | 303.40 | 0.2065 | -802.0 | -561.4 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 14.32 | 285.26 | 8.83 | 317.73 | 0.2221 | -895.0 | -728.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 13.28 | 283.71 | 7.27 | 319.72 | 0.1915 | -890.0 | -746.5 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 9.47 | 280.36 | 3.93 | 319.39 | 0.1043 | 949.0 | 679.5 | |
| 21.28 | 49.69 | 10.77 | 25.14 | 16.06 | 280.25 | 3.82 | 341.64 | 0.2040 | -1200.5 | -545.7 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 19.00 | 279.74 | 3.31 | 347.32 | 0.2499 | -937.0 | -767.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.01 | 279.21 | 2.78 | 344.99 | 0.1815 | -825.0 | -607.9 | |
| 0.00 | 7.38 | 0.00 | 3.76 | 18.02 | 279.22 | 2.79 | 348.43 | 0.2318 | -858.0 | -770.8 | |
| 0.00 | 1.74 | 0.00 | 0.87 | 14.13 | 278.89 | 2.46 | 345.38 | 0.1655 | -997.0 | -796.0 | |
| 3.56 | 26.41 | 1.79 | 13.30 | 15.19 | 278.87 | 2.44 | 346.98 | 0.1832 | -931.8 | -691.8 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 14.37 | 278.77 | 2.34 | 346.42 | 0.1691 | -963.0 | -779.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 16.65 | 278.14 | 1.71 | 351.97 | 0.2056 | -672.0 | -531.9 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 17.14 | 277.99 | 1.56 | 352.97 | 0.2135 | -567.0 | -456.2 | |
| 0.00 | 1.56 | 0.00 | 0.79 | 16.80 | 277.96 | 1.53 | 352.92 | 0.2077 | -533.0 | -367.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 16.65 | 277.86 | 1.43 | 353.27 | 0.2050 | -778.0 | -616.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 17.04 | 277.83 | 1.40 | 353.62 | 0.2116 | 658.0 | 466.5 | |
| 0.00 | 3.47 | 0.00 | 1.74 | 13.98 | 277.78 | 1.35 | 351.70 | 0.1592 | -1123.0 | -787.1 | |
| 0.00 | 4.95 | 0.00 | 2.51 | 16.80 | 277.68 | 1.24 | 354.21 | 0.2072 | 8.0 | 138.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.98 | 277.46 | 1.03 | 355.29 | 0.2100 | 782.0 | 626.3 | |
| 0.43 | 1.48 | 0.22 | 0.74 | 14.77 | 277.35 | 0.92 | 354.77 | 0.1719 | 776.0 | 658.5 | |
| 1.48 | 19.46 | 0.75 | 9.88 | 17.66 | 276.77 | 0.34 | 358.51 | 0.2209 | 956.6 | 776.2 | |
| 0.00 | 6.08 | 0.00 | 3.07 | 16.56 | 276.40 | -0.03 | 0.15 | 0.2020 | 948.0 | 859.6 | |
| 0.00 | 2.95 | 0.00 | 1.47 | 10.23 | 276.28 | -0.15 | 1.62 | 0.0923 | 912.0 | 558.8 | |
| 1.65 | -31.00 | 0.84 | -31.00 | 17.35 | 276.24 | -0.19 | 0.83 | 0.2156 | 1016.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 17.29 | 275.93 | -0.50 | 2.23 | 0.2147 | 1101.0 | 939.2 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 16.68 | 275.84 | -0.59 | 2.79 | 0.2043 | 942.0 | 738.8 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 18.64 | 275.49 | -0.94 | 3.78 | 0.2380 | 850.0 | 699.2 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 17.56 | 275.46 | -0.97 | 4.23 | 0.2198 | 696.0 | 579.7 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 17.32 | 275.43 | -1.00 | 4.45 | 0.2157 | 830.0 | 598.1 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 17.99 | 275.24 | -1.19 | 5.01 | 0.2274 | 754.0 | 533.8 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 21.69 | 275.02 | -1.41 | 4.54 | 0.2901 | 852.0 | 710.5 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 21.23 | 274.90 | -1.53 | 5.09 | 0.2825 | 1052.0 | 827.3 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 10.77 | 274.85 | -1.58 | 14.96 | 0.1052 | 947.0 | 692.4 | |
| 0.00 | 3.39 | 0.00 | 1.69 | 11.16 | 274.67 | -1.76 | 15.61 | 0.1126 | 893.0 | 790.9 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.03 | 274.63 | -1.80 | 14.00 | 0.1274 | 871.0 | 609.1 | |
| 0.00 | 1.48 | 0.00 | 0.74 | 11.70 | 274.60 | -1.83 | 14.89 | 0.1220 | 929.0 | 787.6 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 23.16 | 274.10 | -2.33 | 6.84 | 0.3160 | 905.0 | 677.8 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 15.83 | 274.20 | -2.23 | 11.23 | 0.1931 | 761.0 | 613.2 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 21.38 | 273.97 | -2.46 | 8.06 | 0.2868 | 1002.0 | 787.5 | |
| 0.00 | 3.30 | 0.00 | 1.69 | 19.26 | 271.12 | -5.31 | 19.45 | 0.2635 | 890.0 | 720.8 | |
| 0.00 | 2.52 | 0.00 | 1.28 | 16.38 | 269.93 | -6.50 | 28.71 | 0.2273 | 686.0 | 611.8 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 17.19 | 268.92 | -7.51 | 30.43 | 0.2476 | 750.0 | 569.7 | |
| 0.00 | 2.26 | 0.00 | 1.19 | 23.14 | 267.48 | -8.95 | 24.57 | 0.3456 | 897.0 | 758.8 | |
| 0.00 | 1.65 | 0.00 | 0.87 | 23.23 | 267.21 | -9.22 | 25.08 | 0.3488 | 737.0 | 574.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
