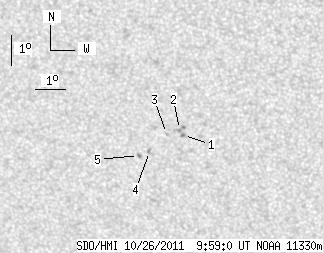

SDO HMI 2011-10-26 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.64 | 0.00 | 6.74 | -21.07 | 257.69 | -17.64 | 146.98 | 0.5209 | 93.0 | 178.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 09:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.43 | 0.00 | 1.40 | -20.93 | 258.26 | -17.07 | 147.66 | 0.5146 | 761.0 | 614.1 | |
| 0.00 | 4.08 | 0.00 | 2.35 | -20.74 | 258.15 | -17.18 | 147.27 | 0.5131 | 711.0 | 666.7 | |
| 0.00 | 1.22 | 0.00 | 0.70 | -20.88 | 257.70 | -17.64 | 146.76 | 0.5185 | 550.0 | 493.9 | |
| 0.00 | 2.17 | 0.00 | 1.27 | -21.50 | 257.05 | -18.28 | 146.52 | 0.5313 | -768.0 | -739.5 | |
| 0.00 | 1.74 | 0.00 | 1.02 | -21.64 | 256.66 | -18.68 | 146.13 | 0.5362 | -789.0 | -623.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
