SDO HMI 2011-10-26 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.27 | 0.00 | 12.38 | -21.74 | 257.61 | -17.18 | 148.29 | 0.5253 | 204.6 | 195.3 | |
|
previous
or next observation for the same group /

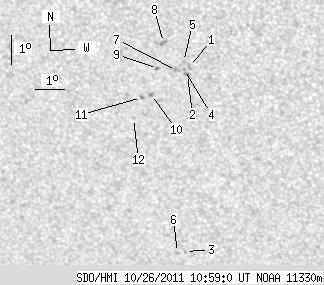

back to the solar disc SDO HMI 2011-10-26 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.17 | 0.00 | 1.24 | -20.63 | 258.39 | -16.40 | 148.33 | 0.5054 | 804.0 | 703.8 | |
| 0.00 | 2.34 | 0.00 | 1.35 | -20.89 | 258.29 | -16.50 | 148.47 | 0.5095 | 723.0 | 618.3 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -26.94 | 257.40 | -17.39 | 153.08 | 0.5907 | 668.0 | 532.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -20.73 | 258.21 | -16.58 | 148.17 | 0.5081 | 799.0 | 619.2 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -20.47 | 258.21 | -16.58 | 147.87 | 0.5048 | 612.0 | 415.1 | |
| 0.00 | 1.65 | 0.00 | 1.01 | -26.98 | 257.11 | -17.68 | 152.74 | 0.5931 | 640.0 | 534.2 | |
| 0.00 | 2.95 | 0.00 | 1.70 | -20.77 | 257.94 | -16.85 | 147.80 | 0.5107 | 610.0 | 583.4 | |
| 0.00 | 2.78 | 0.00 | 1.59 | -19.86 | 257.61 | -17.18 | 146.26 | 0.5022 | -769.0 | -518.0 | |
| 0.00 | 1.91 | 0.00 | 1.10 | -20.72 | 257.31 | -17.48 | 146.81 | 0.5152 | 639.0 | 438.5 | |
| 0.00 | 2.00 | 0.00 | 1.16 | -21.59 | 257.00 | -17.79 | 147.33 | 0.5283 | -944.0 | -782.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -21.70 | 256.65 | -18.14 | 146.95 | 0.5325 | -740.0 | -649.5 | |
| 0.00 | 1.13 | 0.00 | 0.67 | -22.41 | 256.28 | -18.51 | 147.21 | 0.5440 | -587.0 | -382.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
