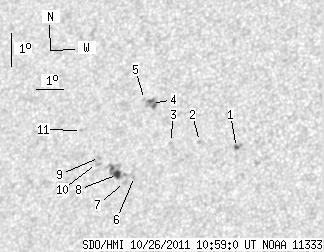

SDO HMI 2011-10-26 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.42 | 40.73 | 3.84 | 24.50 | 15.03 | 241.31 | -33.48 | 70.44 | 0.5676 | 187.0 | 85.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.82 | 3.39 | 1.06 | 1.96 | 15.26 | 244.90 | -29.89 | 68.42 | 0.5190 | -692.8 | -633.7 | |
| 0.00 | 1.56 | 0.00 | 0.92 | 15.39 | 243.55 | -31.24 | 68.86 | 0.5382 | -614.0 | -349.8 | |
| 0.00 | 1.04 | 0.00 | 0.62 | 15.31 | 242.51 | -32.28 | 69.48 | 0.5521 | -666.0 | -473.2 | |
| 0.00 | 8.68 | 0.00 | 5.22 | 16.46 | 241.60 | -33.19 | 67.91 | 0.5688 | -820.0 | -714.8 | |
| 0.00 | 1.65 | 0.00 | 1.00 | 16.57 | 241.32 | -33.47 | 67.85 | 0.5730 | -527.0 | -470.4 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 14.23 | 241.37 | -33.42 | 71.84 | 0.5640 | 680.0 | 566.8 | |
| 0.00 | 2.34 | 0.00 | 1.41 | 14.03 | 241.04 | -33.75 | 72.30 | 0.5680 | 790.0 | 619.4 | |
| 4.60 | 15.98 | 2.78 | 9.65 | 14.26 | 240.74 | -34.05 | 72.02 | 0.5728 | 847.9 | 598.2 | |
| 0.00 | 1.48 | 0.00 | 0.90 | 14.74 | 239.98 | -34.81 | 71.47 | 0.5845 | 785.0 | 671.4 | |
| 0.00 | 3.13 | 0.00 | 1.91 | 14.55 | 239.90 | -34.89 | 71.81 | 0.5850 | 565.0 | 585.8 | |
| 0.00 | 1.13 | 0.00 | 0.70 | 15.52 | 239.15 | -35.64 | 70.48 | 0.5980 | 585.0 | 461.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
