SDO HMI 2011-10-26 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.32 | 106.00 | 24.38 | 110.95 | -21.57 | 331.21 | 56.97 | 242.22 | 0.8826 | -231.5 | -339.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 11:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

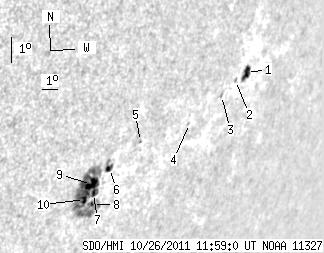

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.34 | 8.68 | 8.05 | 11.04 | -18.81 | 337.95 | 63.71 | 247.17 | 0.9225 | 443.5 | 191.2 | |
| 0.00 | 1.30 | 0.00 | 1.62 | -19.01 | 337.32 | 63.07 | 246.79 | 0.9189 | 532.0 | 532.0 | |
| 0.00 | 1.82 | 0.00 | 2.22 | -19.44 | 336.63 | 62.39 | 246.16 | 0.9153 | 515.0 | 440.3 | |
| 0.00 | 0.78 | 0.00 | 0.91 | -20.22 | 335.01 | 60.77 | 244.89 | 0.9061 | -180.0 | -154.7 | |
| 0.00 | 1.04 | 0.00 | 1.11 | -20.58 | 332.16 | 57.92 | 243.64 | 0.8872 | -325.0 | -346.6 | |
| 3.39 | 6.16 | 3.49 | 6.34 | -21.36 | 330.78 | 56.54 | 242.34 | 0.8792 | -416.1 | -494.2 | |
| 1.91 | 86.22 | 1.96 | 87.71 | -22.15 | 330.33 | 56.09 | 241.34 | 0.8780 | -412.2 | -399.3 | |
| 1.30 | -7.00 | 1.35 | -7.00 | -22.53 | 330.50 | 56.26 | 240.99 | 0.8803 | -357.2 | 999999 | |
| 6.69 | -7.00 | 6.79 | -7.00 | -21.83 | 330.02 | 55.78 | 241.57 | 0.8748 | -874.6 | 999999 | |
| 2.69 | -7.00 | 2.74 | -7.00 | -22.32 | 329.91 | 55.67 | 241.01 | 0.8753 | -730.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
