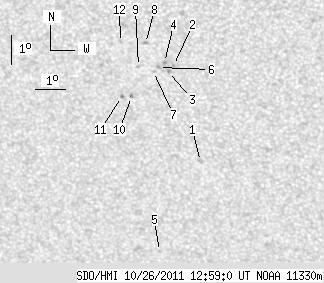

SDO HMI 2011-10-26 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.06 | 0.00 | 9.27 | -21.58 | 257.83 | -15.86 | 150.11 | 0.5134 | 250.4 | 180.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.26 | 0.00 | 1.32 | -23.87 | 259.03 | -14.66 | 154.22 | 0.5344 | 756.0 | 502.6 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -20.66 | 258.48 | -15.21 | 150.24 | 0.4966 | 902.0 | 739.7 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -20.87 | 258.30 | -15.40 | 150.16 | 0.5006 | 682.0 | 622.6 | |
| 0.00 | 1.39 | 0.00 | 0.79 | -20.57 | 258.20 | -15.50 | 149.68 | 0.4976 | 803.0 | 713.0 | |
| 0.00 | 0.87 | 0.00 | 0.53 | -27.02 | 257.21 | -16.49 | 154.34 | 0.5860 | 732.0 | 646.0 | |
| 0.00 | 1.22 | 0.00 | 0.69 | -20.74 | 257.98 | -15.71 | 149.52 | 0.5014 | 907.0 | 726.2 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -20.88 | 257.80 | -15.89 | 149.39 | 0.5045 | 640.0 | 521.4 | |
| 0.00 | 2.00 | 0.00 | 1.14 | -19.96 | 257.63 | -16.06 | 148.11 | 0.4942 | -817.0 | -668.4 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -20.72 | 257.32 | -16.37 | 148.47 | 0.5063 | 462.0 | 347.7 | |
| 0.00 | 1.56 | 0.00 | 0.91 | -21.73 | 256.97 | -16.73 | 149.03 | 0.5216 | -791.0 | -681.0 | |
| 0.00 | 1.13 | 0.00 | 0.66 | -21.74 | 256.63 | -17.06 | 148.54 | 0.5243 | -677.0 | -648.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -19.95 | 256.81 | -16.89 | 146.81 | 0.5008 | -594.0 | -542.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
