SDO HMI 2011-10-26 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.97 | 37.15 | 7.11 | 22.04 | 15.06 | 241.40 | -32.30 | 69.88 | 0.5516 | 116.4 | 37.5 | |
|
previous
or next observation for the same group /

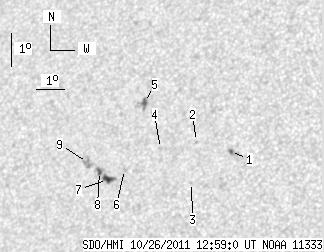

back to the solar disc SDO HMI 2011-10-26 12:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 3.04 | 0.55 | 1.74 | 15.22 | 245.03 | -28.67 | 67.83 | 0.5019 | -787.3 | -753.6 | |
| 0.00 | 0.87 | 0.00 | 0.50 | 15.47 | 243.78 | -29.91 | 68.04 | 0.5203 | -423.0 | -216.4 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 14.23 | 243.79 | -29.90 | 70.36 | 0.5151 | -540.0 | -422.7 | |
| 0.00 | 1.65 | 0.00 | 0.97 | 15.20 | 242.53 | -31.16 | 69.15 | 0.5364 | -655.0 | -450.2 | |
| 2.95 | 9.20 | 1.75 | 5.47 | 16.57 | 241.71 | -31.98 | 67.13 | 0.5531 | -785.0 | -582.4 | |
| 0.00 | 1.82 | 0.00 | 1.08 | 14.51 | 241.34 | -32.36 | 70.92 | 0.5504 | 227.0 | 161.4 | |
| 5.73 | 12.41 | 3.41 | 7.40 | 14.18 | 240.77 | -32.92 | 71.72 | 0.5571 | 819.3 | 581.9 | |
| 2.34 | -7.00 | 1.40 | -7.00 | 14.41 | 240.44 | -33.26 | 71.45 | 0.5624 | 743.8 | 999999 | |
| 0.00 | 7.21 | 0.00 | 4.33 | 14.66 | 239.95 | -33.74 | 71.20 | 0.5698 | 772.0 | 626.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
