SDO HMI 2011-10-26 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.03 | 101.91 | 31.58 | 110.15 | -21.58 | 331.33 | 58.18 | 242.60 | 0.8912 | -219.7 | -335.4 | |
|
previous
or next observation for the same group /

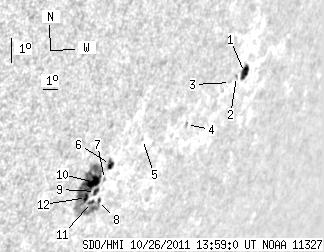

back to the solar disc SDO HMI 2011-10-26 13:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.29 | 8.59 | 9.69 | 11.42 | -18.87 | 337.99 | 64.85 | 247.39 | 0.9295 | 402.3 | 214.7 | |
| 0.00 | 1.48 | 0.00 | 1.92 | -18.95 | 337.46 | 64.32 | 247.17 | 0.9264 | 547.0 | 492.1 | |
| 0.00 | 1.04 | 0.00 | 1.34 | -19.12 | 337.14 | 64.00 | 246.91 | 0.9248 | 521.0 | 428.2 | |
| 0.00 | 1.48 | 0.00 | 1.77 | -20.30 | 334.89 | 61.75 | 245.08 | 0.9127 | -338.0 | -133.9 | |
| 0.00 | 1.04 | 0.00 | 1.15 | -20.58 | 332.22 | 59.07 | 244.01 | 0.8953 | -229.0 | -229.6 | |
| 3.91 | 5.82 | 4.15 | 6.17 | -21.28 | 330.69 | 57.55 | 242.77 | 0.8862 | -439.1 | -410.1 | |
| 0.00 | 1.22 | 0.00 | 1.29 | -21.76 | 330.64 | 57.49 | 242.23 | 0.8871 | -246.0 | -165.2 | |
| 1.30 | 81.24 | 1.40 | 85.09 | -22.46 | 330.73 | 57.58 | 241.51 | 0.8895 | -86.1 | -396.5 | |
| 2.69 | -8.00 | 2.85 | -8.00 | -22.14 | 330.34 | 57.19 | 241.73 | 0.8859 | -288.5 | 999999 | |
| 7.46 | -8.00 | 7.82 | -8.00 | -21.82 | 330.08 | 56.93 | 241.98 | 0.8832 | -796.1 | 999999 | |
| 2.43 | -8.00 | 2.58 | -8.00 | -22.50 | 330.33 | 57.18 | 241.34 | 0.8868 | -367.0 | 999999 | |
| 2.95 | -8.00 | 3.09 | -8.00 | -22.30 | 329.90 | 56.76 | 241.41 | 0.8832 | -729.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
