SDO HMI 2011-10-26 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.21 | 133.42 | 5.36 | 77.78 | 12.29 | 303.38 | 30.79 | 286.30 | 0.5202 | -48.9 | 4.2 | |
|
previous
or next observation for the same group /

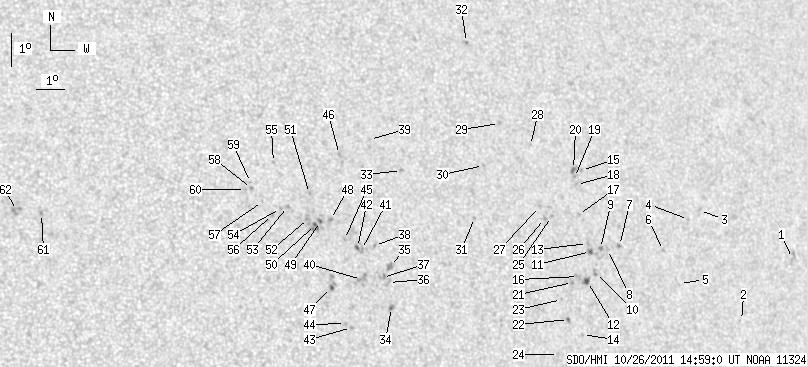

back to the solar disc SDO HMI 2011-10-26 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.03 | 0.00 | 3.44 | 11.08 | 316.22 | 43.63 | 280.90 | 0.6919 | -115.0 | -281.1 | |
| 0.00 | 0.43 | 0.00 | 0.29 | 9.36 | 313.83 | 41.24 | 278.58 | 0.6601 | -476.0 | -507.4 | |
| 0.00 | 1.30 | 0.00 | 0.85 | 12.73 | 312.72 | 40.12 | 283.88 | 0.6498 | -705.0 | -507.3 | |
| 0.00 | 1.22 | 0.00 | 0.78 | 12.48 | 312.23 | 39.64 | 283.60 | 0.6431 | -680.0 | -515.1 | |
| 0.00 | 0.87 | 0.00 | 0.55 | 10.59 | 311.56 | 38.96 | 280.75 | 0.6314 | -537.0 | -453.6 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 11.61 | 311.09 | 38.50 | 282.44 | 0.6267 | -683.0 | -572.6 | |
| 0.00 | 1.74 | 0.00 | 1.08 | 11.85 | 309.44 | 36.84 | 283.15 | 0.6049 | -601.0 | -504.4 | |
| 0.00 | 2.17 | 0.00 | 1.34 | 11.75 | 308.97 | 36.37 | 283.09 | 0.5983 | -506.0 | -494.7 | |
| 0.00 | 2.00 | 0.00 | 1.23 | 11.79 | 308.71 | 36.11 | 283.22 | 0.5949 | -842.0 | -720.9 | |
| 0.00 | 3.30 | 0.00 | 2.02 | 11.08 | 308.41 | 35.82 | 282.09 | 0.5896 | -714.0 | -598.2 | |
| 0.78 | 6.68 | 0.48 | 4.10 | 11.72 | 308.32 | 35.73 | 283.19 | 0.5894 | -936.2 | -629.7 | |
| 2.26 | 3.56 | 1.37 | 2.17 | 10.83 | 308.08 | 35.49 | 281.73 | 0.5845 | -813.7 | -794.7 | |
| 0.00 | 1.82 | 0.00 | 1.11 | 11.96 | 308.24 | 35.65 | 283.62 | 0.5889 | -758.0 | -639.9 | |
| 0.00 | 1.30 | 0.00 | 0.79 | 9.26 | 307.70 | 35.10 | 279.09 | 0.5770 | -583.0 | -388.4 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 14.16 | 308.39 | 35.79 | 287.25 | 0.5960 | -626.0 | -484.4 | |
| 0.00 | 3.21 | 0.00 | 1.95 | 11.00 | 307.77 | 35.17 | 282.07 | 0.5805 | -778.0 | -670.4 | |
| 0.00 | 1.30 | 0.00 | 0.80 | 12.85 | 308.05 | 35.45 | 285.16 | 0.5881 | -465.0 | -465.4 | |
| 0.00 | 1.82 | 0.00 | 1.12 | 13.75 | 308.12 | 35.53 | 286.65 | 0.5914 | -791.0 | -628.0 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 13.97 | 308.09 | 35.49 | 287.02 | 0.5914 | -700.0 | -615.9 | |
| 1.56 | 2.60 | 0.96 | 1.60 | 14.21 | 308.09 | 35.50 | 287.42 | 0.5922 | -745.9 | -668.6 | |
| 0.00 | 1.56 | 0.00 | 0.95 | 10.83 | 307.52 | 34.93 | 281.83 | 0.5768 | -855.0 | -694.9 | |
| 0.00 | 1.22 | 0.00 | 0.73 | 9.73 | 307.23 | 34.64 | 279.98 | 0.5710 | -846.0 | -722.0 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 10.34 | 307.05 | 34.46 | 281.08 | 0.5694 | -650.0 | -593.5 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 8.70 | 306.75 | 34.16 | 278.24 | 0.5630 | -688.0 | -516.5 | |
| 0.00 | 1.56 | 0.00 | 0.94 | 12.84 | 307.03 | 34.44 | 285.43 | 0.5742 | -770.0 | -603.7 | |
| 0.00 | 2.34 | 0.00 | 1.41 | 12.79 | 306.77 | 34.17 | 285.42 | 0.5704 | -718.0 | -575.1 | |
| 0.00 | 1.30 | 0.00 | 0.78 | 13.16 | 306.64 | 34.05 | 286.10 | 0.5696 | -814.0 | -661.9 | |
| 0.00 | 0.87 | 0.00 | 0.52 | 15.01 | 306.62 | 34.03 | 289.28 | 0.5748 | -471.0 | -460.3 | |
| 0.00 | 2.08 | 0.00 | 1.25 | 15.72 | 305.60 | 33.01 | 290.93 | 0.5636 | -862.0 | -599.0 | |
| 0.00 | 1.13 | 0.00 | 0.67 | 14.48 | 304.80 | 32.20 | 289.10 | 0.5482 | -564.0 | -522.6 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 12.94 | 304.24 | 31.64 | 286.52 | 0.5354 | -735.0 | -577.4 | |
| 0.00 | 1.48 | 0.00 | 0.88 | 18.24 | 304.87 | 32.28 | 295.57 | 0.5644 | -968.0 | -802.5 | |
| 0.00 | 1.39 | 0.00 | 0.80 | 14.46 | 301.85 | 29.26 | 290.40 | 0.5070 | 817.0 | 658.4 | |
| 0.00 | 2.26 | 0.00 | 1.27 | 10.37 | 301.01 | 28.41 | 282.62 | 0.4816 | 994.0 | 785.2 | |
| 0.00 | 4.43 | 0.00 | 2.51 | 11.59 | 301.07 | 28.47 | 285.11 | 0.4857 | 765.0 | 632.9 | |
| 0.00 | 3.65 | 0.00 | 2.06 | 11.12 | 300.98 | 28.39 | 284.17 | 0.4831 | 474.0 | 432.1 | |
| 0.00 | 3.47 | 0.00 | 1.96 | 11.27 | 300.79 | 28.20 | 284.56 | 0.4807 | 629.0 | 623.5 | |
| 0.00 | 1.65 | 0.00 | 0.93 | 12.24 | 300.62 | 28.03 | 286.62 | 0.4812 | 715.0 | 609.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 15.44 | 300.87 | 28.28 | 292.82 | 0.4974 | 792.0 | 562.4 | |
| 0.00 | 6.60 | 0.00 | 3.70 | 11.24 | 300.07 | 27.47 | 284.78 | 0.4699 | 915.0 | 693.9 | |
| 0.00 | 2.26 | 0.00 | 1.27 | 12.14 | 300.16 | 27.57 | 286.61 | 0.4741 | 535.0 | 601.3 | |
| 1.04 | 1.91 | 0.58 | 1.07 | 12.21 | 300.03 | 27.44 | 286.80 | 0.4724 | 864.7 | 767.5 | |
| 0.00 | 1.48 | 0.00 | 0.82 | 9.82 | 299.59 | 26.99 | 281.92 | 0.4590 | 818.0 | 556.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 9.95 | 299.40 | 26.80 | 282.25 | 0.4564 | 820.0 | 658.4 | |
| 0.00 | 1.22 | 0.00 | 0.68 | 12.46 | 299.61 | 27.02 | 287.53 | 0.4671 | 632.0 | 598.9 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 15.03 | 299.76 | 27.17 | 292.69 | 0.4800 | 782.0 | 630.5 | |
| 1.22 | 6.51 | 0.67 | 3.62 | 11.04 | 299.02 | 26.43 | 284.77 | 0.4536 | 934.4 | 726.3 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 13.08 | 299.21 | 26.61 | 289.04 | 0.4635 | 913.0 | 696.0 | |
| 1.48 | 1.65 | 0.82 | 0.92 | 13.03 | 298.86 | 26.26 | 289.13 | 0.4582 | 793.1 | 812.0 | |
| 0.87 | 5.21 | 0.48 | 2.89 | 12.95 | 298.68 | 26.08 | 289.05 | 0.4552 | 1064.1 | 868.3 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 13.89 | 298.58 | 25.99 | 291.09 | 0.4578 | 607.0 | 524.7 | |
| 0.00 | 4.69 | 0.00 | 2.60 | 13.14 | 298.46 | 25.87 | 289.57 | 0.4528 | 850.0 | 765.0 | |
| 0.00 | 2.26 | 0.00 | 1.25 | 13.53 | 297.79 | 25.20 | 290.81 | 0.4447 | 764.0 | 647.3 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 13.47 | 297.55 | 24.96 | 290.85 | 0.4409 | 769.0 | 667.7 | |
| 0.00 | 1.22 | 0.00 | 0.67 | 14.87 | 297.48 | 24.88 | 293.90 | 0.4467 | 648.0 | 505.1 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 13.30 | 297.26 | 24.67 | 290.66 | 0.4359 | 867.0 | 711.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 13.71 | 296.97 | 24.37 | 291.74 | 0.4335 | 696.0 | 553.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 14.11 | 296.64 | 24.05 | 292.86 | 0.4307 | 794.0 | 685.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 14.29 | 296.63 | 24.03 | 293.27 | 0.4315 | 633.0 | 543.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 14.09 | 296.44 | 23.84 | 292.96 | 0.4276 | 718.0 | 602.7 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 13.56 | 289.70 | 17.11 | 298.25 | 0.3261 | -895.0 | -735.6 | |
| 0.00 | 5.99 | 0.00 | 3.12 | 13.67 | 288.91 | 16.31 | 299.62 | 0.3154 | -737.0 | -772.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
