SDO HMI 2011-10-26 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.42 | 92.78 | 27.11 | 102.25 | -21.40 | 331.36 | 58.76 | 242.97 | 0.8947 | -204.7 | -338.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 14:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

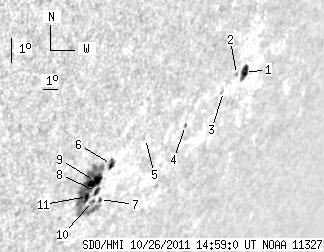

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.03 | 9.03 | 9.56 | 12.29 | -18.88 | 338.05 | 65.45 | 247.51 | 0.9331 | 393.3 | 153.6 | |
| 0.00 | 1.56 | 0.00 | 2.08 | -18.90 | 337.45 | 64.86 | 247.35 | 0.9296 | 527.0 | 486.7 | |
| 0.00 | 0.69 | 0.00 | 0.91 | -19.40 | 336.86 | 64.26 | 246.69 | 0.9268 | 463.0 | 437.2 | |
| 0.00 | 1.39 | 0.00 | 1.70 | -20.34 | 334.84 | 62.24 | 245.17 | 0.9160 | -134.0 | -84.5 | |
| 0.00 | 0.78 | 0.00 | 0.88 | -20.56 | 332.34 | 59.75 | 244.22 | 0.9000 | -325.0 | -304.8 | |
| 2.60 | 5.21 | 2.81 | 5.62 | -21.29 | 330.69 | 58.09 | 242.94 | 0.8901 | -464.0 | -357.2 | |
| 1.04 | 1.56 | 1.14 | 1.71 | -22.44 | 330.70 | 58.11 | 241.71 | 0.8931 | -144.6 | -5.6 | |
| 2.60 | 3.73 | 2.80 | 4.02 | -22.15 | 330.32 | 57.73 | 241.90 | 0.8897 | -276.6 | -131.7 | |
| 8.24 | 66.57 | 8.77 | 70.61 | -21.79 | 330.04 | 57.44 | 242.18 | 0.8868 | -759.6 | -413.7 | |
| 0.00 | 2.26 | 0.00 | 2.43 | -22.47 | 330.30 | 57.70 | 241.54 | 0.8903 | -484.0 | -373.8 | |
| 1.91 | -9.00 | 2.03 | -9.00 | -22.28 | 329.87 | 57.27 | 241.61 | 0.8868 | -726.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
