SDO HMI 2011-10-26 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.65 | 21.34 | 0.93 | 12.17 | -21.19 | 257.79 | -14.25 | 152.29 | 0.4965 | 300.6 | 142.4 | |
|
previous
or next observation for the same group /

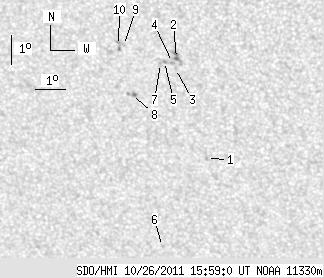

back to the solar disc SDO HMI 2011-10-26 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.76 | -23.89 | 259.13 | -12.92 | 156.95 | 0.5240 | 766.0 | 577.7 | |
| 1.65 | 7.38 | 0.93 | 4.17 | -20.56 | 258.46 | -13.59 | 152.81 | 0.4834 | 874.9 | 688.7 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -20.89 | 258.39 | -13.65 | 153.04 | 0.4882 | 595.0 | 509.2 | |
| 0.00 | 1.65 | 0.00 | 0.93 | -20.69 | 258.31 | -13.73 | 152.71 | 0.4862 | 684.0 | 588.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -20.67 | 258.05 | -13.99 | 152.24 | 0.4876 | 922.0 | 681.9 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -26.98 | 257.27 | -14.78 | 156.64 | 0.5753 | 652.0 | 547.3 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -20.74 | 257.92 | -14.13 | 152.08 | 0.4895 | 704.0 | 539.3 | |
| 0.00 | 2.69 | 0.00 | 1.55 | -21.79 | 256.85 | -15.19 | 151.43 | 0.5110 | -704.0 | -733.2 | |
| 0.00 | 0.87 | 0.00 | 0.49 | -20.17 | 256.76 | -15.29 | 149.58 | 0.4907 | -788.0 | -457.7 | |
| 0.00 | 3.64 | 0.00 | 2.07 | -20.17 | 256.59 | -15.45 | 149.31 | 0.4921 | -660.0 | -727.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
