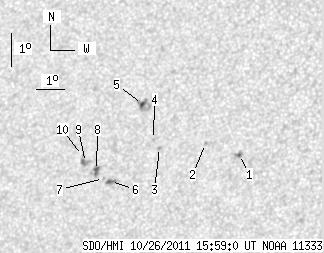

SDO HMI 2011-10-26 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.68 | 35.67 | 5.05 | 20.79 | 15.25 | 241.46 | -30.58 | 68.74 | 0.5288 | 191.0 | 118.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 15:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 3.04 | 0.73 | 1.71 | 15.10 | 245.32 | -26.72 | 66.88 | 0.4740 | -846.5 | -754.0 | |
| 0.00 | 1.39 | 0.00 | 0.79 | 15.39 | 244.10 | -27.95 | 67.07 | 0.4926 | -655.0 | -471.5 | |
| 0.00 | 1.04 | 0.00 | 0.60 | 15.21 | 242.50 | -29.54 | 68.33 | 0.5141 | -576.0 | -422.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 15.44 | 242.25 | -29.79 | 68.03 | 0.5185 | -553.0 | -349.6 | |
| 1.74 | 11.72 | 1.01 | 6.83 | 16.48 | 241.68 | -30.36 | 66.43 | 0.5309 | -773.8 | -206.0 | |
| 2.26 | 4.08 | 1.32 | 2.38 | 14.11 | 240.92 | -31.13 | 71.13 | 0.5319 | 946.4 | 805.7 | |
| 0.00 | 1.04 | 0.00 | 0.61 | 14.19 | 240.65 | -31.39 | 71.09 | 0.5359 | 775.0 | 659.8 | |
| 3.38 | 5.73 | 1.99 | 3.37 | 14.42 | 240.37 | -31.68 | 70.80 | 0.5407 | 863.8 | 617.1 | |
| 0.00 | 5.47 | 0.00 | 3.23 | 14.64 | 239.93 | -32.11 | 70.59 | 0.5475 | 893.0 | 694.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 14.85 | 239.79 | -32.26 | 70.28 | 0.5502 | 658.0 | 551.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
