groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11324 5.47 115.55 3.25 67.51 12.42 301.93 30.99 286.37 0.5241 124.7 42.0


previous   or   next   observation for the same group / back to the solar disc

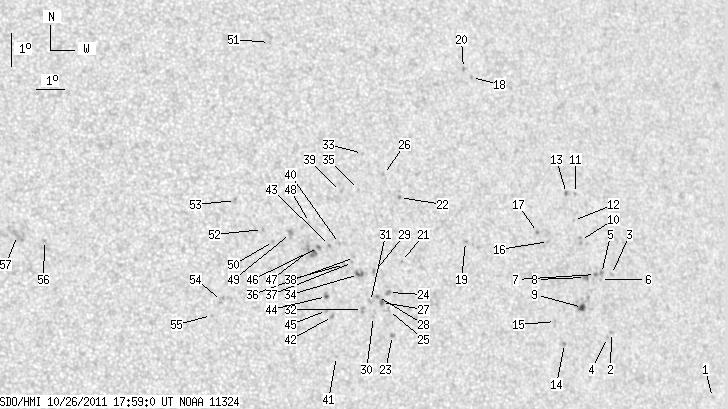

SDO HMI 2011-10-26 17:59:00 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.95 0.00 0.63 7.88 312.78 41.84 276.32 0.6671 -474.0 -412.4
2 0.00 1.13 0.00 0.71 10.03 309.08 38.14 279.97 0.6197 -668.0 -520.6
3 0.00 1.82 0.00 1.15 11.76 309.34 38.40 282.71 0.6257 -533.0 -448.0
4 0.00 1.04 0.00 0.65 9.89 308.90 37.96 279.77 0.6172 -679.0 -585.3
5 0.00 2.26 0.00 1.42 11.81 308.96 38.02 282.86 0.6207 -681.0 -551.2
6 0.00 0.78 0.00 0.49 11.64 308.89 37.95 282.59 0.6195 -554.0 -437.0
7 0.00 1.74 0.00 1.09 11.80 308.73 37.79 282.88 0.6175 -872.0 -697.6
8 0.00 3.47 0.00 2.17 11.73 308.33 37.39 282.84 0.6121 -950.0 -851.2
9 2.69 11.97 1.67 7.45 10.84 308.08 37.14 281.43 0.6073 -861.5 -685.3
10 0.00 2.95 0.00 1.85 12.84 308.33 37.38 284.65 0.6141 -739.0 -635.4
11 0.00 1.30 0.00 0.82 14.26 308.39 37.45 286.92 0.6183 -546.0 -407.2
12 0.00 0.78 0.00 0.49 13.46 308.16 37.22 285.68 0.6134 -700.0 -558.0
13 0.00 1.74 0.00 1.09 14.28 308.05 37.11 287.04 0.6138 -794.0 -644.0
14 0.00 1.39 0.00 0.85 9.80 307.26 36.32 279.84 0.5946 -875.0 -696.2
15 0.00 1.13 0.00 0.69 10.47 307.01 36.07 281.01 0.5920 -737.0 -596.5
16 0.00 1.21 0.00 0.75 12.87 307.11 36.17 285.01 0.5979 -838.0 -620.9
17 0.00 1.30 0.00 0.80 13.16 306.74 35.80 285.59 0.5936 -804.0 -643.8
18 0.00 1.04 0.00 0.64 17.96 305.18 34.24 294.11 0.5886 -711.0 -613.2
19 0.00 1.56 0.00 0.93 13.02 304.04 33.10 286.17 0.5561 -786.0 -597.4
20 0.00 1.65 0.00 1.01 18.25 304.94 34.00 294.70 0.5868 -984.0 -770.5
21 0.00 1.04 0.00 0.60 12.52 301.66 30.72 286.09 0.5211 365.0 372.7
22 0.00 1.13 0.00 0.66 14.45 301.87 30.93 289.59 0.5304 725.0 660.1
23 0.00 2.17 0.00 1.25 10.32 301.08 30.14 282.04 0.5072 922.0 718.7
24 0.00 2.60 0.00 1.50 11.62 301.09 30.15 284.55 0.5103 780.0 678.7
25 0.00 1.82 0.00 1.05 11.08 301.02 30.08 283.53 0.5080 529.0 431.3
26 0.00 0.87 0.00 0.50 15.17 301.41 30.47 291.12 0.5267 619.0 498.4
27 0.52 1.91 0.30 1.09 11.33 300.81 29.87 284.08 0.5055 842.0 704.1
28 0.00 1.39 0.00 0.80 11.51 300.69 29.75 284.49 0.5042 894.0 760.0
29 0.00 2.17 0.00 1.24 12.26 300.67 29.73 285.96 0.5061 749.0 460.3
30 0.00 1.13 0.00 0.64 10.92 300.48 29.54 283.39 0.4997 728.0 589.6
31 0.00 1.91 0.00 1.09 11.37 300.43 29.49 284.30 0.5000 803.0 622.3
32 0.00 2.60 0.00 1.48 11.14 300.12 29.18 283.95 0.4950 751.0 692.1
33 0.00 1.04 0.00 0.60 15.83 300.76 29.82 292.68 0.5206 576.0 399.8
34 1.74 4.51 0.99 2.57 12.20 300.11 29.16 286.05 0.4977 660.3 677.7
35 0.00 0.95 0.00 0.55 14.75 300.45 29.51 290.83 0.5117 719.0 536.6
36 0.00 0.87 0.00 0.50 12.71 300.03 29.09 287.10 0.4982 761.0 599.5
37 0.00 1.04 0.00 0.59 12.57 299.94 29.00 286.85 0.4964 769.0 623.4
38 0.00 1.13 0.00 0.64 12.52 299.66 28.72 286.87 0.4921 705.0 534.0
39 0.00 0.87 0.00 0.50 14.72 299.81 28.87 291.10 0.5026 692.0 636.6
40 0.00 0.95 0.00 0.54 13.15 299.56 28.62 288.18 0.4930 702.0 525.5
41 0.00 0.95 0.00 0.54 9.78 299.09 28.15 281.48 0.4763 836.0 681.6
42 0.00 1.82 0.00 1.03 10.98 299.07 28.13 283.98 0.4789 987.0 735.0
43 0.00 1.39 0.00 0.79 13.11 299.21 28.27 288.25 0.4877 905.0 732.9
44 0.52 2.08 0.29 1.17 11.58 298.92 27.98 285.28 0.4785 933.2 739.7
45 0.00 1.04 0.00 0.59 11.16 298.88 27.94 284.44 0.4766 934.0 811.5
46 0.00 1.74 0.00 0.98 13.06 298.82 27.88 288.35 0.4819 900.0 745.0
47 0.00 10.85 0.00 6.10 12.99 298.50 27.56 288.35 0.4769 934.0 816.8
48 0.00 0.35 0.00 0.20 13.83 298.60 27.66 290.00 0.4817 652.0 532.2
49 0.00 4.77 0.00 2.68 13.52 297.91 26.97 289.76 0.4705 873.0 665.5
50 0.00 1.04 0.00 0.58 13.30 297.30 26.36 289.64 0.4607 1027.0 794.5
51 0.00 0.95 0.00 0.55 19.34 298.06 27.11 300.93 0.5034 656.0 489.1
52 0.00 1.21 0.00 0.68 13.68 296.97 26.03 290.62 0.4575 630.0 585.1
53 0.00 2.00 0.00 1.11 14.58 296.16 25.22 293.06 0.4500 789.0 646.1
54 0.00 3.38 0.00 1.85 11.60 295.36 24.42 286.96 0.4252 -654.0 -634.8
55 0.00 1.04 0.00 0.57 11.16 294.99 24.05 286.14 0.4180 -696.0 -601.1
56 0.00 1.04 0.00 0.55 13.58 289.72 18.78 296.30 0.3506 -984.0 -819.4
57 0.00 6.59 0.00 3.47 13.75 288.86 17.92 297.75 0.3393 -904.0 -758.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
