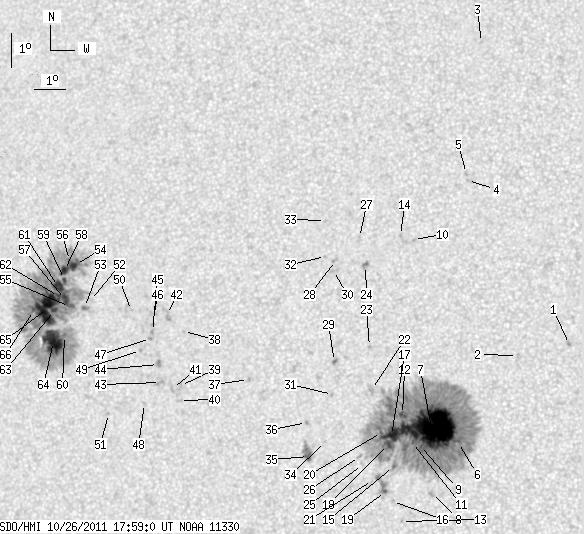

SDO HMI 2011-10-26 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 262.19 | 1409.10 | 139.45 | 751.28 | 7.74 | 250.23 | -20.71 | 81.71 | 0.3546 | -269.5 | -73.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 17:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.79 | 8.95 | 259.90 | -11.04 | 69.29 | 0.2031 | -1011.0 | -784.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 8.59 | 258.31 | -12.63 | 73.08 | 0.2270 | -864.0 | -671.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 18.00 | 256.64 | -14.30 | 45.80 | 0.3292 | -883.0 | -637.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 13.80 | 256.50 | -14.44 | 57.09 | 0.2898 | -816.0 | -663.6 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 14.01 | 256.45 | -14.49 | 56.54 | 0.2922 | -747.0 | -614.1 | |
| 0.87 | 752.98 | 0.44 | 387.06 | 5.96 | 256.57 | -14.37 | 85.24 | 0.2488 | -1129.3 | -446.8 | |
| 128.85 | -6.00 | 66.14 | -6.00 | 6.39 | 255.72 | -15.22 | 83.80 | 0.2636 | -1549.1 | 999999 | |
| 0.00 | 2.69 | 0.00 | 1.38 | 4.43 | 255.77 | -15.17 | 91.30 | 0.2621 | 506.0 | 540.2 | |
| 0.87 | -6.00 | 0.45 | -6.00 | 5.85 | 255.39 | -15.55 | 85.92 | 0.2685 | -905.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 11.99 | 254.90 | -16.04 | 64.99 | 0.2996 | -776.0 | -699.9 | |
| 1.21 | -6.00 | 0.63 | -6.00 | 5.93 | 255.14 | -15.80 | 85.66 | 0.2728 | -900.9 | 999999 | |
| 3.38 | -6.00 | 1.75 | -6.00 | 6.76 | 254.81 | -16.14 | 82.75 | 0.2795 | -828.4 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 3.57 | 254.86 | -16.08 | 94.24 | 0.2785 | 765.0 | 519.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 12.10 | 254.48 | -16.46 | 65.17 | 0.3066 | -805.0 | -695.6 | |
| 0.52 | -6.00 | 0.27 | -6.00 | 5.20 | 254.57 | -16.37 | 88.35 | 0.2820 | -558.7 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 4.16 | 254.57 | -16.37 | 92.06 | 0.2826 | -590.0 | -431.4 | |
| 13.54 | -6.00 | 6.99 | -6.00 | 6.12 | 254.48 | -16.46 | 85.09 | 0.2840 | -1097.3 | 999999 | |
| 3.73 | -6.00 | 1.93 | -6.00 | 5.85 | 254.40 | -16.54 | 86.06 | 0.2852 | -983.8 | 999999 | |
| 1.04 | 11.11 | 0.54 | 5.74 | 4.45 | 254.34 | -16.60 | 90.99 | 0.2861 | 914.8 | -351.8 | |
| 1.13 | -6.00 | 0.58 | -6.00 | 6.20 | 254.17 | -16.77 | 84.87 | 0.2893 | -753.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 4.77 | 253.93 | -17.01 | 89.84 | 0.2929 | -538.0 | -584.6 | |
| 0.00 | 5.99 | 0.00 | 3.11 | 7.48 | 253.81 | -17.13 | 80.65 | 0.2974 | -342.0 | -268.0 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 8.76 | 253.69 | -17.25 | 76.48 | 0.3028 | 897.0 | 691.5 | |
| 0.00 | 4.34 | 0.00 | 2.27 | 11.17 | 253.43 | -17.51 | 69.13 | 0.3174 | -1034.0 | -894.2 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 5.24 | 253.60 | -17.34 | 88.24 | 0.2982 | -601.0 | -372.9 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 5.47 | 253.50 | -17.44 | 87.45 | 0.3000 | -626.0 | -395.8 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.01 | 253.18 | -17.76 | 66.92 | 0.3257 | -674.0 | -574.1 | |
| 0.00 | 2.26 | 0.00 | 1.18 | 11.30 | 252.46 | -18.48 | 69.67 | 0.3329 | -605.0 | -578.8 | |
| 0.95 | 2.00 | 0.50 | 1.04 | 8.28 | 252.60 | -18.34 | 78.62 | 0.3190 | 1019.8 | 838.9 | |
| 0.00 | 2.60 | 0.00 | 1.37 | 11.00 | 252.42 | -18.52 | 70.58 | 0.3322 | -825.0 | -766.9 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 7.30 | 252.58 | -18.36 | 81.71 | 0.3171 | 765.0 | 552.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 11.41 | 252.13 | -18.81 | 69.64 | 0.3386 | -898.0 | -715.6 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.49 | 252.05 | -18.89 | 66.72 | 0.3456 | -787.0 | -618.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 5.89 | 252.42 | -18.52 | 86.18 | 0.3181 | -767.0 | -510.6 | |
| 4.16 | 12.93 | 2.18 | 6.77 | 5.43 | 251.90 | -19.05 | 87.66 | 0.3266 | -908.4 | -688.3 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 6.44 | 251.80 | -19.15 | 84.57 | 0.3288 | -811.0 | -671.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 7.67 | 249.88 | -21.06 | 81.48 | 0.3616 | -835.0 | -763.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.03 | 247.69 | -23.25 | 78.65 | 0.3994 | 769.0 | 594.9 | |
| 0.00 | 3.73 | 0.00 | 2.01 | 7.42 | 247.69 | -23.25 | 82.69 | 0.3963 | 940.0 | 731.9 | |
| 0.00 | 2.17 | 0.00 | 1.17 | 6.97 | 247.68 | -23.26 | 83.82 | 0.3959 | 889.0 | 675.9 | |
| 0.00 | 2.43 | 0.00 | 1.31 | 7.32 | 247.43 | -23.51 | 82.99 | 0.4003 | 634.0 | 639.6 | |
| 0.00 | 6.42 | 0.00 | 3.48 | 9.52 | 247.13 | -23.81 | 77.66 | 0.4094 | 861.0 | 777.0 | |
| 0.00 | 4.51 | 0.00 | 2.44 | 7.48 | 247.03 | -23.91 | 82.66 | 0.4069 | 863.0 | 727.0 | |
| 0.00 | 3.82 | 0.00 | 2.07 | 8.02 | 246.93 | -24.01 | 81.37 | 0.4092 | 996.0 | 862.3 | |
| 0.00 | 2.08 | 0.00 | 1.13 | 8.99 | 246.67 | -24.27 | 79.09 | 0.4153 | 880.0 | 748.3 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 9.20 | 246.65 | -24.29 | 78.59 | 0.4160 | 977.0 | 771.4 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 8.78 | 246.62 | -24.32 | 79.61 | 0.4156 | 955.0 | 741.6 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 6.84 | 246.54 | -24.40 | 84.31 | 0.4140 | 768.0 | 554.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 8.41 | 246.31 | -24.63 | 80.58 | 0.4197 | 688.0 | 509.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.60 | 245.93 | -25.01 | 77.92 | 0.4282 | 958.0 | 780.0 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 6.50 | 245.37 | -25.57 | 85.25 | 0.4322 | 711.0 | 514.9 | |
| 0.00 | 2.17 | 0.00 | 1.20 | 9.84 | 244.53 | -26.41 | 77.84 | 0.4502 | 788.0 | 651.2 | |
| 0.69 | 3.38 | 0.39 | 1.88 | 9.63 | 244.34 | -26.60 | 78.38 | 0.4525 | 1110.8 | 898.9 | |
| 6.59 | 546.81 | 3.68 | 306.42 | 10.90 | 243.92 | -27.02 | 75.77 | 0.4621 | 1102.2 | 365.8 | |
| 1.04 | -54.00 | 0.58 | -54.00 | 9.64 | 243.83 | -27.11 | 78.51 | 0.4603 | 1180.4 | 999999 | |
| 1.74 | -54.00 | 0.97 | -54.00 | 11.01 | 243.71 | -27.23 | 75.62 | 0.4657 | 892.8 | 999999 | |
| 5.55 | -54.00 | 3.10 | -54.00 | 9.84 | 243.68 | -27.26 | 78.12 | 0.4631 | 1346.2 | 999999 | |
| 6.42 | -54.00 | 3.59 | -54.00 | 10.71 | 243.57 | -27.38 | 76.32 | 0.4669 | 1073.7 | 999999 | |
| 1.82 | -54.00 | 1.02 | -54.00 | 10.44 | 243.59 | -27.35 | 76.88 | 0.4659 | 1125.3 | 999999 | |
| 1.39 | -54.00 | 0.77 | -54.00 | 8.77 | 243.74 | -27.20 | 80.43 | 0.4601 | 1037.4 | 999999 | |
| 7.55 | -54.00 | 4.23 | -54.00 | 10.22 | 243.41 | -27.53 | 77.40 | 0.4681 | 1100.3 | 999999 | |
| 1.56 | -54.00 | 0.87 | -54.00 | 9.92 | 243.43 | -27.51 | 78.03 | 0.4670 | 1234.3 | 999999 | |
| 2.17 | -54.00 | 1.21 | -54.00 | 9.50 | 243.34 | -27.60 | 78.95 | 0.4676 | 1377.2 | 999999 | |
| 31.41 | -54.00 | 17.56 | -54.00 | 8.57 | 243.38 | -27.56 | 80.92 | 0.4653 | 1198.1 | 999999 | |
| 32.80 | -54.00 | 18.40 | -54.00 | 9.55 | 243.09 | -27.85 | 78.92 | 0.4714 | 1226.8 | 999999 | |
| 1.21 | -54.00 | 0.68 | -54.00 | 9.47 | 242.62 | -28.32 | 79.21 | 0.4783 | 697.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
