SDO HMI 2011-10-26 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.17 | 73.83 | 21.22 | 86.40 | -21.51 | 331.07 | 60.68 | 243.45 | 0.9078 | -252.6 | -415.4 | |
|
previous
or next observation for the same group /

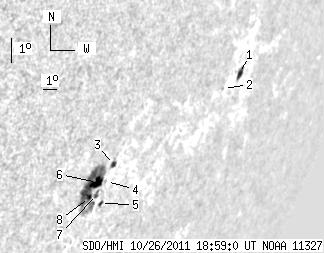

back to the solar disc SDO HMI 2011-10-26 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.43 | 6.33 | 6.65 | 9.54 | -18.91 | 338.09 | 67.70 | 248.00 | 0.9455 | 380.5 | 68.5 | |
| 0.00 | 1.13 | 0.00 | 1.63 | -19.31 | 337.11 | 66.72 | 247.37 | 0.9408 | 511.0 | 422.4 | |
| 2.60 | 4.08 | 3.00 | 4.71 | -21.25 | 330.65 | 60.26 | 243.64 | 0.9049 | -409.9 | -337.1 | |
| 0.00 | 0.78 | 0.00 | 0.90 | -21.81 | 330.58 | 60.19 | 243.04 | 0.9057 | -137.0 | -105.0 | |
| 1.21 | 2.60 | 1.42 | 3.05 | -22.54 | 330.72 | 60.33 | 242.30 | 0.9082 | -131.5 | -26.8 | |
| 7.11 | 56.31 | 8.08 | 63.58 | -21.79 | 329.99 | 59.60 | 242.87 | 0.9017 | -707.9 | -495.6 | |
| 0.00 | 2.60 | 0.00 | 2.99 | -22.21 | 330.22 | 59.83 | 242.51 | 0.9041 | -401.0 | -255.4 | |
| 1.82 | -6.00 | 2.07 | -6.00 | -22.27 | 329.81 | 59.43 | 242.31 | 0.9016 | -717.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
