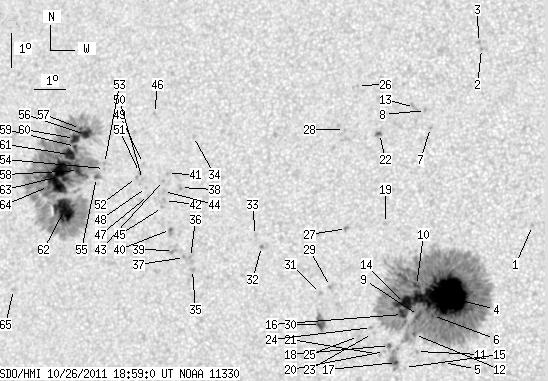

SDO HMI 2011-10-26 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 272.71 | 1393.01 | 144.76 | 739.04 | 7.67 | 250.42 | -19.97 | 81.71 | 0.3424 | -196.7 | -91.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-26 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 8.54 | 258.38 | -12.01 | 72.54 | 0.2167 | -1040.0 | -787.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 13.81 | 256.55 | -13.84 | 55.99 | 0.2815 | -931.0 | -744.6 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 13.99 | 256.44 | -13.94 | 55.64 | 0.2845 | -864.0 | -688.8 | |
| 127.03 | 772.67 | 65.04 | 396.13 | 6.37 | 255.73 | -14.66 | 83.69 | 0.2542 | -1571.9 | -448.3 | |
| 0.00 | 2.86 | 0.00 | 1.47 | 4.41 | 255.75 | -14.64 | 91.47 | 0.2532 | 574.0 | 397.2 | |
| 1.04 | -4.00 | 0.53 | -4.00 | 5.80 | 255.37 | -15.01 | 86.02 | 0.2595 | -856.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 11.41 | 255.08 | -15.31 | 65.92 | 0.2847 | -832.0 | -612.6 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 11.91 | 254.89 | -15.49 | 64.53 | 0.2908 | -834.0 | -713.5 | |
| 3.64 | -4.00 | 1.87 | -4.00 | 5.79 | 254.94 | -15.45 | 86.13 | 0.2668 | -667.4 | 999999 | |
| 2.69 | -4.00 | 1.38 | -4.00 | 6.68 | 254.85 | -15.54 | 82.82 | 0.2694 | -908.4 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 4.71 | 254.91 | -15.48 | 90.16 | 0.2673 | -821.0 | -583.6 | |
| 1.04 | -4.00 | 0.54 | -4.00 | 5.22 | 254.83 | -15.56 | 88.27 | 0.2684 | -651.7 | 999999 | |
| 0.00 | 3.73 | 0.00 | 1.93 | 11.99 | 254.54 | -15.85 | 64.73 | 0.2967 | -798.0 | -778.0 | |
| 13.28 | -4.00 | 6.84 | -4.00 | 6.13 | 254.49 | -15.89 | 84.92 | 0.2746 | -1110.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 4.23 | 254.54 | -15.84 | 91.91 | 0.2737 | -346.0 | -355.1 | |
| 4.16 | -4.00 | 2.15 | -4.00 | 5.81 | 254.44 | -15.95 | 86.13 | 0.2752 | -995.6 | 999999 | |
| 1.39 | 18.39 | 0.72 | 9.49 | 4.37 | 254.29 | -16.10 | 91.34 | 0.2778 | 895.7 | 31.4 | |
| 1.82 | -17.00 | 0.94 | -17.00 | 4.87 | 254.06 | -16.33 | 89.52 | 0.2814 | -939.3 | 999999 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 8.50 | 253.81 | -16.58 | 76.88 | 0.2910 | 832.0 | 579.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 4.69 | 253.91 | -16.48 | 90.15 | 0.2840 | -746.0 | -603.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 4.60 | 253.79 | -16.60 | 90.47 | 0.2861 | -528.0 | -480.1 | |
| 1.48 | 2.95 | 0.77 | 1.54 | 11.19 | 253.48 | -16.91 | 68.47 | 0.3081 | -1052.5 | -775.2 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 5.22 | 253.52 | -16.87 | 88.30 | 0.2904 | -497.0 | -497.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 5.40 | 253.49 | -16.90 | 87.68 | 0.2910 | -651.0 | -542.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 5.12 | 253.09 | -17.30 | 88.64 | 0.2976 | 721.0 | 616.5 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.61 | 252.69 | -17.70 | 65.14 | 0.3285 | -778.0 | -602.8 | |
| 0.00 | 2.34 | 0.00 | 1.22 | 8.32 | 252.59 | -17.80 | 78.20 | 0.3104 | 836.0 | 763.2 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 11.28 | 252.36 | -18.03 | 69.31 | 0.3259 | -783.0 | -643.8 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 6.58 | 252.16 | -18.23 | 83.93 | 0.3139 | -648.0 | -538.3 | |
| 4.60 | 10.41 | 2.40 | 5.44 | 5.44 | 251.88 | -18.51 | 87.60 | 0.3177 | -938.0 | -780.1 | |
| 0.00 | 1.39 | 0.00 | 0.73 | 6.37 | 251.85 | -18.54 | 84.69 | 0.3187 | -808.0 | -637.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 7.71 | 249.91 | -20.48 | 81.18 | 0.3523 | -926.0 | -779.0 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 8.03 | 249.70 | -20.69 | 80.34 | 0.3564 | -800.0 | -657.0 | |
| 0.00 | 1.56 | 0.00 | 0.84 | 10.93 | 247.49 | -22.90 | 73.80 | 0.3995 | 746.0 | 557.8 | |
| 0.00 | 2.52 | 0.00 | 1.35 | 6.96 | 247.72 | -22.67 | 83.75 | 0.3865 | 907.0 | 708.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 7.31 | 247.64 | -22.75 | 82.85 | 0.3883 | 821.0 | 778.0 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 7.31 | 247.44 | -22.95 | 82.91 | 0.3914 | 834.0 | 672.8 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 9.39 | 247.18 | -23.21 | 77.74 | 0.3996 | 977.0 | 834.2 | |
| 0.00 | 5.47 | 0.00 | 2.95 | 7.50 | 247.07 | -23.32 | 82.49 | 0.3975 | 946.0 | 711.4 | |
| 0.35 | 3.38 | 0.19 | 1.83 | 8.12 | 246.94 | -23.45 | 80.96 | 0.4007 | 1044.5 | 838.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 9.79 | 246.72 | -23.67 | 76.94 | 0.4078 | 840.0 | 698.8 | |
| 0.00 | 1.82 | 0.00 | 0.99 | 8.98 | 246.68 | -23.71 | 78.92 | 0.4064 | 817.0 | 714.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 9.58 | 246.61 | -23.78 | 77.50 | 0.4090 | 924.0 | 788.4 | |
| 0.00 | 2.08 | 0.00 | 1.13 | 9.25 | 246.63 | -23.76 | 78.29 | 0.4078 | 830.0 | 695.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 8.77 | 246.63 | -23.76 | 79.46 | 0.4067 | 891.0 | 710.5 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 11.57 | 246.14 | -24.25 | 73.00 | 0.4225 | 700.0 | 530.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.11 | 246.14 | -24.24 | 78.79 | 0.4151 | 541.0 | 490.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.35 | 246.06 | -24.33 | 78.26 | 0.4169 | 708.0 | 603.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 10.06 | 245.91 | -24.48 | 76.63 | 0.4212 | 770.0 | 587.4 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 9.58 | 245.91 | -24.48 | 77.76 | 0.4199 | 933.0 | 801.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 9.79 | 245.79 | -24.59 | 77.32 | 0.4222 | 869.0 | 741.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 9.64 | 245.71 | -24.68 | 77.71 | 0.4231 | 823.0 | 703.1 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 10.02 | 244.60 | -25.78 | 77.24 | 0.4410 | 712.0 | 461.1 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 9.87 | 244.62 | -25.77 | 77.57 | 0.4405 | 1012.0 | 820.5 | |
| 1.39 | 522.08 | 0.77 | 291.10 | 9.59 | 244.37 | -26.02 | 78.28 | 0.4436 | 1000.6 | 361.3 | |
| 6.94 | -55.00 | 3.86 | -55.00 | 10.86 | 243.89 | -26.50 | 75.66 | 0.4542 | 1155.4 | 999999 | |
| 1.48 | -55.00 | 0.82 | -55.00 | 11.03 | 243.70 | -26.69 | 75.36 | 0.4575 | 873.6 | 999999 | |
| 7.11 | -55.00 | 3.95 | -55.00 | 9.77 | 243.75 | -26.64 | 78.07 | 0.4535 | 1310.1 | 999999 | |
| 0.78 | -55.00 | 0.43 | -55.00 | 10.49 | 243.58 | -26.81 | 76.58 | 0.4578 | 1058.3 | 999999 | |
| 5.29 | -55.00 | 2.95 | -55.00 | 10.72 | 243.53 | -26.86 | 76.09 | 0.4593 | 1030.2 | 999999 | |
| 9.02 | -55.00 | 5.03 | -55.00 | 10.24 | 243.40 | -26.99 | 77.17 | 0.4599 | 1091.0 | 999999 | |
| 30.63 | -55.00 | 17.04 | -55.00 | 8.59 | 243.37 | -27.02 | 80.76 | 0.4570 | 1204.8 | 999999 | |
| 46.42 | -55.00 | 25.91 | -55.00 | 9.57 | 243.12 | -27.27 | 78.71 | 0.4626 | 1208.5 | 999999 | |
| 1.13 | -55.00 | 0.63 | -55.00 | 9.26 | 242.77 | -27.61 | 79.47 | 0.4673 | 586.8 | 999999 | |
| 0.00 | 1.39 | 0.00 | 0.78 | 6.14 | 241.80 | -28.58 | 86.21 | 0.4787 | 700.0 | 549.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
