SDO HMI 2011-10-26 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.73 | 33.64 | 4.43 | 19.26 | 15.17 | 241.74 | -28.65 | 67.84 | 0.5019 | 127.4 | 282.9 | |
|
previous
or next observation for the same group /

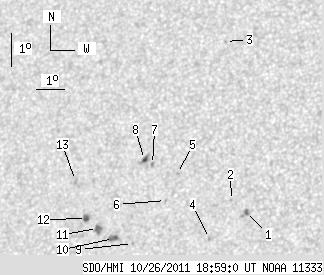

back to the solar disc SDO HMI 2011-10-26 18:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.00 | 4.16 | 1.11 | 2.31 | 15.05 | 245.43 | -24.96 | 65.79 | 0.4487 | -865.9 | -771.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 15.36 | 244.87 | -25.51 | 65.53 | 0.4582 | -602.0 | -494.8 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 20.20 | 243.90 | -26.48 | 57.01 | 0.5010 | -593.0 | -395.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 14.19 | 244.27 | -26.12 | 68.37 | 0.4611 | 802.0 | 679.0 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 16.11 | 242.90 | -27.49 | 65.40 | 0.4898 | -887.0 | -695.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 15.27 | 242.60 | -27.79 | 67.20 | 0.4898 | -600.0 | -355.4 | |
| 0.00 | 2.17 | 0.00 | 1.24 | 16.34 | 241.98 | -28.41 | 65.53 | 0.5036 | 499.0 | 382.0 | |
| 1.91 | 4.16 | 1.10 | 2.39 | 16.49 | 241.68 | -28.71 | 65.46 | 0.5085 | -844.4 | -645.6 | |
| 0.00 | 0.87 | 0.00 | 0.49 | 13.93 | 241.64 | -28.75 | 70.35 | 0.4978 | 804.0 | 656.4 | |
| 0.00 | 5.29 | 0.00 | 3.04 | 14.06 | 240.95 | -29.44 | 70.45 | 0.5080 | 1005.0 | 840.3 | |
| 0.00 | 6.33 | 0.00 | 3.66 | 14.33 | 240.34 | -30.05 | 70.22 | 0.5176 | 973.0 | 768.4 | |
| 3.82 | 3.99 | 2.22 | 2.32 | 14.62 | 239.91 | -30.48 | 69.89 | 0.5248 | 765.6 | 440.5 | |
| 0.00 | 1.56 | 0.00 | 0.92 | 15.75 | 239.33 | -31.06 | 68.12 | 0.5373 | 628.0 | 575.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
