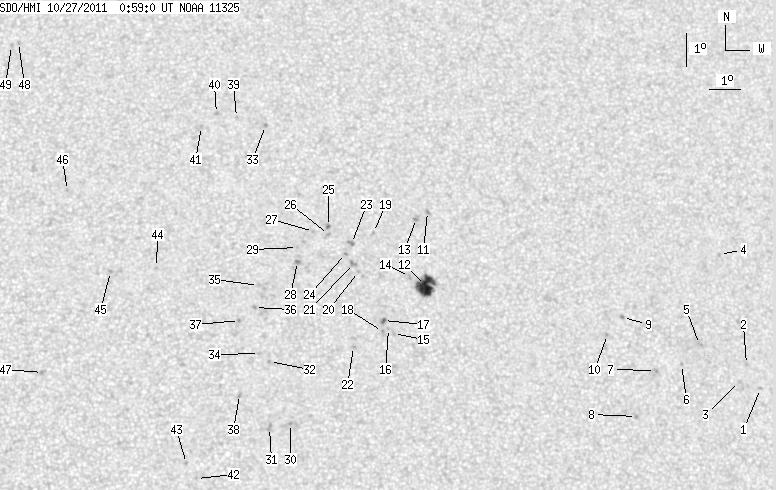

SDO HMI 2011-10-27 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.74 | 104.36 | 12.81 | 54.01 | 16.00 | 278.81 | 11.73 | 316.66 | 0.2859 | -122.3 | 25.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.71 | 12.72 | 290.74 | 23.66 | 290.03 | 0.4185 | -829.0 | -680.5 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 13.45 | 290.35 | 23.27 | 292.00 | 0.4162 | -756.0 | -649.1 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 12.95 | 290.06 | 22.99 | 291.04 | 0.4095 | -724.0 | -532.8 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 16.81 | 289.83 | 22.75 | 299.85 | 0.4286 | -757.0 | -567.1 | |
| 0.00 | 2.08 | 0.00 | 1.12 | 14.11 | 288.85 | 21.78 | 294.72 | 0.3978 | -826.0 | -723.4 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 13.52 | 288.20 | 21.12 | 293.89 | 0.3849 | -693.0 | -613.4 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 13.37 | 287.34 | 20.26 | 294.30 | 0.3712 | -739.0 | -707.2 | |
| 0.00 | 1.22 | 0.00 | 0.64 | 12.00 | 286.61 | 19.53 | 291.41 | 0.3528 | -827.0 | -667.1 | |
| 0.00 | 1.91 | 0.00 | 1.02 | 15.00 | 286.41 | 19.33 | 299.33 | 0.3684 | -917.0 | -732.4 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 14.50 | 285.87 | 18.79 | 298.71 | 0.3572 | -714.0 | -549.9 | |
| 0.00 | 2.08 | 0.00 | 1.09 | 18.37 | 280.38 | 13.30 | 317.08 | 0.3220 | -728.0 | -634.0 | |
| 24.13 | 29.34 | 12.50 | 15.20 | 16.11 | 280.15 | 13.07 | 312.10 | 0.2941 | -1061.4 | -734.1 | |
| 0.00 | 3.04 | 0.00 | 1.59 | 18.16 | 280.01 | 12.93 | 317.39 | 0.3154 | -996.0 | -804.1 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 16.39 | 279.66 | 12.58 | 313.88 | 0.2912 | -719.0 | -574.6 | |
| 0.00 | 2.26 | 0.00 | 1.16 | 14.68 | 279.05 | 11.97 | 310.50 | 0.2650 | -743.0 | -584.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 14.83 | 278.90 | 11.82 | 311.29 | 0.2648 | -852.0 | -568.1 | |
| 0.61 | 1.91 | 0.31 | 0.98 | 15.07 | 278.75 | 11.68 | 312.34 | 0.2656 | -1012.6 | -875.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.74 | 278.70 | 11.63 | 311.49 | 0.2614 | -1039.0 | -844.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 17.75 | 278.60 | 11.52 | 319.64 | 0.2951 | -791.0 | -594.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 16.57 | 278.05 | 10.97 | 318.13 | 0.2746 | -787.0 | -581.3 | |
| 0.00 | 3.73 | 0.00 | 1.92 | 16.82 | 277.91 | 10.83 | 319.12 | 0.2760 | -656.0 | -485.0 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 14.30 | 277.77 | 10.69 | 312.46 | 0.2449 | -900.0 | -697.3 | |
| 0.00 | 3.21 | 0.00 | 1.66 | 17.43 | 277.88 | 10.80 | 320.66 | 0.2833 | 930.0 | 775.8 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.13 | 277.67 | 10.59 | 320.48 | 0.2773 | 926.0 | 723.1 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 17.96 | 277.18 | 10.10 | 323.68 | 0.2829 | 1080.0 | 945.4 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 17.72 | 277.16 | 10.09 | 323.17 | 0.2796 | 1027.0 | 844.5 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 17.81 | 276.69 | 9.62 | 324.67 | 0.2762 | 802.0 | 651.1 | |
| 0.00 | 1.74 | 0.00 | 0.89 | 16.91 | 276.14 | 9.06 | 324.17 | 0.2586 | 1108.0 | 957.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 17.33 | 276.16 | 9.08 | 325.10 | 0.2646 | 858.0 | 682.9 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.01 | 275.72 | 8.65 | 310.26 | 0.1936 | 875.0 | 673.0 | |
| 0.00 | 3.47 | 0.00 | 1.75 | 11.90 | 275.08 | 8.00 | 311.97 | 0.1840 | 909.0 | 769.3 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 13.89 | 275.14 | 8.06 | 319.03 | 0.2086 | 835.0 | 633.2 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 21.10 | 275.34 | 8.26 | 334.37 | 0.3114 | 858.0 | 709.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 14.13 | 274.84 | 7.76 | 320.86 | 0.2084 | 822.0 | 634.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 16.19 | 274.88 | 7.81 | 326.39 | 0.2367 | 384.0 | 351.4 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 15.52 | 274.73 | 7.66 | 325.22 | 0.2261 | 937.0 | 718.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 15.14 | 274.25 | 7.17 | 325.90 | 0.2160 | 906.0 | 760.3 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 12.90 | 274.18 | 7.10 | 319.19 | 0.1853 | 931.0 | 749.7 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 21.35 | 274.42 | 7.34 | 337.24 | 0.3090 | 681.0 | 528.5 | |
| 0.00 | 1.48 | 0.00 | 0.77 | 21.49 | 273.78 | 6.70 | 339.19 | 0.3070 | 920.0 | 729.2 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 21.09 | 273.28 | 6.20 | 340.13 | 0.2979 | 801.0 | 666.7 | |
| 0.00 | 0.78 | 0.00 | 0.39 | 10.40 | 272.81 | 5.73 | 314.33 | 0.1379 | 721.0 | 620.7 | |
| 0.00 | 1.39 | 0.00 | 0.69 | 10.85 | 272.51 | 5.43 | 318.12 | 0.1400 | 994.0 | 832.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 16.77 | 271.71 | 4.64 | 339.37 | 0.2207 | 843.0 | 619.2 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 16.65 | 270.28 | 3.20 | 345.28 | 0.2114 | 891.0 | 711.4 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 19.13 | 268.97 | 1.89 | 352.78 | 0.2488 | 772.0 | 650.0 | |
| 0.00 | 2.60 | 0.00 | 1.31 | 13.60 | 268.15 | 1.07 | 353.15 | 0.1528 | 888.0 | 692.0 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 23.74 | 267.43 | 0.35 | 358.99 | 0.3241 | 715.0 | 606.9 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 23.64 | 267.20 | 0.13 | 359.64 | 0.3225 | 735.0 | 642.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
