SDO HMI 2011-10-27 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 18.58 | 0.39 | 10.39 | -21.13 | 257.42 | -9.66 | 160.31 | 0.4672 | 438.8 | -47.2 | |
|
previous
or next observation for the same group /

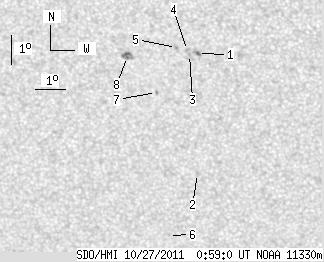

back to the solar disc SDO HMI 2011-10-27 00:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 3.21 | 0.39 | 1.78 | -20.49 | 258.61 | -8.46 | 162.15 | 0.4518 | 978.6 | 830.5 | |
| 0.00 | 1.13 | 0.00 | 0.65 | -24.53 | 258.36 | -8.72 | 164.31 | 0.5118 | 687.0 | 546.9 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -20.53 | 258.35 | -8.72 | 161.67 | 0.4536 | 906.0 | 695.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -20.40 | 258.30 | -8.78 | 161.46 | 0.4519 | 901.0 | 714.1 | |
| 0.00 | 1.39 | 0.00 | 0.77 | -20.31 | 257.95 | -9.13 | 160.71 | 0.4523 | 840.0 | 660.1 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -26.69 | 257.22 | -9.86 | 163.70 | 0.5471 | 725.0 | 583.1 | |
| 0.00 | 1.48 | 0.00 | 0.83 | -21.81 | 257.20 | -9.87 | 160.46 | 0.4779 | -882.0 | -681.5 | |
| 0.00 | 7.47 | 0.00 | 4.17 | -20.63 | 256.35 | -10.73 | 157.93 | 0.4657 | -856.0 | -821.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
