SDO HMI 2011-10-27 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.48 | 113.56 | 12.71 | 58.83 | 16.07 | 278.41 | 11.88 | 313.50 | 0.2875 | -52.1 | 94.4 | |
|
previous
or next observation for the same group /

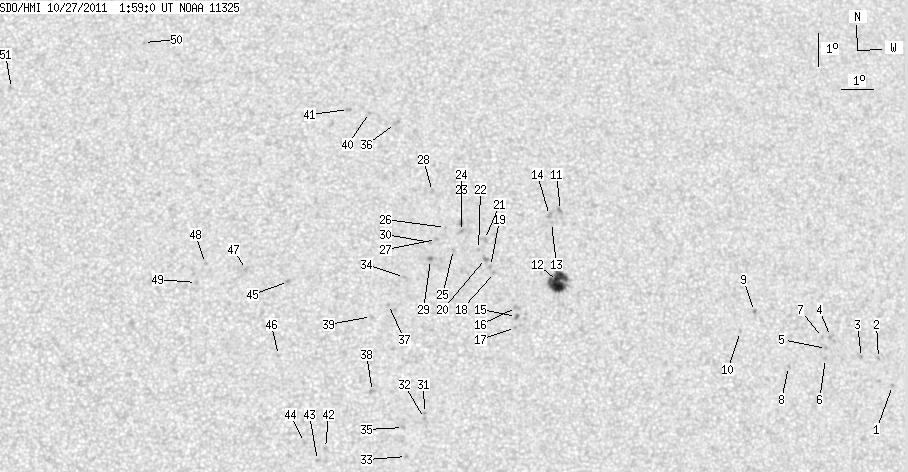

back to the solar disc SDO HMI 2011-10-27 01:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.48 | 0.00 | 0.81 | 12.69 | 290.76 | 24.23 | 289.62 | 0.4269 | -870.0 | -662.6 | |
| 0.00 | 1.22 | 0.00 | 0.66 | 13.52 | 290.37 | 23.85 | 291.74 | 0.4250 | -741.0 | -582.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | 13.57 | 289.81 | 23.28 | 292.26 | 0.4170 | -919.0 | -736.2 | |
| 0.00 | 2.08 | 0.00 | 1.13 | 14.23 | 288.85 | 22.32 | 294.56 | 0.4065 | -831.0 | -678.5 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 13.88 | 288.68 | 22.15 | 293.87 | 0.4020 | -800.0 | -678.3 | |
| 0.00 | 1.39 | 0.00 | 0.75 | 13.58 | 288.61 | 22.09 | 293.22 | 0.3994 | -903.0 | -768.1 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 14.21 | 288.58 | 22.05 | 294.74 | 0.4025 | -805.0 | -685.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 13.37 | 287.38 | 20.85 | 293.78 | 0.3800 | -779.0 | -661.0 | |
| 0.00 | 1.39 | 0.00 | 0.74 | 15.06 | 286.42 | 19.89 | 298.88 | 0.3769 | -948.0 | -812.1 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.47 | 285.91 | 19.38 | 298.00 | 0.3655 | -764.0 | -637.3 | |
| 0.00 | 2.78 | 0.00 | 1.46 | 18.29 | 280.40 | 13.87 | 315.75 | 0.3277 | -848.0 | -711.1 | |
| 24.48 | 31.34 | 12.71 | 16.28 | 16.12 | 280.14 | 13.61 | 311.03 | 0.3011 | -1077.0 | -541.4 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 17.92 | 280.08 | 13.55 | 315.57 | 0.3200 | -939.0 | -695.4 | |
| 0.00 | 2.52 | 0.00 | 1.32 | 18.14 | 280.03 | 13.51 | 316.16 | 0.3219 | -992.0 | -875.6 | |
| 0.00 | 2.43 | 0.00 | 1.25 | 15.09 | 278.77 | 12.25 | 311.09 | 0.2729 | -1063.0 | -893.8 | |
| 0.00 | 2.95 | 0.00 | 1.52 | 15.36 | 278.79 | 12.26 | 311.83 | 0.2760 | -809.0 | -629.6 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 14.76 | 278.72 | 12.19 | 310.24 | 0.2688 | -1018.0 | -803.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 16.43 | 278.16 | 11.63 | 316.18 | 0.2805 | -830.0 | -628.6 | |
| 0.00 | 1.48 | 0.00 | 0.76 | 16.62 | 278.04 | 11.51 | 316.93 | 0.2813 | -774.0 | -588.6 | |
| 0.00 | 2.78 | 0.00 | 1.43 | 16.86 | 277.90 | 11.37 | 317.89 | 0.2826 | -692.0 | -543.2 | |
| 0.00 | 3.73 | 0.00 | 1.93 | 17.44 | 277.90 | 11.37 | 319.28 | 0.2897 | 844.0 | 707.0 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 17.14 | 277.69 | 11.16 | 319.08 | 0.2837 | 888.0 | 678.6 | |
| 0.00 | 2.34 | 0.00 | 1.21 | 17.97 | 277.20 | 10.67 | 322.24 | 0.2890 | 1060.0 | 843.4 | |
| 0.00 | 2.17 | 0.00 | 1.12 | 17.70 | 277.19 | 10.66 | 321.66 | 0.2853 | 901.0 | 757.5 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 17.15 | 276.90 | 10.37 | 321.13 | 0.2754 | 852.0 | 632.6 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.83 | 276.68 | 10.16 | 323.26 | 0.2819 | 831.0 | 592.4 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 17.47 | 276.38 | 9.85 | 323.26 | 0.2740 | 824.0 | 624.6 | |
| 0.00 | 1.65 | 0.00 | 0.85 | 18.94 | 276.33 | 9.81 | 326.52 | 0.2933 | 706.0 | 627.5 | |
| 0.00 | 2.60 | 0.00 | 1.34 | 16.86 | 276.16 | 9.63 | 322.45 | 0.2638 | 1122.0 | 876.3 | |
| 0.00 | 1.13 | 0.00 | 0.58 | 17.38 | 276.18 | 9.66 | 323.59 | 0.2709 | 849.0 | 706.8 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.21 | 275.77 | 9.24 | 309.23 | 0.2035 | 877.0 | 651.8 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.06 | 275.76 | 9.23 | 308.66 | 0.2019 | 918.0 | 663.7 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 10.93 | 275.17 | 8.64 | 305.63 | 0.1824 | 990.0 | 711.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 16.32 | 275.31 | 8.78 | 323.61 | 0.2481 | 817.0 | 635.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 11.80 | 275.11 | 8.58 | 309.61 | 0.1904 | 940.0 | 724.1 | |
| 0.00 | 2.69 | 0.00 | 1.40 | 21.05 | 275.27 | 8.74 | 333.04 | 0.3143 | 834.0 | 653.4 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 15.51 | 274.78 | 8.25 | 323.21 | 0.2318 | 1017.0 | 739.5 | |
| 0.00 | 2.52 | 0.00 | 1.27 | 12.89 | 274.19 | 7.66 | 317.06 | 0.1916 | 754.0 | 657.7 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 15.15 | 274.23 | 7.70 | 324.07 | 0.2215 | 849.0 | 692.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 21.40 | 274.45 | 7.92 | 335.73 | 0.3137 | 872.0 | 530.1 | |
| 0.00 | 2.17 | 0.00 | 1.13 | 21.50 | 273.78 | 7.25 | 337.69 | 0.3108 | 833.0 | 623.2 | |
| 0.00 | 2.08 | 0.00 | 1.04 | 11.19 | 272.70 | 6.17 | 316.19 | 0.1531 | 865.0 | 587.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 10.84 | 272.45 | 5.92 | 315.67 | 0.1456 | 992.0 | 781.6 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 11.38 | 272.06 | 5.53 | 320.09 | 0.1481 | 772.0 | 508.0 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 16.24 | 271.68 | 5.15 | 336.33 | 0.2158 | 862.0 | 634.0 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 14.00 | 271.32 | 4.79 | 332.89 | 0.1786 | 798.0 | 519.4 | |
| 0.00 | 2.34 | 0.00 | 1.19 | 16.61 | 270.38 | 3.85 | 342.40 | 0.2139 | 896.0 | 675.8 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 16.80 | 269.11 | 2.58 | 348.19 | 0.2115 | 783.0 | 596.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 16.22 | 268.82 | 2.29 | 348.93 | 0.2009 | 863.0 | 680.2 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 23.64 | 267.21 | 0.68 | 358.06 | 0.3227 | 691.0 | 589.9 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 22.19 | 262.95 | -3.58 | 11.00 | 0.3041 | 647.0 | 420.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
