group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11324	5.47	97.43	3.42	61.02	12.34	302.58	37.15	284.21	0.6089	113.1	104.5

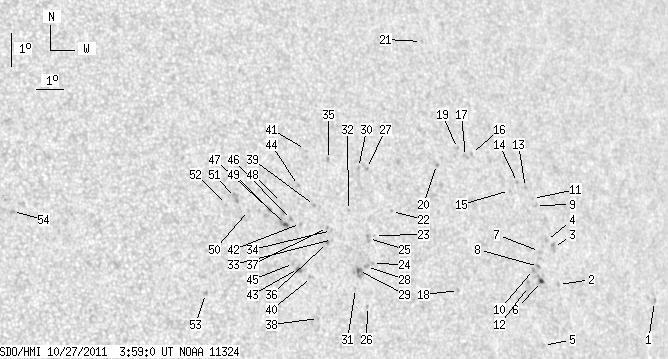

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-10-27 03:59:00 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	2.26	0.00	1.65	9.86	312.87	47.44	278.91	0.7369	-625.0	-574.0
2	0.00	1.65	0.00	1.12	10.62	308.85	43.42	280.29	0.6890	-575.0	-379.2
3	0.00	3.65	0.00	2.49	11.73	308.85	43.42	281.90	0.6901	-697.0	-592.5
4	0.00	1.13	0.00	0.77	11.96	308.60	43.17	282.27	0.6873	-685.0	-578.2
5	0.00	1.56	0.00	1.05	8.83	307.94	42.51	277.75	0.6762	-495.0	-339.0
6	1.82	4.34	1.23	2.92	10.74	308.17	42.74	280.55	0.6805	-705.3	-692.9
7	0.00	0.78	0.00	0.53	11.64	308.25	42.82	281.86	0.6825	-518.0	-475.3
8	0.00	1.13	0.00	0.76	11.20	308.12	42.69	281.22	0.6805	-869.0	-772.2
9	0.00	1.48	0.00	1.00	13.03	308.36	42.93	283.86	0.6859	-687.0	-484.9
10	0.00	1.65	0.00	1.11	11.12	307.90	42.47	281.14	0.6776	-818.0	-692.5
11	0.00	0.87	0.00	0.59	13.24	308.29	42.85	284.19	0.6852	-667.0	-556.7
12	0.00	3.91	0.00	2.61	10.63	307.61	42.18	280.44	0.6734	-337.0	-353.8
13	0.00	0.87	0.00	0.59	13.59	308.07	42.64	284.73	0.6831	-711.0	-535.4
14	0.00	1.39	0.00	0.94	13.76	307.77	42.34	285.03	0.6797	-623.0	-528.3
15	0.00	0.87	0.00	0.58	13.54	307.39	41.96	284.78	0.6746	-572.0	-532.2
16	0.00	0.96	0.00	0.63	14.73	306.10	40.67	286.84	0.6608	-578.0	-502.7
17	0.00	1.56	0.00	1.02	14.66	305.84	40.41	286.79	0.6573	-655.0	-607.4
18	0.00	1.30	0.00	0.83	10.66	304.80	39.37	280.85	0.6371	551.0	446.6
19	0.00	1.22	0.00	0.79	14.91	305.57	40.14	287.25	0.6546	-805.0	-738.1
20	0.00	1.56	0.00	1.01	14.48	304.63	39.20	286.82	0.6416	-634.0	-575.0
21	0.00	0.87	0.00	0.57	18.23	304.93	39.50	292.40	0.6558	-654.0	-594.7
22	0.00	0.96	0.00	0.60	13.16	302.61	37.18	285.26	0.6123	-589.0	-544.1
23	0.00	0.52	0.00	0.32	12.47	301.84	36.41	284.33	0.6005	461.0	291.2
24	0.00	1.04	0.00	0.64	11.64	301.64	36.21	282.99	0.5960	497.0	402.1
25	0.00	3.73	0.00	2.30	12.39	301.60	36.17	284.26	0.5971	501.0	435.9
26	0.00	1.04	0.00	0.64	10.36	301.27	35.84	280.92	0.5888	661.0	498.6
27	0.00	1.30	0.00	0.81	14.50	301.90	36.47	287.63	0.6061	702.0	541.0
28	0.00	1.82	0.00	1.12	11.56	301.40	35.97	282.91	0.5926	788.0	560.0
29	1.48	7.64	0.90	4.67	11.45	301.08	35.65	282.81	0.5881	832.7	631.0
30	0.00	0.78	0.00	0.48	14.54	301.60	36.17	287.80	0.6023	781.0	643.1
31	0.00	1.13	0.00	0.69	10.92	300.90	35.46	281.94	0.5845	698.0	522.8
32	0.00	0.69	0.00	0.43	13.27	300.99	35.56	285.88	0.5908	535.0	395.6
33	0.00	0.69	0.00	0.42	12.43	300.26	34.83	284.67	0.5787	637.0	471.1
34	0.00	1.13	0.00	0.68	12.70	300.26	34.83	285.13	0.5794	634.0	517.1
35	0.00	1.56	0.00	0.96	14.84	300.52	35.09	288.66	0.5887	671.0	549.7
36	0.00	1.82	0.00	1.10	12.34	300.06	34.63	284.58	0.5758	719.0	561.1
37	0.00	1.30	0.00	0.79	12.79	300.13	34.70	285.33	0.5778	717.0	597.5
38	0.00	0.96	0.00	0.57	10.09	299.42	33.99	280.79	0.5625	612.0	487.9
39	0.00	1.04	0.00	0.63	13.48	299.75	34.32	286.62	0.5745	759.0	689.3
40	0.00	1.74	0.00	1.04	11.33	299.32	33.89	283.00	0.5633	721.0	574.1
41	0.00	0.52	0.00	0.32	15.18	299.72	34.29	289.53	0.5791	364.0	459.8
42	0.00	1.39	0.00	0.83	12.96	299.15	33.72	285.92	0.5648	639.0	558.7
43	0.00	3.73	0.00	2.22	11.62	298.89	33.46	283.62	0.5578	1047.0	817.8
44	0.00	1.22	0.00	0.73	14.11	299.27	33.84	287.87	0.5696	704.0	583.6
45	0.00	1.48	0.00	0.88	11.77	298.72	33.29	283.95	0.5559	772.0	532.6
46	0.00	1.91	0.00	1.14	13.10	298.84	33.41	286.25	0.5609	735.0	558.3
47	2.17	7.21	1.29	4.29	12.96	298.60	33.17	286.09	0.5571	855.9	770.6
48	0.00	0.96	0.00	0.57	13.62	298.56	33.13	287.28	0.5584	674.0	451.8
49	0.00	1.82	0.00	1.08	13.43	298.09	32.66	287.11	0.5514	822.0	708.1
50	0.00	1.39	0.00	0.82	13.44	297.33	31.90	287.40	0.5407	723.0	546.5
51	0.00	4.78	0.00	2.80	13.85	296.92	31.49	288.31	0.5363	800.0	715.9
52	0.00	0.69	0.00	0.41	13.65	296.57	31.14	288.09	0.5307	726.0	587.2
53	0.00	2.17	0.00	1.25	11.01	295.48	30.05	283.48	0.5075	-830.0	-658.6
54	0.00	2.26	0.00	1.23	13.72	289.17	23.74	292.31	0.4245	-858.0	-727.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
