SDO HMI 2011-10-27 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.08 | 33.70 | 2.24 | 18.37 | 14.67 | 242.42 | -23.01 | 64.88 | 0.4191 | 66.3 | 139.0 | |
|
previous
or next observation for the same group /

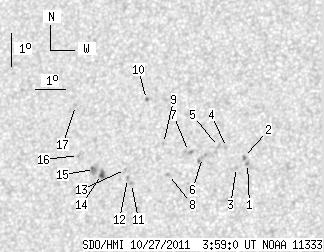

back to the solar disc SDO HMI 2011-10-27 03:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.97 | 14.60 | 245.54 | -19.89 | 62.22 | 0.3737 | -1151.0 | -911.7 | |
| 0.00 | 1.48 | 0.00 | 0.79 | 14.78 | 245.39 | -20.04 | 61.94 | 0.3771 | -925.0 | -794.6 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.47 | 245.19 | -20.24 | 62.90 | 0.3779 | -784.0 | -578.6 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 15.06 | 244.81 | -20.63 | 61.88 | 0.3874 | -409.0 | -476.5 | |
| 0.00 | 1.65 | 0.00 | 0.89 | 15.08 | 244.54 | -20.89 | 62.10 | 0.3913 | -490.0 | -338.4 | |
| 0.00 | 3.82 | 0.00 | 2.06 | 14.74 | 244.05 | -21.39 | 63.40 | 0.3961 | -753.0 | -639.6 | |
| 0.00 | 2.69 | 0.00 | 1.46 | 14.90 | 243.56 | -21.87 | 63.47 | 0.4040 | 608.0 | 616.3 | |
| 0.00 | 1.48 | 0.00 | 0.80 | 14.19 | 242.97 | -22.46 | 65.63 | 0.4083 | 901.0 | 661.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 15.12 | 242.71 | -22.73 | 63.75 | 0.4176 | -855.0 | -612.4 | |
| 1.39 | 1.39 | 0.76 | 0.76 | 16.43 | 241.97 | -23.46 | 61.56 | 0.4360 | -714.2 | 0.0 | |
| 0.00 | 1.56 | 0.00 | 0.85 | 13.88 | 241.77 | -23.66 | 67.29 | 0.4241 | 940.0 | 722.0 | |
| 0.00 | 1.39 | 0.00 | 0.76 | 14.02 | 241.62 | -23.81 | 67.07 | 0.4271 | 909.0 | 736.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 14.29 | 241.52 | -23.91 | 66.55 | 0.4299 | -478.0 | -386.9 | |
| 2.69 | 3.39 | 1.48 | 1.87 | 14.11 | 240.73 | -24.70 | 67.51 | 0.4404 | 988.9 | 891.2 | |
| 0.00 | 5.82 | 0.00 | 3.21 | 14.26 | 240.48 | -24.95 | 67.38 | 0.4448 | 1063.0 | 754.8 | |
| 0.00 | 1.39 | 0.00 | 0.77 | 14.66 | 239.89 | -25.55 | 66.93 | 0.4553 | 860.0 | 646.9 | |
| 0.00 | 1.82 | 0.00 | 1.02 | 16.17 | 239.58 | -25.85 | 64.06 | 0.4676 | 786.0 | 609.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
