SDO HMI 2011-10-27 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 264.53 | 1398.11 | 136.12 | 717.77 | 7.65 | 250.59 | -13.74 | 78.55 | 0.2408 | -242.3 | -125.9 | |
|
previous
or next observation for the same group /

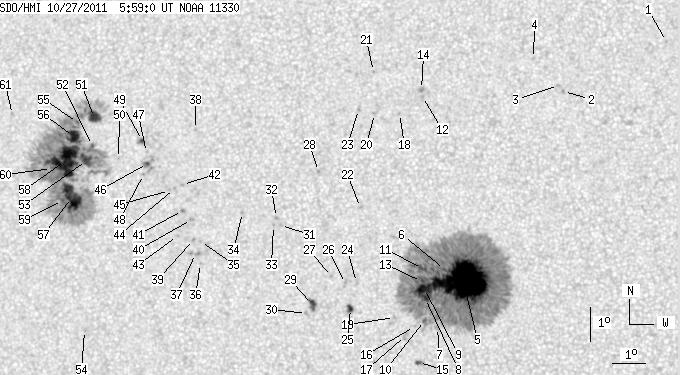

back to the solar disc SDO HMI 2011-10-27 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.87 | 0.00 | 0.44 | 13.53 | 261.79 | -2.55 | 16.02 | 0.1573 | -957.0 | -800.8 | |
| 0.00 | 1.56 | 0.00 | 0.78 | 12.01 | 258.66 | -5.68 | 37.86 | 0.1584 | -813.0 | -664.6 | |
| 0.00 | 1.13 | 0.00 | 0.57 | 12.19 | 258.50 | -5.83 | 37.91 | 0.1624 | -922.0 | -701.5 | |
| 0.00 | 1.22 | 0.00 | 0.61 | 12.99 | 257.72 | -6.62 | 38.43 | 0.1816 | -824.0 | -570.5 | |
| 118.88 | 796.64 | 59.57 | 399.51 | 6.30 | 255.73 | -8.61 | 80.21 | 0.1516 | -1635.9 | -483.6 | |
| 0.78 | -5.00 | 0.39 | -5.00 | 6.65 | 255.15 | -9.19 | 78.62 | 0.1625 | -857.6 | 999999 | |
| 0.00 | 3.21 | 0.00 | 1.61 | 4.92 | 254.96 | -9.37 | 89.38 | 0.1630 | -46.0 | -69.1 | |
| 3.13 | -5.00 | 1.57 | -5.00 | 5.78 | 254.59 | -9.75 | 84.29 | 0.1701 | -1078.2 | 999999 | |
| 9.47 | -5.00 | 4.76 | -5.00 | 6.07 | 254.55 | -9.79 | 82.57 | 0.1712 | -1207.2 | 999999 | |
| 1.48 | -5.00 | 0.74 | -5.00 | 5.12 | 254.57 | -9.77 | 88.17 | 0.1699 | -617.3 | 999999 | |
| 4.17 | -5.00 | 2.10 | -5.00 | 6.67 | 254.48 | -9.86 | 79.20 | 0.1739 | -801.8 | 999999 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.81 | 254.33 | -10.01 | 54.38 | 0.2102 | -967.0 | -685.5 | |
| 0.96 | -5.00 | 0.48 | -5.00 | 6.28 | 254.45 | -9.88 | 81.44 | 0.1733 | -866.9 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.23 | 12.02 | 254.29 | -10.04 | 53.66 | 0.2127 | -885.0 | -785.9 | |
| 1.74 | 3.47 | 0.87 | 1.75 | 3.87 | 254.40 | -9.93 | 95.45 | 0.1737 | 996.0 | 533.3 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 4.94 | 254.27 | -10.07 | 89.25 | 0.1750 | -814.0 | -531.9 | |
| 0.00 | 3.82 | 0.00 | 1.92 | 4.66 | 254.00 | -10.34 | 90.77 | 0.1797 | -727.0 | -666.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 11.29 | 253.64 | -10.70 | 58.16 | 0.2152 | -738.0 | -573.8 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 5.20 | 253.65 | -10.68 | 87.84 | 0.1856 | -735.0 | -591.1 | |
| 0.00 | 1.39 | 0.00 | 0.71 | 11.27 | 252.87 | -11.47 | 59.91 | 0.2264 | -906.0 | -629.3 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 12.53 | 252.78 | -11.56 | 55.41 | 0.2386 | -895.0 | -719.8 | |
| 0.00 | 1.48 | 0.00 | 0.75 | 8.46 | 252.53 | -11.80 | 72.41 | 0.2132 | 856.0 | 620.3 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 11.39 | 252.36 | -11.97 | 60.49 | 0.2347 | -920.0 | -740.4 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 6.22 | 252.47 | -11.86 | 82.98 | 0.2069 | -793.0 | -735.1 | |
| 3.47 | 4.43 | 1.76 | 2.24 | 5.44 | 252.31 | -12.03 | 86.79 | 0.2088 | -1003.9 | -810.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 6.18 | 252.14 | -12.20 | 83.31 | 0.2125 | -787.0 | -691.6 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 6.38 | 251.70 | -12.63 | 82.59 | 0.2202 | -748.0 | -509.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 9.51 | 251.20 | -13.14 | 69.71 | 0.2401 | -808.0 | -606.9 | |
| 5.56 | 6.77 | 2.83 | 3.45 | 5.54 | 251.14 | -13.20 | 86.55 | 0.2287 | -1020.0 | -790.9 | |
| 0.00 | 2.00 | 0.00 | 1.02 | 5.27 | 250.96 | -13.38 | 87.75 | 0.2316 | -784.0 | -582.7 | |
| 0.00 | 1.22 | 0.00 | 0.62 | 7.87 | 250.08 | -14.25 | 77.34 | 0.2511 | -937.0 | -714.0 | |
| 0.00 | 1.65 | 0.00 | 0.84 | 8.11 | 249.95 | -14.39 | 76.52 | 0.2541 | -1000.0 | -772.2 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 7.87 | 249.86 | -14.47 | 77.52 | 0.2547 | -738.0 | -600.8 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 8.24 | 248.89 | -15.45 | 76.86 | 0.2720 | -689.0 | -505.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | 7.34 | 247.61 | -16.73 | 80.75 | 0.2906 | 898.0 | 713.2 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 6.68 | 247.63 | -16.71 | 83.00 | 0.2889 | 743.0 | 568.5 | |
| 0.00 | 5.30 | 0.00 | 2.74 | 6.98 | 247.46 | -16.87 | 82.05 | 0.2922 | 763.0 | 741.4 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 10.68 | 247.29 | -17.05 | 70.03 | 0.3079 | 925.0 | 700.6 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 7.39 | 247.38 | -16.95 | 80.67 | 0.2943 | 1001.0 | 766.7 | |
| 0.00 | 2.08 | 0.00 | 1.08 | 7.99 | 247.30 | -17.04 | 78.71 | 0.2972 | 926.0 | 770.2 | |
| 0.00 | 1.39 | 0.00 | 0.72 | 8.25 | 247.00 | -17.33 | 78.01 | 0.3028 | 1173.0 | 987.9 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 9.03 | 246.96 | -17.37 | 75.53 | 0.3059 | 1014.0 | 824.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 7.50 | 246.88 | -17.46 | 80.53 | 0.3029 | 856.0 | 698.8 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 8.90 | 246.72 | -17.62 | 76.09 | 0.3094 | 868.0 | 655.9 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 8.84 | 246.56 | -17.77 | 76.40 | 0.3117 | 705.0 | 634.2 | |
| 1.48 | 9.29 | 0.77 | 4.86 | 9.62 | 245.82 | -18.52 | 74.46 | 0.3264 | 1011.1 | 858.2 | |
| 0.00 | 0.87 | 0.00 | 0.46 | 9.95 | 245.77 | -18.57 | 73.52 | 0.3285 | 683.0 | 588.1 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 9.29 | 245.71 | -18.62 | 75.53 | 0.3269 | 829.0 | 604.0 | |
| 1.56 | 4.17 | 0.82 | 2.19 | 10.31 | 245.62 | -18.72 | 72.59 | 0.3323 | 1002.3 | 754.3 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 9.75 | 244.89 | -19.45 | 74.72 | 0.3417 | -537.0 | -412.2 | |
| 11.03 | 513.90 | 5.85 | 273.37 | 10.95 | 244.03 | -20.30 | 71.96 | 0.3599 | 1134.9 | 395.4 | |
| 0.87 | -51.00 | 0.46 | -51.00 | 10.11 | 244.03 | -20.31 | 74.24 | 0.3566 | 883.2 | 999999 | |
| 9.90 | -51.00 | 5.25 | -51.00 | 9.66 | 243.86 | -20.47 | 75.59 | 0.3576 | 1245.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 4.59 | 244.03 | -20.30 | 89.97 | 0.3474 | 675.0 | 516.1 | |
| 1.13 | -51.00 | 0.60 | -51.00 | 10.79 | 243.49 | -20.84 | 72.77 | 0.3675 | 967.5 | 999999 | |
| 13.20 | -51.00 | 7.02 | -51.00 | 10.36 | 243.39 | -20.94 | 73.96 | 0.3674 | 1053.9 | 999999 | |
| 27.35 | -51.00 | 14.52 | -51.00 | 8.54 | 243.45 | -20.89 | 78.87 | 0.3610 | 1278.1 | 999999 | |
| 46.63 | -51.00 | 24.83 | -51.00 | 9.64 | 243.18 | -21.15 | 76.01 | 0.3682 | 1251.3 | 999999 | |
| 1.22 | -51.00 | 0.65 | -51.00 | 8.44 | 243.16 | -21.18 | 79.26 | 0.3653 | 734.1 | 999999 | |
| 0.52 | -51.00 | 0.28 | -51.00 | 9.39 | 242.75 | -21.59 | 76.91 | 0.3744 | 738.5 | 999999 | |
| 0.00 | 1.74 | 0.00 | 0.94 | 10.96 | 241.35 | -22.98 | 73.64 | 0.4012 | 616.0 | 423.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
