SDO HMI 2011-10-27 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.91 | 0.00 | 6.56 | -20.57 | 257.74 | -6.60 | 165.96 | 0.4446 | 78.0 | 160.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 05:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

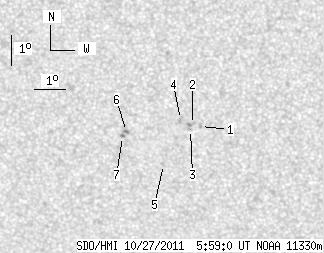

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.74 | 0.00 | 0.96 | -20.44 | 258.69 | -5.64 | 167.84 | 0.4390 | 825.0 | 654.5 | |
| 0.00 | 2.26 | 0.00 | 1.24 | -20.38 | 258.44 | -5.89 | 167.27 | 0.4389 | 802.0 | 754.6 | |
| 0.00 | 1.48 | 0.00 | 0.81 | -20.54 | 258.37 | -5.96 | 167.22 | 0.4416 | 597.0 | 501.0 | |
| 0.00 | 2.34 | 0.00 | 1.29 | -20.22 | 258.06 | -6.27 | 166.40 | 0.4378 | 897.0 | 662.3 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -21.71 | 257.45 | -6.88 | 166.01 | 0.4627 | -656.0 | -511.2 | |
| 0.00 | 1.65 | 0.00 | 0.91 | -20.63 | 256.31 | -8.02 | 163.10 | 0.4512 | -1132.0 | -992.3 | |
| 0.00 | 1.48 | 0.00 | 0.82 | -20.80 | 256.18 | -8.16 | 162.95 | 0.4543 | -787.0 | -718.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
