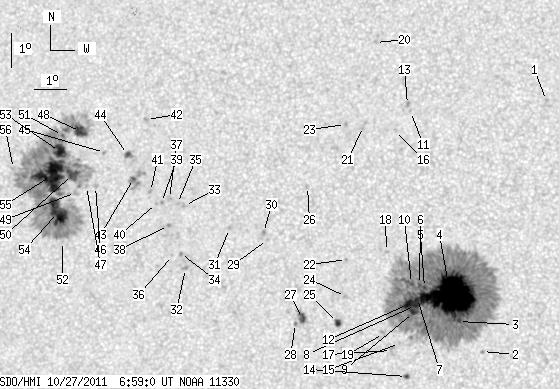

SDO HMI 2011-10-27 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 259.28 | 1368.76 | 133.09 | 701.15 | 7.65 | 250.62 | -13.17 | 78.01 | 0.2313 | -204.6 | -131.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.39 | 0.00 | 0.70 | 12.16 | 258.54 | -5.25 | 35.14 | 0.1562 | -990.0 | -747.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | 4.64 | 256.71 | -7.07 | 91.57 | 0.1234 | 749.0 | 570.6 | |
| 1.56 | 780.20 | 0.78 | 390.71 | 5.53 | 255.98 | -7.81 | 84.83 | 0.1364 | -988.2 | -493.7 | |
| 118.09 | -3.00 | 59.09 | -3.00 | 6.30 | 255.73 | -8.06 | 79.53 | 0.1424 | -1601.1 | 999999 | |
| 1.65 | -3.00 | 0.83 | -3.00 | 6.53 | 254.94 | -8.85 | 78.93 | 0.1565 | -812.3 | 999999 | |
| 1.48 | -3.00 | 0.74 | -3.00 | 6.62 | 254.78 | -9.01 | 78.56 | 0.1594 | -912.0 | 999999 | |
| 1.82 | -3.00 | 0.91 | -3.00 | 6.20 | 254.73 | -9.06 | 81.22 | 0.1591 | -1185.2 | 999999 | |
| 1.30 | -3.00 | 0.65 | -3.00 | 5.99 | 254.67 | -9.12 | 82.57 | 0.1597 | -1191.9 | 999999 | |
| 2.08 | -3.00 | 1.05 | -3.00 | 5.78 | 254.61 | -9.17 | 83.91 | 0.1603 | -1144.0 | 999999 | |
| 2.34 | -3.00 | 1.18 | -3.00 | 6.64 | 254.54 | -9.25 | 78.67 | 0.1636 | -800.9 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 11.78 | 254.37 | -9.42 | 52.84 | 0.2019 | -833.0 | -710.5 | |
| 4.95 | -3.00 | 2.48 | -3.00 | 6.02 | 254.43 | -9.36 | 82.58 | 0.1639 | -1206.8 | 999999 | |
| 0.00 | 2.17 | 0.00 | 1.10 | 11.99 | 254.27 | -9.52 | 52.29 | 0.2054 | -945.0 | -800.0 | |
| 2.00 | 2.34 | 1.00 | 1.18 | 3.87 | 254.43 | -9.36 | 95.76 | 0.1639 | 938.4 | 717.5 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 4.85 | 254.20 | -9.58 | 89.73 | 0.1667 | -661.0 | -519.0 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 11.21 | 253.93 | -9.86 | 56.42 | 0.2026 | -865.0 | -650.5 | |
| 0.00 | 3.04 | 0.00 | 1.53 | 4.64 | 253.96 | -9.82 | 90.96 | 0.1709 | -659.0 | -612.1 | |
| 0.00 | 1.39 | 0.00 | 0.70 | 7.59 | 253.76 | -10.03 | 74.27 | 0.1802 | -785.0 | -649.3 | |
| 0.00 | 3.13 | 0.00 | 1.57 | 5.14 | 253.71 | -10.07 | 88.03 | 0.1751 | -693.0 | -536.8 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 13.84 | 253.20 | -10.59 | 48.60 | 0.2389 | -673.0 | -633.0 | |
| 0.00 | 3.13 | 0.00 | 1.59 | 11.31 | 252.94 | -10.85 | 58.39 | 0.2178 | -796.0 | -646.1 | |
| 0.00 | 0.87 | 0.00 | 0.44 | 7.33 | 252.54 | -11.25 | 77.06 | 0.1994 | 851.0 | 590.2 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 11.36 | 252.38 | -11.41 | 59.42 | 0.2264 | -965.0 | -790.0 | |
| 0.00 | 2.08 | 0.00 | 1.05 | 6.23 | 252.54 | -11.25 | 82.59 | 0.1965 | -911.0 | -676.2 | |
| 3.65 | 4.25 | 1.84 | 2.15 | 5.45 | 252.31 | -11.48 | 86.62 | 0.1994 | -1013.0 | -759.1 | |
| 0.00 | 1.74 | 0.00 | 0.88 | 9.49 | 251.27 | -12.52 | 68.91 | 0.2301 | -735.0 | -564.0 | |
| 5.12 | 9.29 | 2.60 | 4.71 | 5.55 | 251.23 | -12.55 | 86.35 | 0.2178 | -1066.0 | -609.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | 5.40 | 251.02 | -12.77 | 87.09 | 0.2213 | -854.0 | -715.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | 7.88 | 250.09 | -13.70 | 76.83 | 0.2420 | -1009.0 | -713.4 | |
| 0.00 | 2.17 | 0.00 | 1.11 | 8.09 | 249.96 | -13.83 | 76.11 | 0.2449 | -933.0 | -721.3 | |
| 0.00 | 1.56 | 0.00 | 0.80 | 8.19 | 248.90 | -14.89 | 76.60 | 0.2626 | -643.0 | -579.2 | |
| 0.00 | 2.87 | 0.00 | 1.48 | 6.96 | 247.57 | -16.22 | 81.83 | 0.2813 | 939.0 | 799.2 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 8.84 | 247.47 | -16.32 | 75.36 | 0.2883 | 876.0 | 744.0 | |
| 0.00 | 1.56 | 0.00 | 0.81 | 7.41 | 247.40 | -16.39 | 80.35 | 0.2851 | 930.0 | 743.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 8.89 | 247.24 | -16.55 | 75.34 | 0.2921 | 886.0 | 716.1 | |
| 0.00 | 0.87 | 0.00 | 0.45 | 7.34 | 247.15 | -16.64 | 80.69 | 0.2890 | 691.0 | 533.4 | |
| 0.00 | 2.69 | 0.00 | 1.40 | 9.04 | 246.98 | -16.81 | 75.06 | 0.2968 | 977.0 | 716.0 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 8.23 | 246.99 | -16.80 | 77.74 | 0.2940 | 1143.0 | 934.3 | |
| 0.00 | 1.22 | 0.00 | 0.63 | 8.91 | 246.74 | -17.05 | 75.65 | 0.3004 | 917.0 | 756.1 | |
| 0.00 | 1.13 | 0.00 | 0.59 | 8.88 | 246.58 | -17.21 | 75.87 | 0.3028 | 840.0 | 647.7 | |
| 0.00 | 1.74 | 0.00 | 0.90 | 9.23 | 246.37 | -17.41 | 74.88 | 0.3074 | 1009.0 | 792.4 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 11.38 | 246.12 | -17.67 | 68.49 | 0.3212 | 876.0 | 697.9 | |
| 1.56 | 15.46 | 0.82 | 8.07 | 9.61 | 245.82 | -17.97 | 74.11 | 0.3177 | 1025.3 | 824.4 | |
| 2.87 | 4.78 | 1.50 | 2.50 | 10.32 | 245.58 | -18.21 | 72.14 | 0.3244 | 968.5 | 842.0 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 10.36 | 244.85 | -18.94 | 72.59 | 0.3362 | 881.0 | 727.3 | |
| 0.00 | 2.34 | 0.00 | 1.23 | 9.34 | 244.62 | -19.17 | 75.73 | 0.3358 | 486.0 | 447.7 | |
| 0.00 | 1.74 | 0.00 | 0.91 | 9.33 | 244.33 | -19.46 | 75.92 | 0.3404 | 823.0 | 573.8 | |
| 9.90 | 488.87 | 5.23 | 259.16 | 10.97 | 244.03 | -19.76 | 71.50 | 0.3515 | 1139.3 | 390.7 | |
| 0.00 | 2.95 | 0.00 | 1.56 | 9.14 | 243.99 | -19.80 | 76.66 | 0.3452 | 823.0 | 716.5 | |
| 10.16 | -48.00 | 5.37 | -48.00 | 9.67 | 243.86 | -19.93 | 75.22 | 0.3490 | 1237.0 | 999999 | |
| 1.22 | -48.00 | 0.64 | -48.00 | 10.83 | 243.46 | -20.33 | 72.29 | 0.3597 | 993.2 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.60 | 7.66 | 243.65 | -20.14 | 81.03 | 0.3469 | 34.0 | 108.3 | |
| 13.89 | -48.00 | 7.37 | -48.00 | 10.35 | 243.40 | -20.39 | 73.64 | 0.3588 | 1059.1 | 999999 | |
| 27.44 | -48.00 | 14.51 | -48.00 | 8.53 | 243.45 | -20.34 | 78.66 | 0.3522 | 1262.5 | 999999 | |
| 46.20 | -48.00 | 24.50 | -48.00 | 9.62 | 243.19 | -20.60 | 75.74 | 0.3595 | 1242.0 | 999999 | |
| 0.00 | 2.43 | 0.00 | 1.30 | 9.80 | 241.94 | -21.85 | 75.94 | 0.3797 | -45.0 | -22.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
