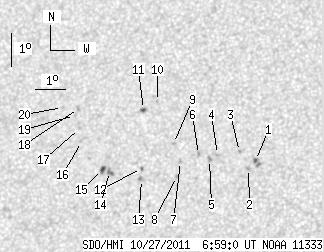

SDO HMI 2011-10-27 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.43 | 34.49 | 3.48 | 18.62 | 14.82 | 242.30 | -21.49 | 63.15 | 0.3983 | 240.4 | 151.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 06:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 3.56 | 0.69 | 1.88 | 14.65 | 245.46 | -18.33 | 60.24 | 0.3520 | -584.7 | -736.5 | |
| 0.00 | 1.74 | 0.00 | 0.92 | 14.40 | 245.25 | -18.54 | 61.13 | 0.3532 | -846.0 | -576.8 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 14.91 | 244.92 | -18.87 | 60.25 | 0.3616 | -987.0 | -726.4 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 14.80 | 244.21 | -19.58 | 61.34 | 0.3709 | -696.0 | -536.4 | |
| 0.00 | 2.69 | 0.00 | 1.44 | 14.64 | 243.96 | -19.83 | 62.00 | 0.3733 | -922.0 | -693.4 | |
| 0.00 | 1.65 | 0.00 | 0.88 | 14.78 | 243.59 | -20.20 | 62.06 | 0.3796 | 888.0 | 602.7 | |
| 0.00 | 1.13 | 0.00 | 0.61 | 14.55 | 243.02 | -20.77 | 63.19 | 0.3863 | 971.0 | 751.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 14.10 | 242.93 | -20.86 | 64.38 | 0.3847 | 933.0 | 677.9 | |
| 0.00 | 1.22 | 0.00 | 0.65 | 15.09 | 242.73 | -21.06 | 62.21 | 0.3939 | -791.0 | -645.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 16.34 | 242.06 | -21.73 | 60.06 | 0.4118 | -711.0 | -588.8 | |
| 1.74 | 1.91 | 0.95 | 1.04 | 16.09 | 241.62 | -22.17 | 61.06 | 0.4161 | 881.5 | 892.0 | |
| 1.39 | 1.56 | 0.75 | 0.85 | 14.30 | 241.75 | -22.04 | 64.96 | 0.4030 | -341.8 | -354.5 | |
| 0.00 | 2.43 | 0.00 | 1.31 | 13.97 | 241.79 | -22.00 | 65.71 | 0.4006 | 978.0 | 815.0 | |
| 0.00 | 3.13 | 0.00 | 1.70 | 14.18 | 240.70 | -23.09 | 66.13 | 0.4176 | 1113.0 | 941.4 | |
| 2.00 | 2.78 | 1.09 | 1.52 | 14.23 | 240.46 | -23.33 | 66.20 | 0.4213 | 846.9 | 804.4 | |
| 0.00 | 0.96 | 0.00 | 0.53 | 15.05 | 239.66 | -24.13 | 65.03 | 0.4374 | 668.0 | 538.0 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 15.44 | 239.54 | -24.25 | 64.29 | 0.4412 | 735.0 | 585.6 | |
| 0.00 | 1.91 | 0.00 | 1.06 | 16.05 | 239.43 | -24.36 | 63.11 | 0.4463 | 737.0 | 594.0 | |
| 0.00 | 1.13 | 0.00 | 0.62 | 15.83 | 239.32 | -24.47 | 63.65 | 0.4466 | 786.0 | 562.5 | |
| 0.00 | 0.87 | 0.00 | 0.48 | 16.06 | 238.88 | -24.91 | 63.53 | 0.4540 | 726.0 | 497.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
