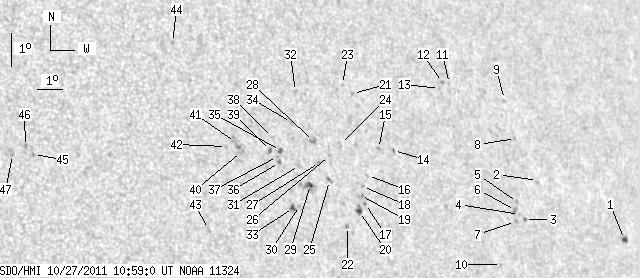

SDO HMI 2011-10-27 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.42 | 86.21 | 5.65 | 55.72 | 12.62 | 301.08 | 39.47 | 284.20 | 0.6401 | 154.2 | 213.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-10-27 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.08 | 3.04 | 1.63 | 2.38 | 9.81 | 312.65 | 51.05 | 278.71 | 0.7776 | -609.0 | -568.9 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 11.82 | 309.04 | 47.43 | 281.61 | 0.7383 | -551.0 | -549.8 | |
| 0.00 | 1.39 | 0.00 | 1.00 | 10.69 | 308.21 | 46.61 | 280.14 | 0.7278 | -623.0 | -636.0 | |
| 0.00 | 0.87 | 0.00 | 0.62 | 10.85 | 308.02 | 46.42 | 280.38 | 0.7256 | -601.0 | -568.8 | |
| 0.00 | 1.39 | 0.00 | 1.00 | 11.22 | 308.01 | 46.41 | 280.88 | 0.7258 | -825.0 | -654.0 | |
| 0.00 | 2.60 | 0.00 | 1.86 | 10.98 | 307.87 | 46.27 | 280.57 | 0.7240 | -725.0 | -591.1 | |
| 0.00 | 1.48 | 0.00 | 1.05 | 10.66 | 307.81 | 46.21 | 280.13 | 0.7229 | -567.0 | -613.8 | |
| 0.00 | 0.78 | 0.00 | 0.57 | 13.13 | 308.36 | 46.76 | 283.47 | 0.7318 | -707.0 | -535.9 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 14.33 | 308.18 | 46.57 | 285.13 | 0.7313 | -429.0 | -396.6 | |
| 0.00 | 1.22 | 0.00 | 0.85 | 9.41 | 306.97 | 45.37 | 278.45 | 0.7121 | -606.0 | -494.8 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 14.95 | 305.92 | 44.32 | 286.39 | 0.7059 | -579.0 | -509.2 | |
| 0.00 | 1.48 | 0.00 | 1.02 | 14.99 | 305.63 | 44.03 | 286.51 | 0.7025 | -640.0 | -584.2 | |
| 0.00 | 1.04 | 0.00 | 0.72 | 14.82 | 305.45 | 43.85 | 286.30 | 0.7002 | -638.0 | -551.1 | |
| 0.00 | 1.48 | 0.00 | 0.98 | 13.07 | 303.12 | 41.52 | 284.22 | 0.6685 | -594.0 | -521.8 | |
| 0.00 | 1.56 | 0.00 | 1.03 | 13.16 | 302.53 | 40.93 | 284.47 | 0.6611 | -513.0 | -428.2 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 12.38 | 301.93 | 40.33 | 283.40 | 0.6522 | 602.0 | 445.6 | |
| 0.00 | 1.13 | 0.00 | 0.73 | 11.55 | 301.70 | 40.10 | 282.16 | 0.6479 | 775.0 | 602.7 | |
| 0.00 | 0.87 | 0.00 | 0.56 | 12.06 | 301.67 | 40.07 | 282.96 | 0.6483 | 704.0 | 639.9 | |
| 0.00 | 2.17 | 0.00 | 1.41 | 11.79 | 301.55 | 39.94 | 282.57 | 0.6462 | 529.0 | 602.2 | |
| 2.26 | 4.08 | 1.46 | 2.63 | 11.32 | 301.43 | 39.82 | 281.86 | 0.6440 | 724.1 | 695.2 | |
| 0.00 | 1.74 | 0.00 | 1.14 | 14.87 | 301.84 | 40.24 | 287.20 | 0.6559 | 595.0 | 418.4 | |
| 0.00 | 1.74 | 0.00 | 1.11 | 10.90 | 300.88 | 39.28 | 281.28 | 0.6363 | 728.0 | 609.0 | |
| 0.00 | 1.13 | 0.00 | 0.74 | 15.16 | 301.50 | 39.90 | 287.73 | 0.6523 | 434.0 | 394.9 | |
| 0.00 | 2.17 | 0.00 | 1.40 | 13.39 | 301.05 | 39.45 | 285.14 | 0.6426 | 461.0 | 273.6 | |
| 0.00 | 2.52 | 0.00 | 1.61 | 12.31 | 300.41 | 38.81 | 283.59 | 0.6322 | 614.0 | 468.5 | |
| 0.00 | 1.04 | 0.00 | 0.67 | 13.06 | 300.55 | 38.95 | 284.73 | 0.6354 | 510.0 | 358.8 | |
| 0.00 | 1.04 | 0.00 | 0.66 | 12.87 | 300.12 | 38.52 | 284.53 | 0.6295 | 678.0 | 609.1 | |
| 0.00 | 3.73 | 0.00 | 2.37 | 13.51 | 300.00 | 38.40 | 285.57 | 0.6293 | 834.0 | 587.9 | |
| 1.65 | 8.85 | 1.04 | 5.58 | 12.23 | 299.66 | 38.05 | 283.61 | 0.6221 | 756.9 | 562.3 | |
| 0.00 | 0.87 | 0.00 | 0.54 | 11.62 | 299.13 | 37.53 | 282.75 | 0.6140 | 527.0 | 430.8 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 12.82 | 299.33 | 37.73 | 284.63 | 0.6190 | 738.0 | 699.0 | |
| 0.00 | 1.13 | 0.00 | 0.72 | 15.05 | 299.61 | 38.01 | 288.09 | 0.6278 | 615.0 | 483.7 | |
| 1.82 | 2.78 | 1.14 | 1.73 | 11.57 | 298.89 | 37.29 | 282.71 | 0.6107 | 850.6 | 783.6 | |
| 0.00 | 1.39 | 0.00 | 0.88 | 14.12 | 299.26 | 37.66 | 286.73 | 0.6210 | 653.0 | 527.1 | |
| 0.61 | 2.17 | 0.38 | 1.36 | 13.30 | 298.68 | 37.08 | 285.58 | 0.6114 | 769.1 | 664.4 | |
| 0.00 | 1.48 | 0.00 | 0.92 | 12.94 | 298.58 | 36.98 | 285.02 | 0.6093 | 882.0 | 725.9 | |
| 0.00 | 0.69 | 0.00 | 0.43 | 13.13 | 298.54 | 36.94 | 285.33 | 0.6091 | 846.0 | 715.9 | |
| 0.00 | 1.04 | 0.00 | 0.65 | 13.71 | 298.45 | 36.85 | 286.30 | 0.6093 | 591.0 | 468.6 | |
| 0.00 | 2.60 | 0.00 | 1.62 | 13.32 | 298.30 | 36.70 | 285.71 | 0.6064 | 868.0 | 769.1 | |
| 0.00 | 3.12 | 0.00 | 1.92 | 13.34 | 297.21 | 35.60 | 286.06 | 0.5917 | 729.0 | 686.6 | |
| 0.00 | 6.42 | 0.00 | 3.93 | 13.63 | 297.03 | 35.43 | 286.58 | 0.5900 | 707.0 | 677.1 | |
| 0.00 | 1.22 | 0.00 | 0.74 | 13.52 | 296.67 | 35.07 | 286.52 | 0.5849 | 766.0 | 621.3 | |
| 0.00 | 1.74 | 0.00 | 1.04 | 11.07 | 295.63 | 34.03 | 282.57 | 0.5649 | -549.0 | -470.5 | |
| 0.00 | 1.30 | 0.00 | 0.79 | 16.75 | 295.25 | 33.64 | 292.50 | 0.5764 | 695.0 | 530.7 | |
| 0.00 | 1.13 | 0.00 | 0.64 | 13.58 | 289.72 | 28.12 | 289.41 | 0.4877 | -861.0 | -730.1 | |
| 0.00 | 1.74 | 0.00 | 0.98 | 13.83 | 289.47 | 27.87 | 290.04 | 0.4852 | -658.0 | -567.5 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 13.61 | 289.00 | 27.39 | 289.85 | 0.4774 | -798.0 | -690.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
