SDO HMI 2011-10-27 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 12.15 | 0.71 | 6.70 | -20.47 | 257.05 | -4.55 | 170.16 | 0.4359 | 178.4 | -95.2 | |
|
previous
or next observation for the same group /

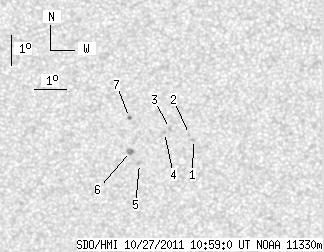

back to the solar disc SDO HMI 2011-10-27 10:59:00 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.86 | -20.38 | 258.36 | -3.25 | 172.90 | 0.4313 | 835.0 | 665.2 | |
| 0.00 | 1.13 | 0.00 | 0.62 | -20.22 | 258.23 | -3.37 | 172.58 | 0.4290 | 760.0 | 627.5 | |
| 0.00 | 1.56 | 0.00 | 0.86 | -20.02 | 257.60 | -4.00 | 171.14 | 0.4273 | 897.0 | 560.3 | |
| 0.00 | 0.87 | 0.00 | 0.48 | -20.15 | 257.44 | -4.16 | 170.83 | 0.4298 | 934.0 | 747.4 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -21.18 | 256.61 | -4.99 | 169.52 | 0.4480 | -777.0 | -606.8 | |
| 0.00 | 3.82 | 0.00 | 2.11 | -20.79 | 256.33 | -5.27 | 168.77 | 0.4427 | -1044.0 | -820.0 | |
| 1.30 | 1.39 | 0.71 | 0.76 | -19.67 | 256.34 | -5.26 | 168.24 | 0.4254 | -575.0 | -444.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
